Electrolux T5350 - Technical Data; Machine Dimensions Drawing

6
Service Manual
2 Technical data

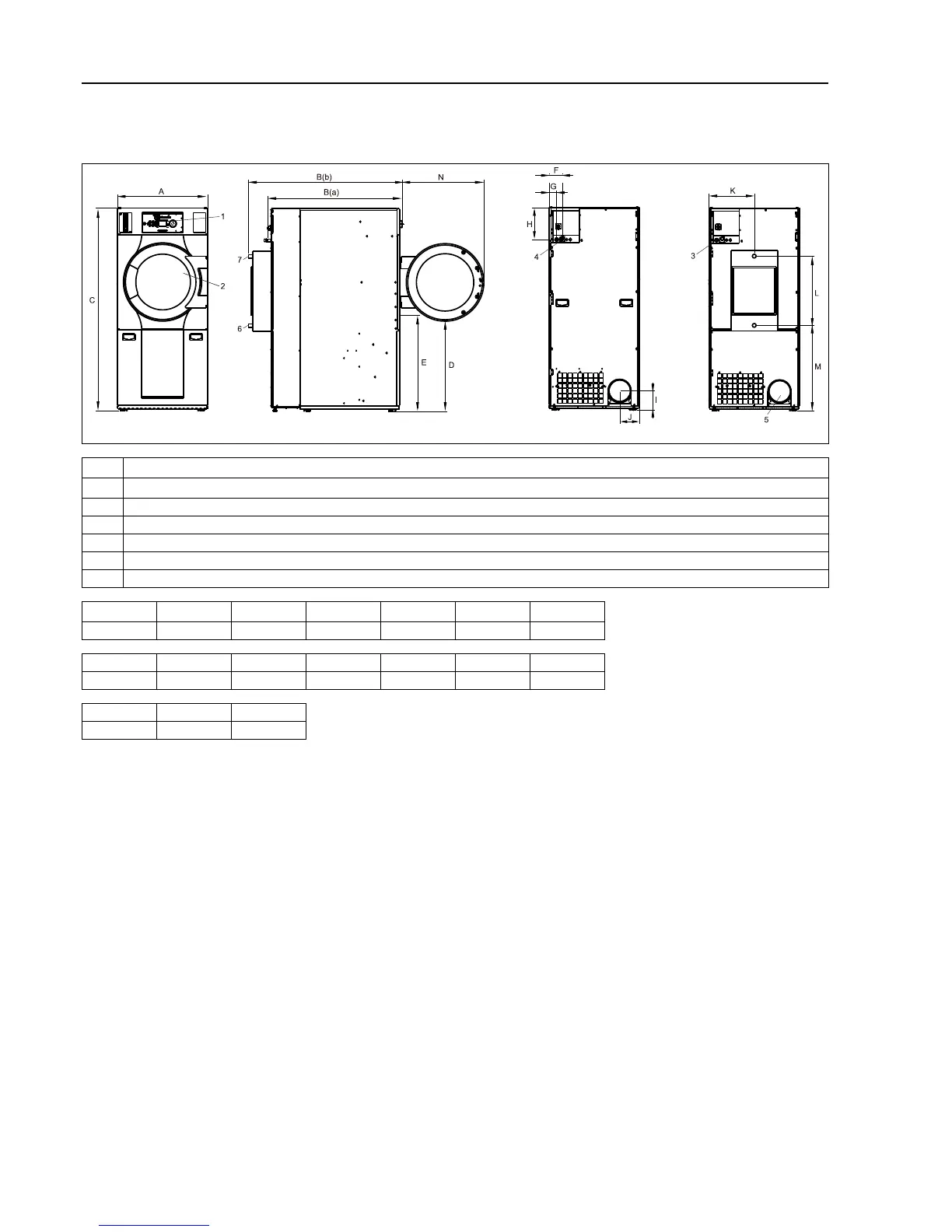

2.1 Drawing
fig.7696
1 Operating panel
2 Door opening, ⌀ 580 mm
3 Electrical connection
4 Gas connection
5 Exhaust connection
6 Steam: in
7
Steam: out
A B (a) B (b) C D E
mm
790 1177 1344 1770 785 840
F G H I J K
mm
108 66 278 171 172 395
L M
mm
605 747
