Electrolux T5350 - Motor Pulley Belt Replacement

30
Service Manual
7.5 Replacement of the belt around the motor pulley
On machines with reversing
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the motor cable (A).
Loosen the belt tensioner (B).
Loosen both of the belts (C).
Demount the motor module.

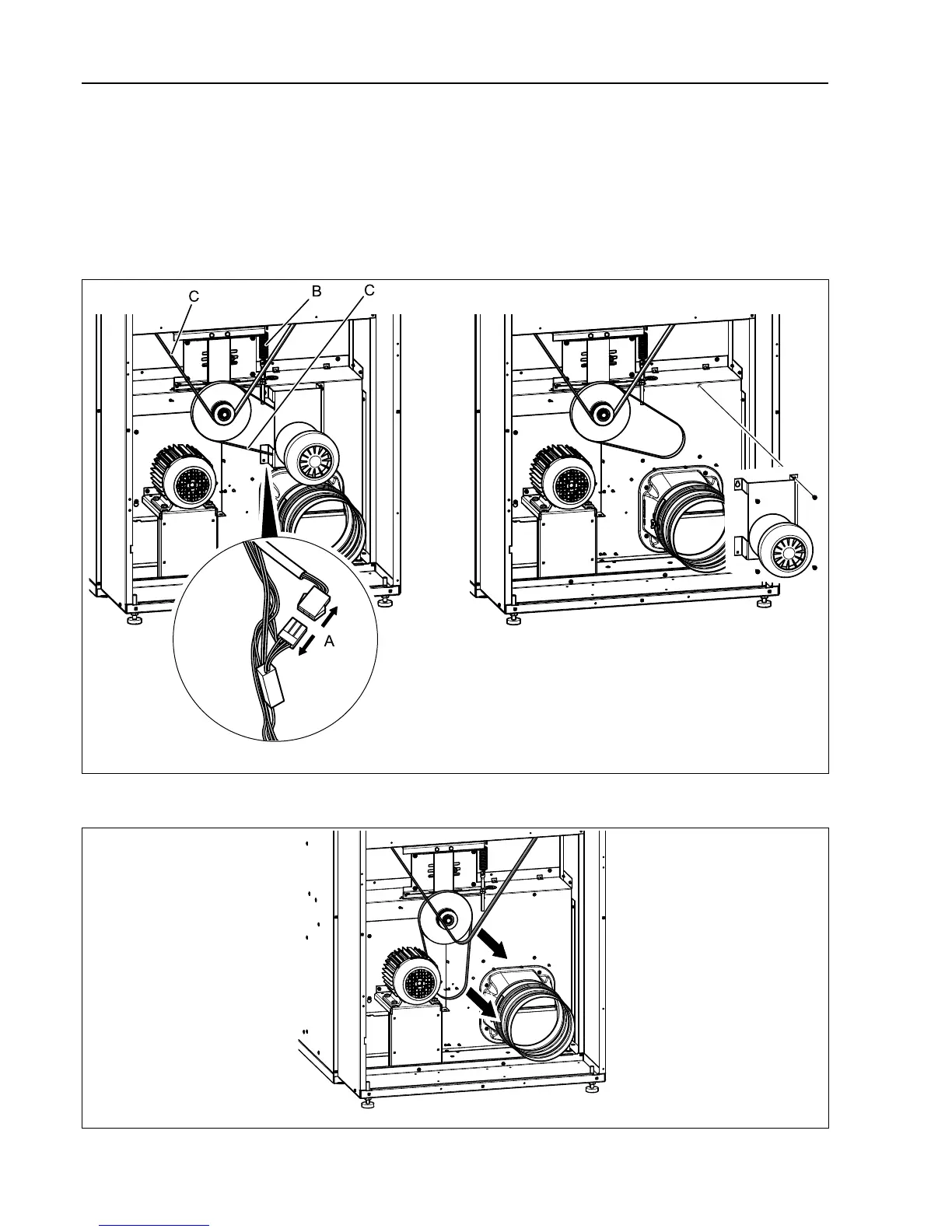

fig.7871
Remove the belt and put the new belt in position.
fig.7879
