Before remounting the motor it is important to lubricate the motor shaft with an anti-fretting paste (Antifret LAGF 3 /
0.6 or similar quality).

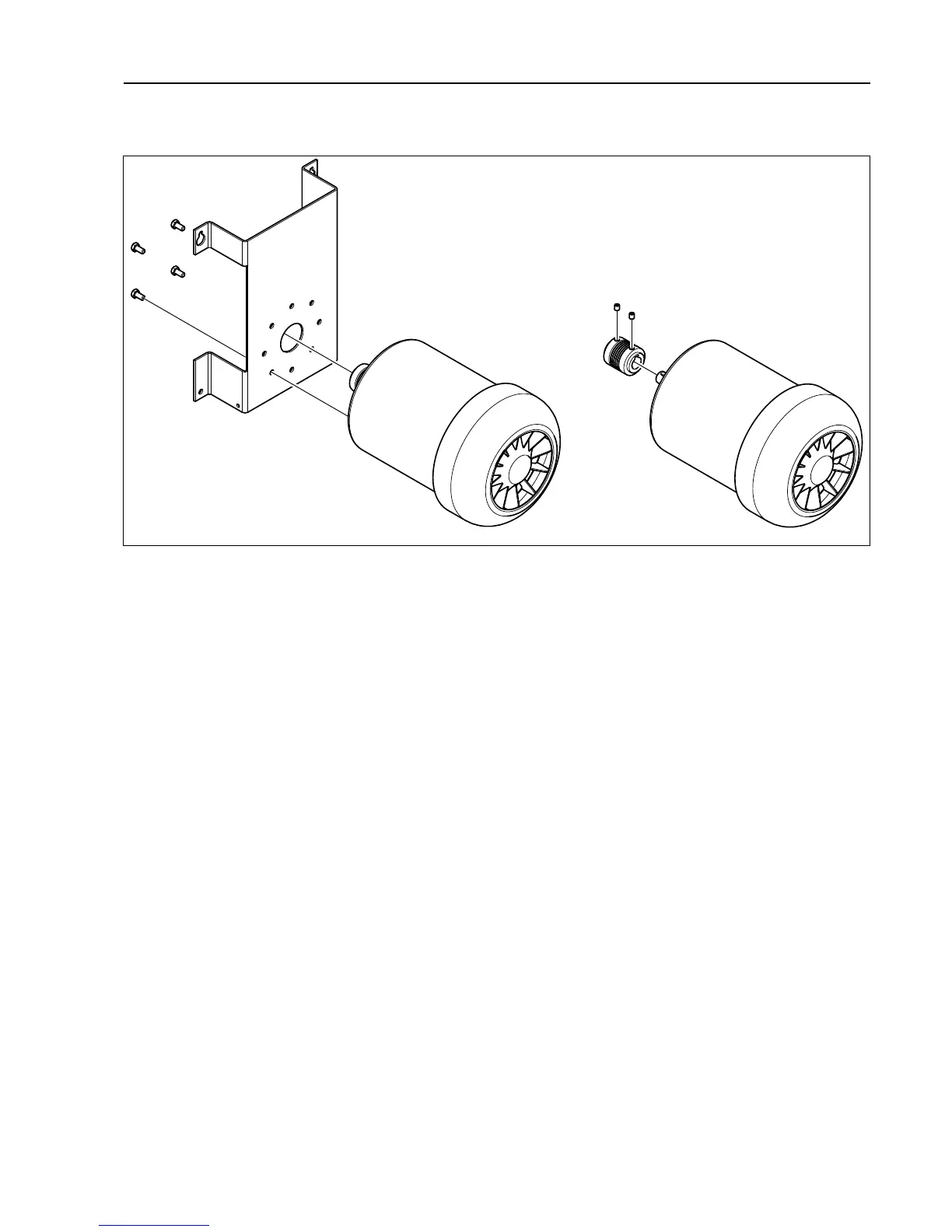

Remount the motor on the bracket. Tighten the screws (D) with tightening torque 3 Nm.
Mount the new motor pulley. Lubricate the two Allen screws with a screw protection product such as Omnifit Seal
40M or similar. Tighten the screws with tightening torque 3Nm.
Remount the motor module in the machine.
Fasten the belts and make sure the belts are in position. Fasten the belt tensioner and connect the motor cable.
Remount the rear panel.
