Electrolux T5350 - Gas Unit Converting Instructions

Service Manual
43

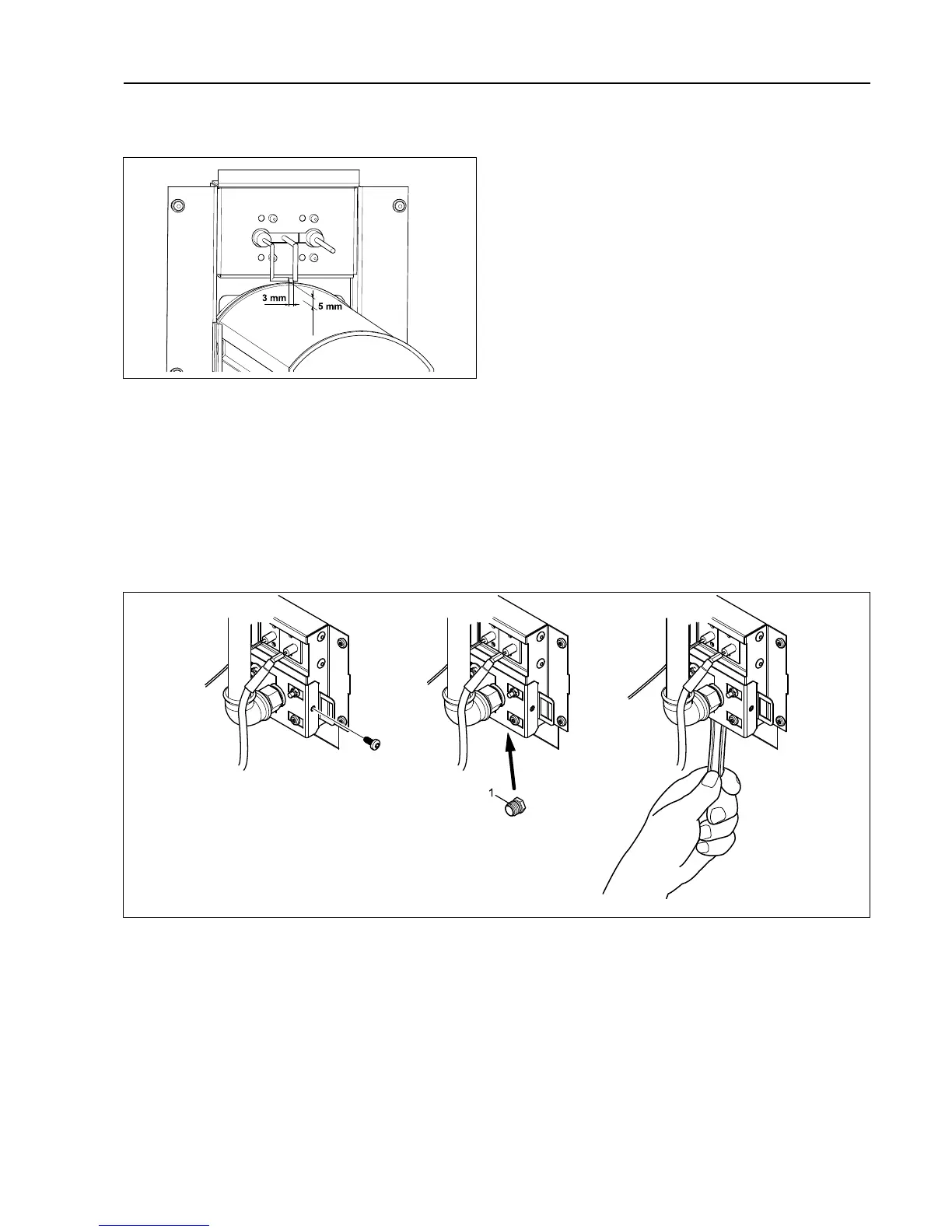

Adjusting ignition electrode
The distance from the ignition electrode to the gas burner must be 5 mm. The spark gap must be 3 mm.
9.6 Converting instructions
• Disconnect the power to the machine.
• Demount the back panel.
• Unscrew the screw to the locking panel. Pull out the locking panel to release the gas pipe.
• Remove the nozzle (1).
• Mount the new supplied nozzle.
• Push the pipe with the new nozzle back in position.
• Push the locking panel back in position and tighten the screw.
• Replace/mount the air reducing plate according to the table.
fig.7127A
