Electrolux T5350 - Drum; Drum Replacement

Service Manual
49
11 Drum
11.1 Replacement of drum
Disconnect the power to the machine.

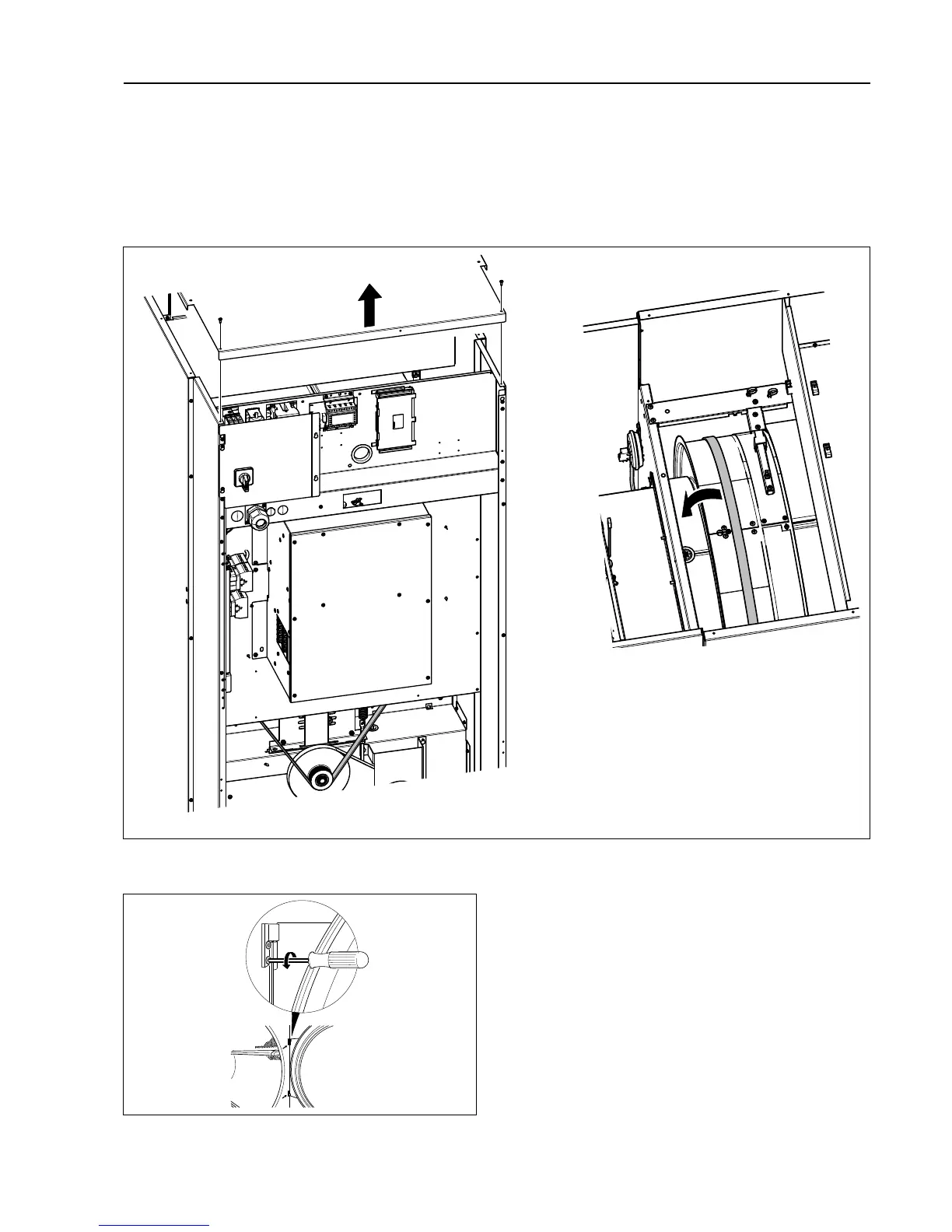

Demount the rear panel and the top panel.
Loosen the belt tensioner
Lift the drum belt off the drum and pull it backwards.
fig.7900
Demount the hinges and remove the door. Remove the upper hinge first.
