34
Service Manual
On machines without reversing
Disconnect the power to the machine.
Demount the rear panel.
Loosen the belt tensioner (B).
Loosen both of the belts (C).
Remove the split pin and the three spring washers (D). Pull off the pulley and mount the new pulley.
Remount the three spring washers and the split pin.

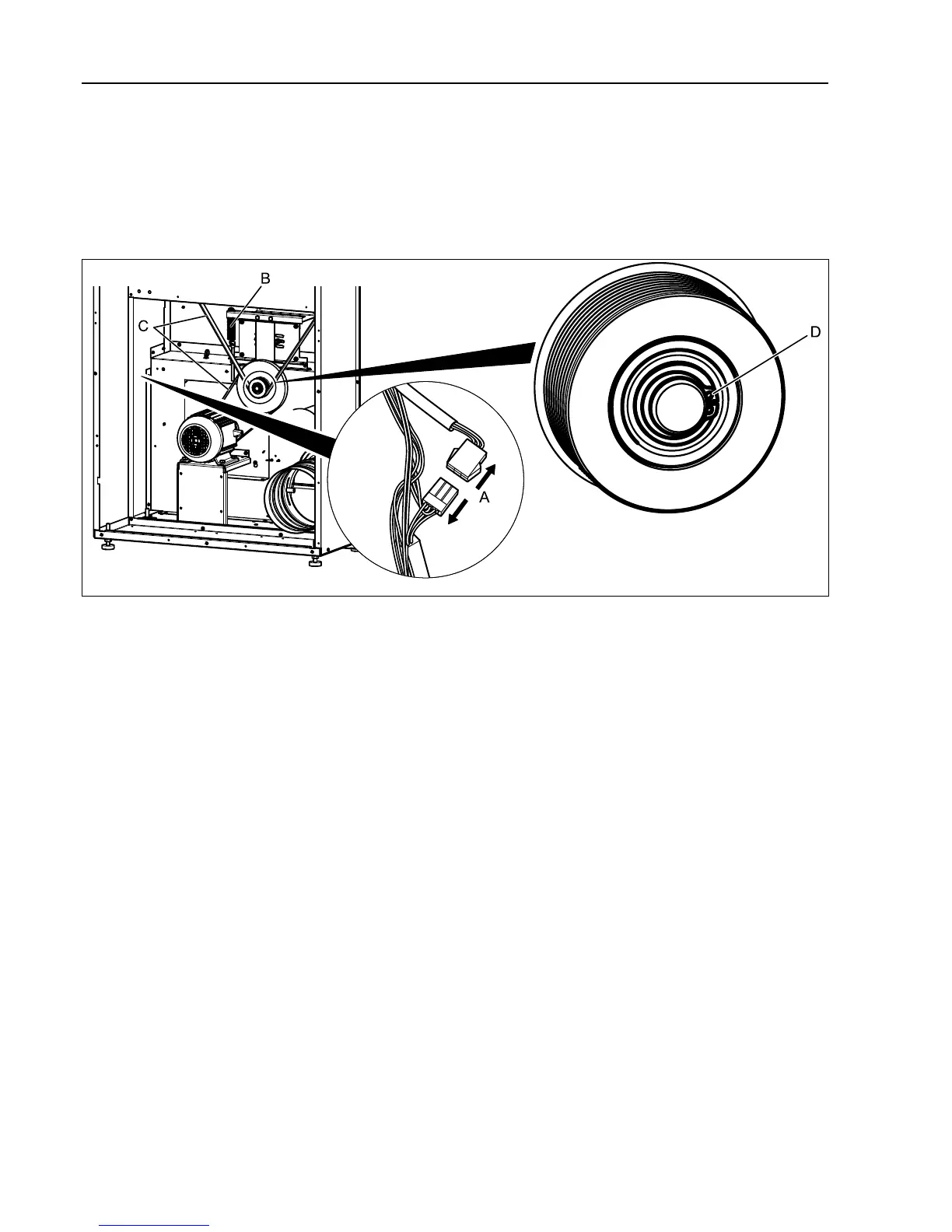

fig.7899
Fasten the belts and make sure the belts are in position. Mount the belt tensioner.
Remount the rear panel.
