Electrolux T5350 - Page 71

Service Manual
71

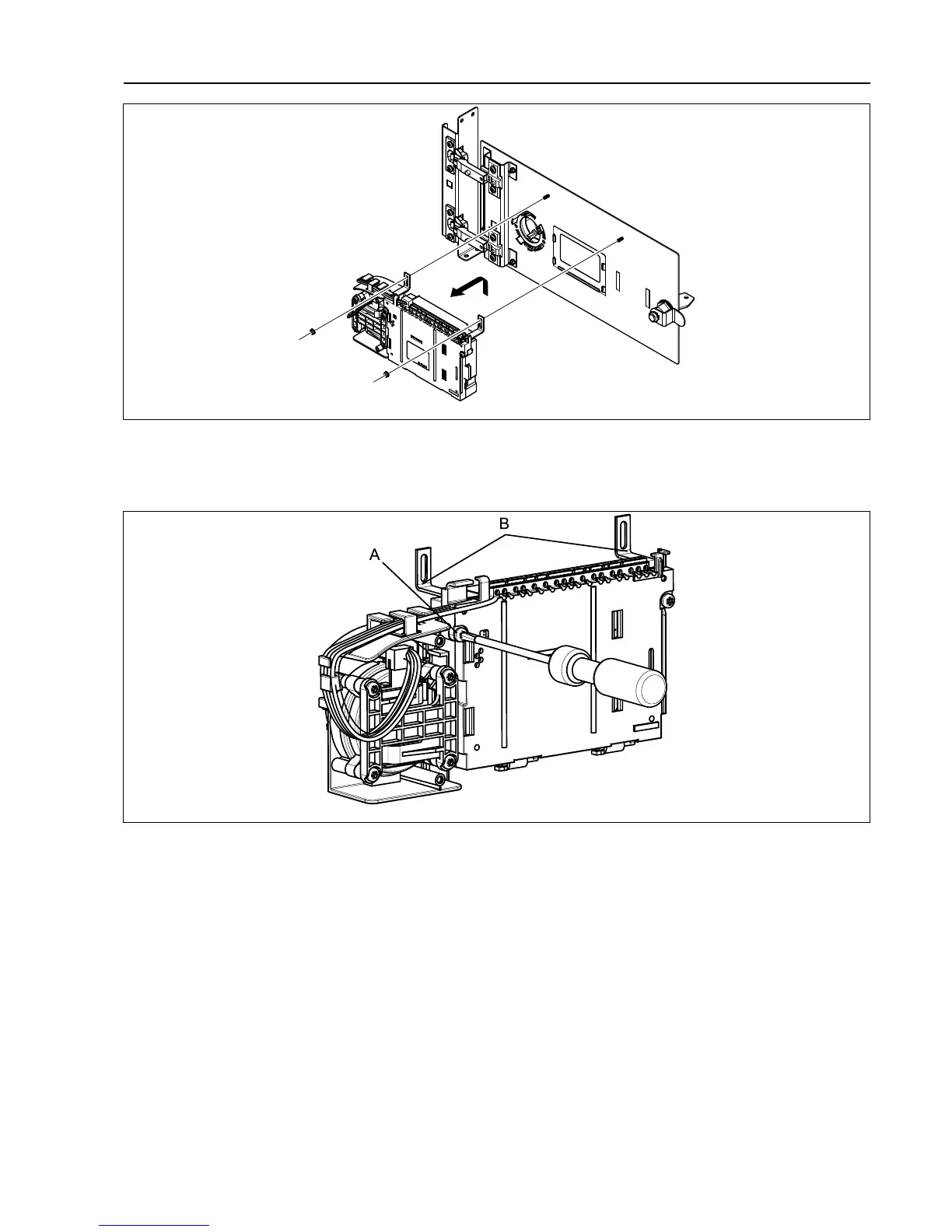

fig.7891
Demount the control knob unit from the control system CPU by unscrewing the screw (A) a bit (4–5 mm) until the con-
trol knob unit loosens.
Demount the two grounding brackets (B).
fig.7510
Mount the new control system CPU
Start by mounting the control knob unit on the control system CPU. Fasten the screw (A).
Mount the two grounding brackets (B) on the new control system CPU.
Mount the control system CPU in upper position. Insert the control knob unit and make sure that the guide pins (D)
are in position. Pull the control system CPU downwards. Fasten the nuts to the panel.
