Electrolux T5350 - Page 74

74
Service Manual
fig.7490

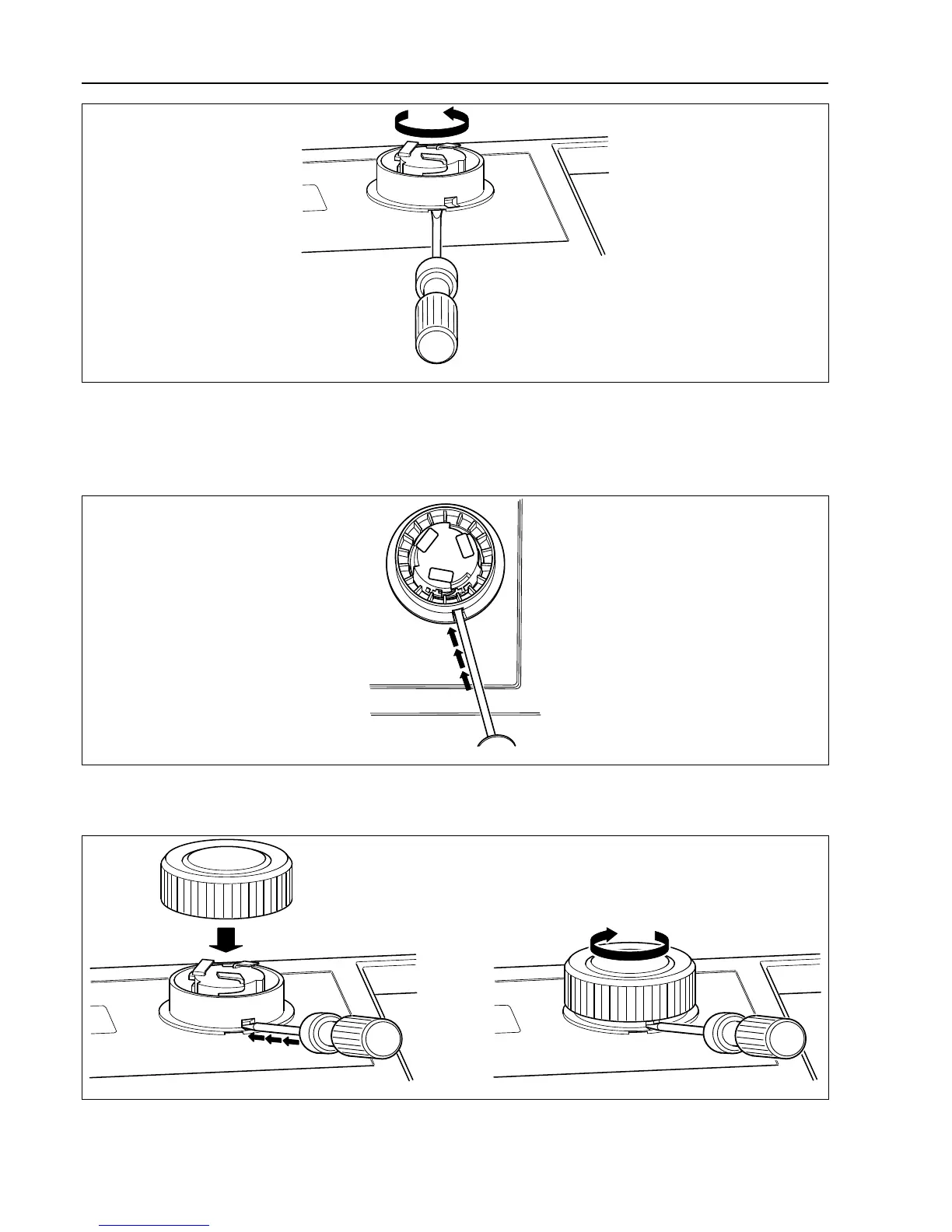

Mount the new cover ring and rotate it clockwise until it is in position.
Rotate the inner knob until the locking device is pointing downwards.
Insert the screwdriver and press the locking device.
fig.7494
Mount the new control knob on the inner knob. Continue to press with the screwdriver and turn the control knob
clockwise until it stops when it is in position.
fig.7495A
