Elenos ETG3500 - TCP;IP Connectors - Reserved; EIA485 Connector

19
2
6
3
1
5
4
7
8
SH1
SH2
5
9
4
8
3
7
2
6
1
Product description

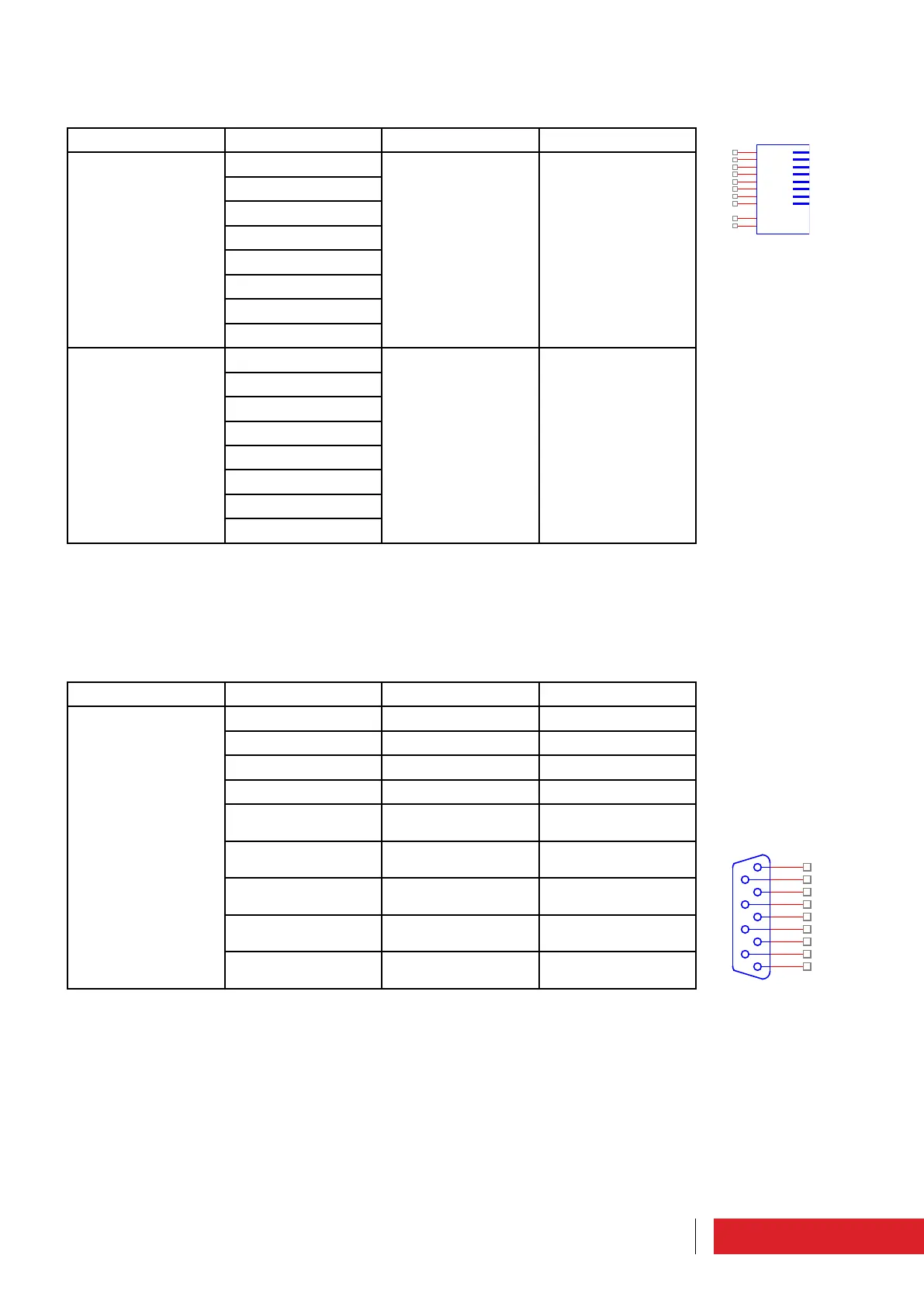

2.1.9 TCP/IP connectors - Reserved
N. 12 Rear panel (RJ48 type)
Connector Pin Meaning Notes
CN3 on board
TG2U2A899
1 ETHERNET interface
10Base-T or 100Base-
TX
2
3
4
5
6
7
8
CN2 on board
TG2U2A899
1 Reserved
2
3
4
5
6
7
8
2.1.10 EIA485 connector
N. 13 Rear panel (DB9 type - female)
This connector uses Com1, as the connector n. 6 (front). The two connectors can’t be
used simultaneously.
Connector Pin Meaning Notes
CN2 on board
TG2U1A899
1 Com1 TX+ EIA485/422
2 Com1 TX- EIA485/422
3 Com1 RX+ EIA485/422
4 Com1 RX- EIA485/422
5 Common ground Connected to the
frame
6 Common ground Connected to the
frame
7 Common ground Connected to the
frame
8 Common ground Connected to the
frame
9 Common ground Connected to the
frame
