Environment temperature
probe
PSUs temperature probes RF temperature probes
Instructions for use
3.1.5 View TX parameters 2
Display only screen.

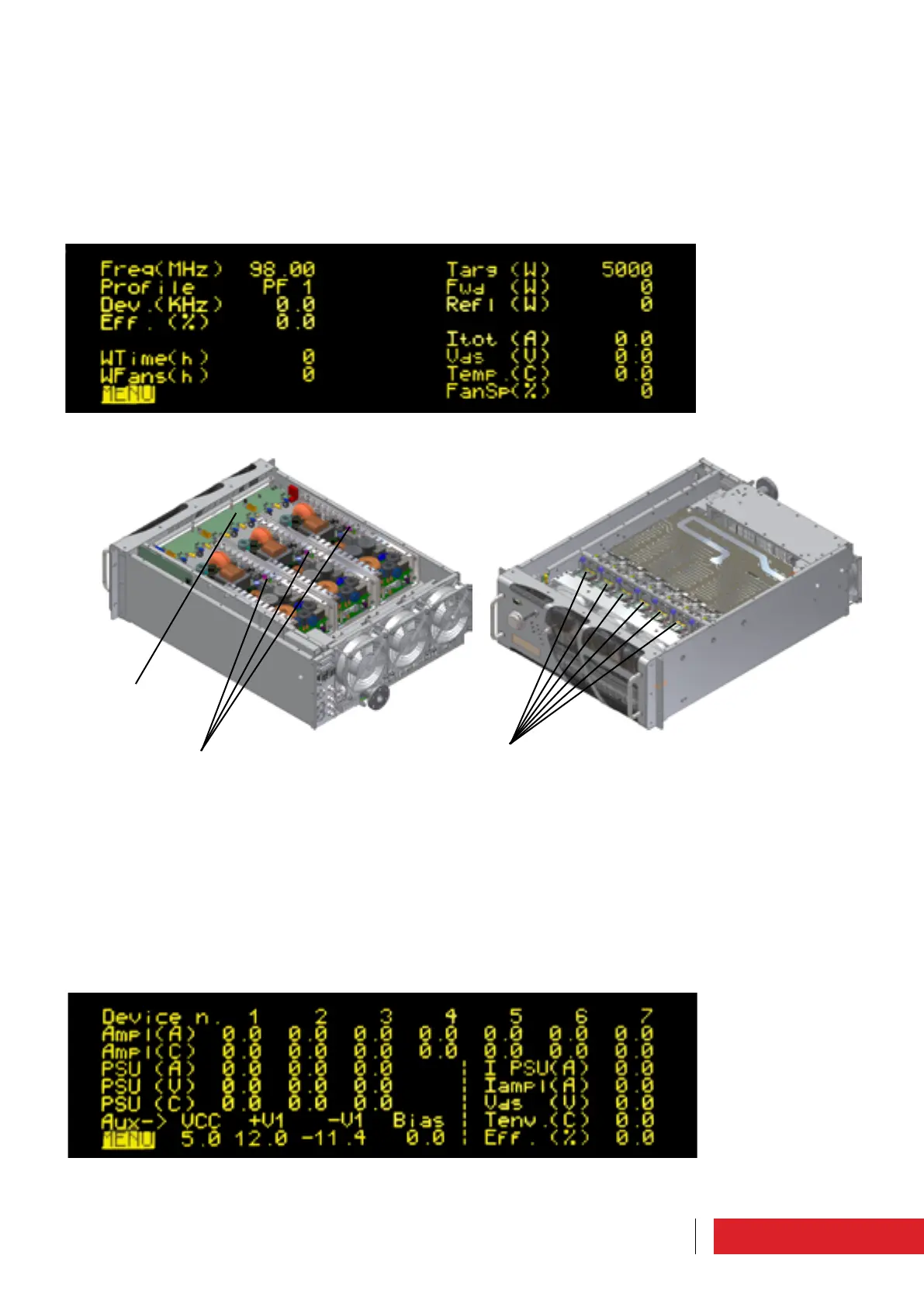

The parameters which can be monitored are as follows: current and temperature of the
amplifier modules, current, voltage and temperature of the power supplies, voltages
and auxiliary power supply polarization, sum of the power supply currents, sum of the
module currents, voltage, ambient temperature and efficiency.
3.1.4 View TX parameters 1
Display only screen.
The parameters which can be monitored are as follows: frequency, active profile num-
ber, deviation, efficiency, transmitter working hours, fan working hours, direct power
target, effective direct power value, reflected power, current, voltage, maximum tem-
perature (the following pictures show the probe position) and fan speed.
