3.4.3 Connection to exchange unit and/or audio matrix
This connection allows the transmitter to be used in a system which provides for the
exchange of a faulty transmitter with a spare one.

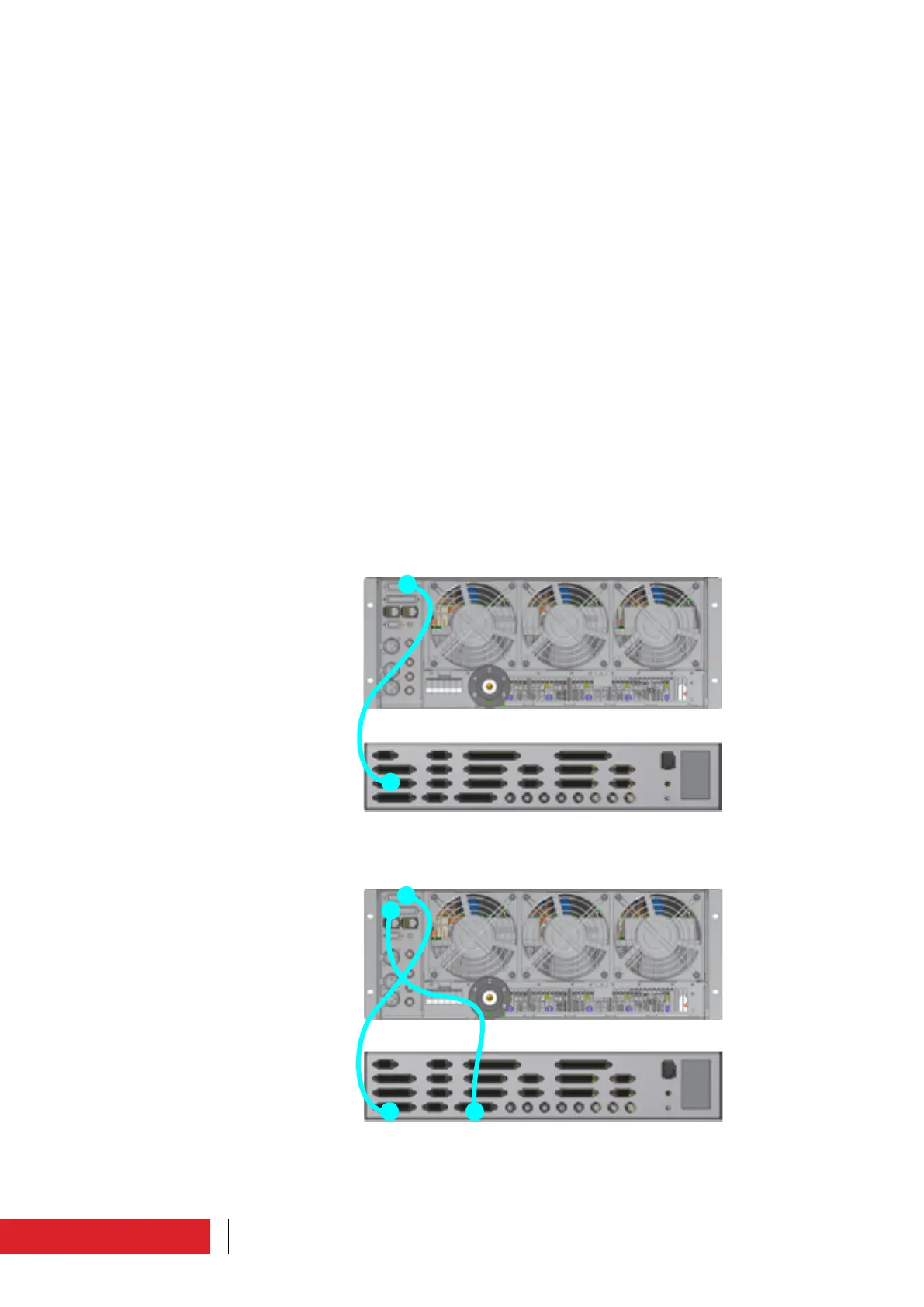

In order to connect to an N+1 exchange unit, if the equipment is not a spare, insert a
standard extension cable into a “TC/TS” connector, DB25, located on the rear panel of
the machine.
If the equipment is used as a spare, also provide an additional standard extension cable
to be inserted into the “PROFILES” connector, DB25, located on the rear panel of the
machine.
If the system has an audio matrix, this latter cable must be connected the matrix itself
and not to the exchange unit.
These cables are supplied with the exchange unit (Elenos code CAB0324-0).
The signal cables can also be connected when the equipment is working, exclu-
ding all RF cables.
For more information, please refer to the exchange unit manual.
