Faulty PXE transducer disks
50
SM/Transsonic_LC/1104/D © Elma GmbH & Co KG
Structure o
f
transducer system
with 2 PXE disks
(W 40)

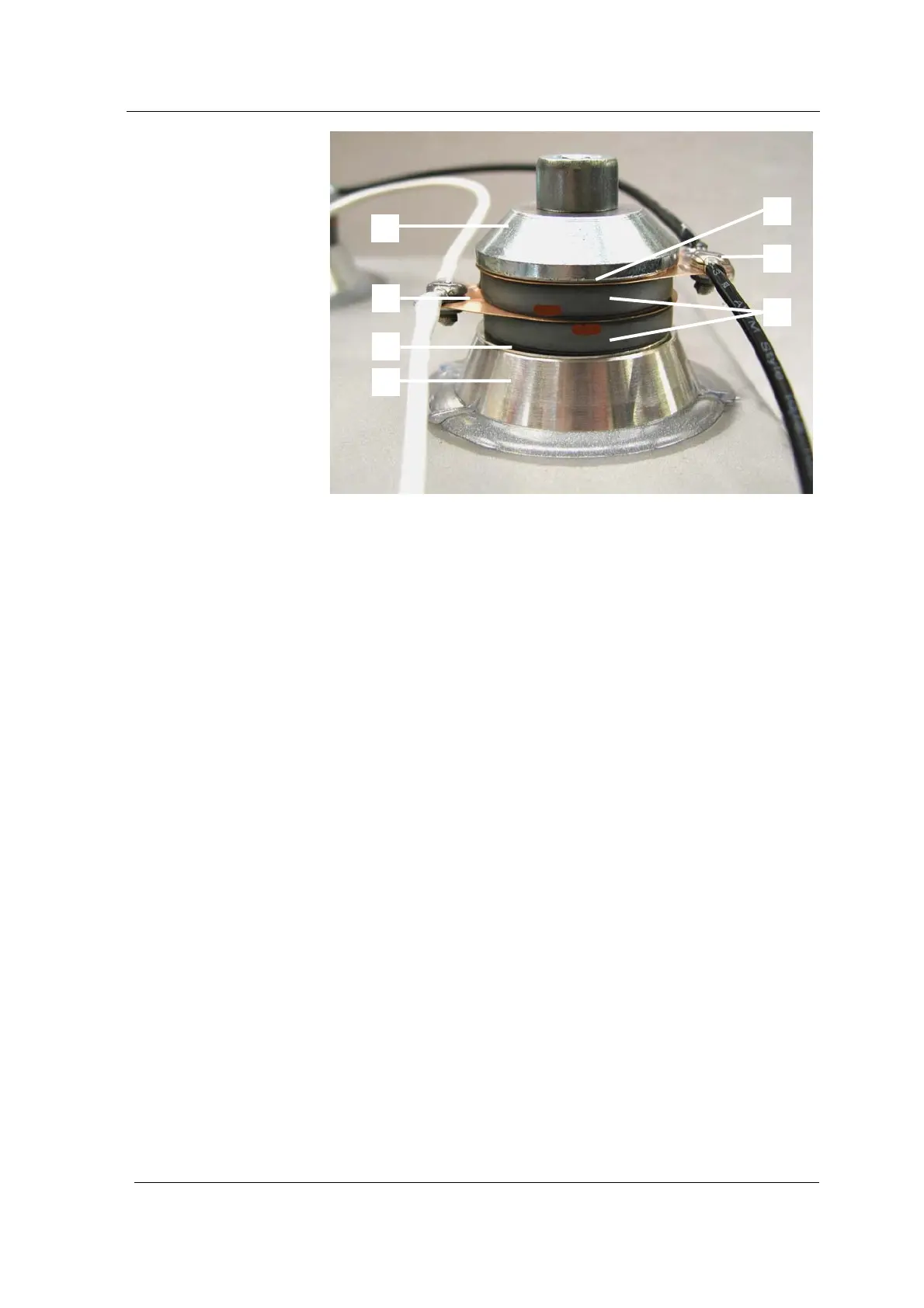

Illustration 10.1.4. Transducer system with 2 PXE transducer disks 40
kHz
Pressure piece (shape depending on frequency of the system)
Terminal lug MINUS connection
PXE transducer disk
Terminal lug PLUS connection
Aluminum washer
Aluminum coupling piece
D
C
B
F
A
E
E
A
B
C
D
E
F
