Faulty PXE transducer disks
© Elma GmbH & Co KG SM/Transsonic_LC/1104/D
51
W 35 / W 40 E 35
Fig 7
transducer system screw
pressure piece
Insulating duct
terminal lug
"-"
insulating
di k
Terminal lug "+"
PXE transducer disk
aluminum washer
coupling piece
PXE transducer disk
aluminum washer
M8
M10

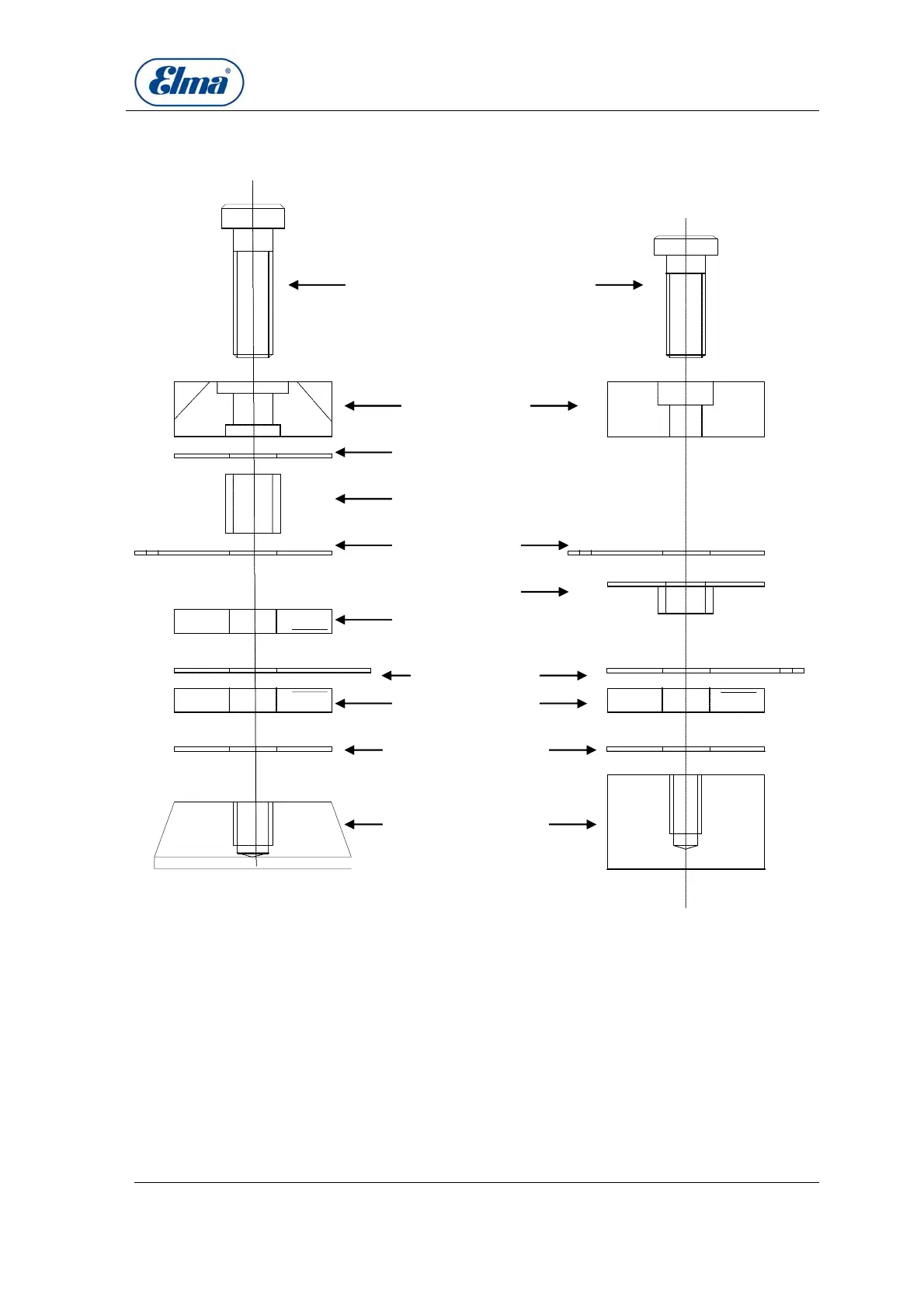

Illustration 10.1.5.
left: structure of 2-disk transducer system
right: structure of 1-disk transducer system
