PART NAMES
AND
FUNCTIONS
English
(1)
(7)
(2)
(3)
(4)
(5)
(6)

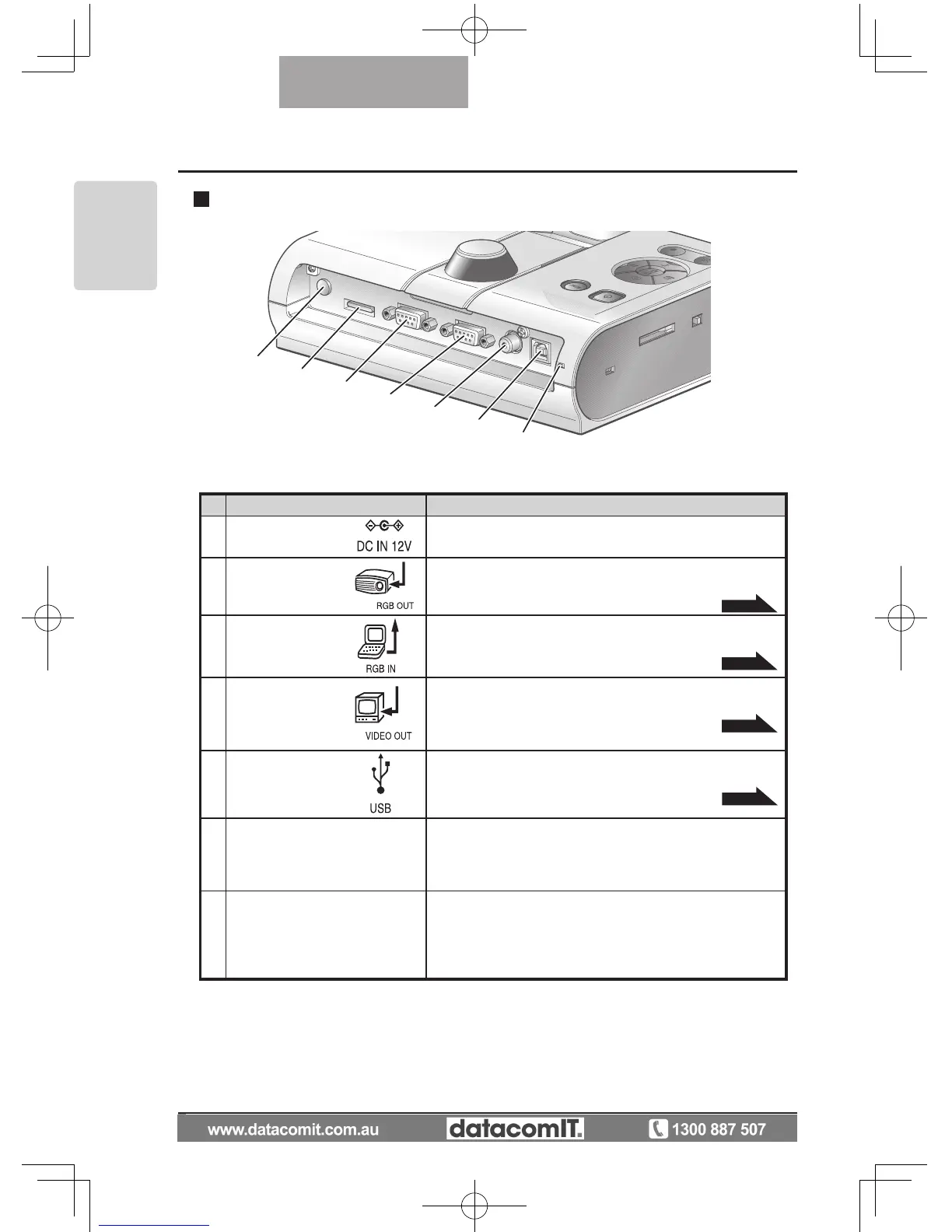

Name Function
(1) DC IN 12V
(Power Socket)
Plug-in for the AC adapter.
(2) RGB OUT
(Analog RGB
Output Terminal)
To output analog video signal to a projector, a PC moni-
tor, or other RGB input device.
P.30
(3) RGB IN
(Analog RGB
Input Terminal)
To output the image input to this terminal when [PC] is
selected by Image select button.
P.30
(4) VIDEO OUT
(Composite
Video Output
Terminal)
To output images from the RCA pin-jack terminal to the
NTSC/PAL-system monitor (e.g., TV monitor).
P.31
(5) USB
(2.0 Compliant)
To transfer image or control the main unit using the soft-
ware contained in the supplied Image Mate CD-ROM
by connecting with the PC.
P.42
(6) RESOLUTION
(Change Resolution Switch)
To change the resolution of the output analog image.
SXGA: 1280×1024
WXGA: 1280×800
XGA: 1024×768
(7) RECORDER
(Recorder Terminal)
Terminal to connect the optional desktop recorder via a
dedicated cable. By connecting to the desktop record-
er, you can record camera images from this device.
Refer to the manual for the optional desktop recorder
for more details.
Rear panel
