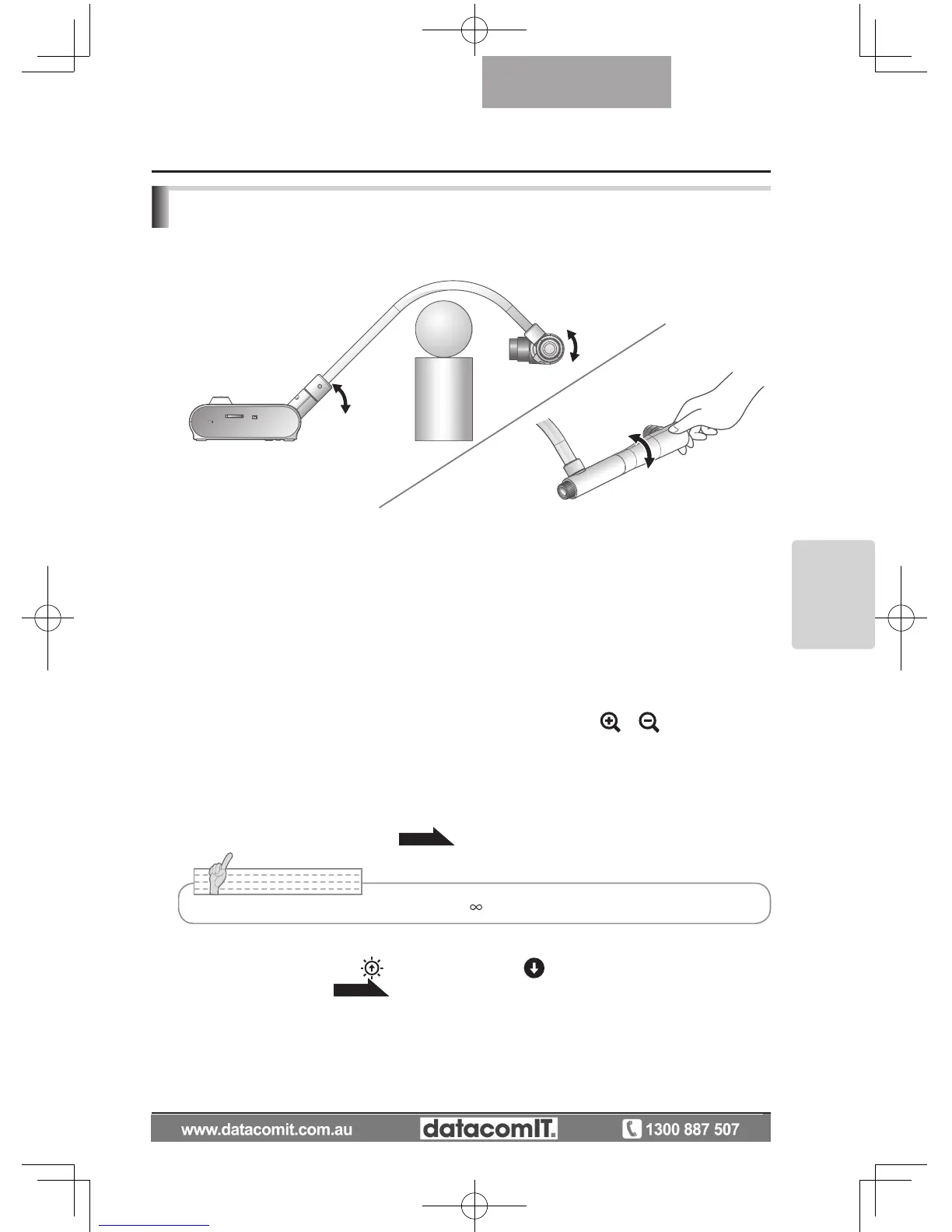

Shooting a 3-D object
By adjusting the angle of the camera column and the camera head, a 3-D object can be shot
from the side.
Adjust
Adjust
Adjust
n Setting the main unit
Connect the main unit to a projector or a PC monitor, and then turn on the power for the
main unit. Adjust the angle of the camera column and the camera head as shown in the
above figure to shoot the 3-D object.
n Adjusting the size
Adjust the zoom dial on the main unit or the zoom buttons [
/
] on the remote
control so that the part of the object you want to shoot fits the screen size.
n Adjusting the focus
Press the [AF] button on the main unit or on the remote control to focus the camera on the
object. In cases where the object cannot be brought into focus, select [Focus] from the
OSD and use [Manual] to focus.
P.50
n Adjusting the brightness
Press the [BRIGHTNESS
] and [BRIGHTNESS ] buttons on the main unit to adjust
the image brightness.
P.53
n Turning the illumination lamp ON/OFF
Move the illumination lamp switch on the main unit to the left/right to turn it ON/OFF.
N o t e
• The focus can be achieved from 50mm - .
