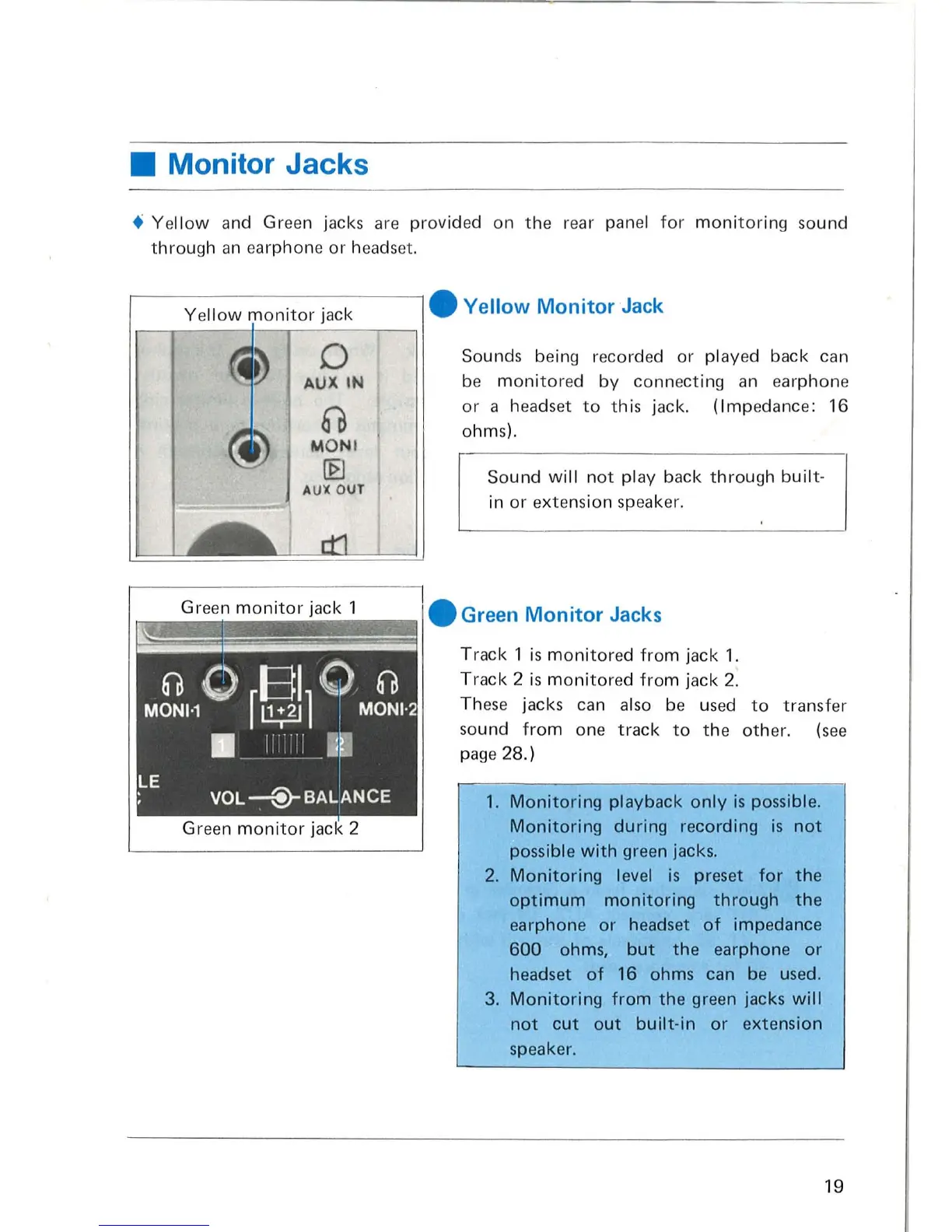

Elmo ST-600D - Monitor Jacks

• Monitor Jacks
• Yell ow and Gr ee n jacks are provided on the r ea r panel for monitoring sound
through an earphone or headset .
o
AUX IN
n
MONt
~
A Ul< OUT
• Yellow Monitor Jack
Sounds being recorded or play ed back can
be monitored by connecting an e arphon e
or a h ea dset to this jack. (Imp edance: 16
ohms).
Sound
will not play back through built·
in or extension speaker.
I
Green monitor jac .... k ... 1 _.,-- __ • Green Monitor Jacks
Tr ack 1 is monitored from jack 1.
Track 2 is monitored from jack 2.
Th ese jacks can also be used to transfer
sound
from one track to the other . ( see
page 28.)
1.
Monitoring playback only is possible.
Monitoring during recording is not
possible with green jacks.
2. Monitoring level is preset for the
optimum monitoring through the
e arphon e or headset of impedance
600 ohms, but the earphone or
headset of 16 ohms can be used.
3.
Monitoring from the green jacks will
not cut out built -in or extension
sp eaker.
19
