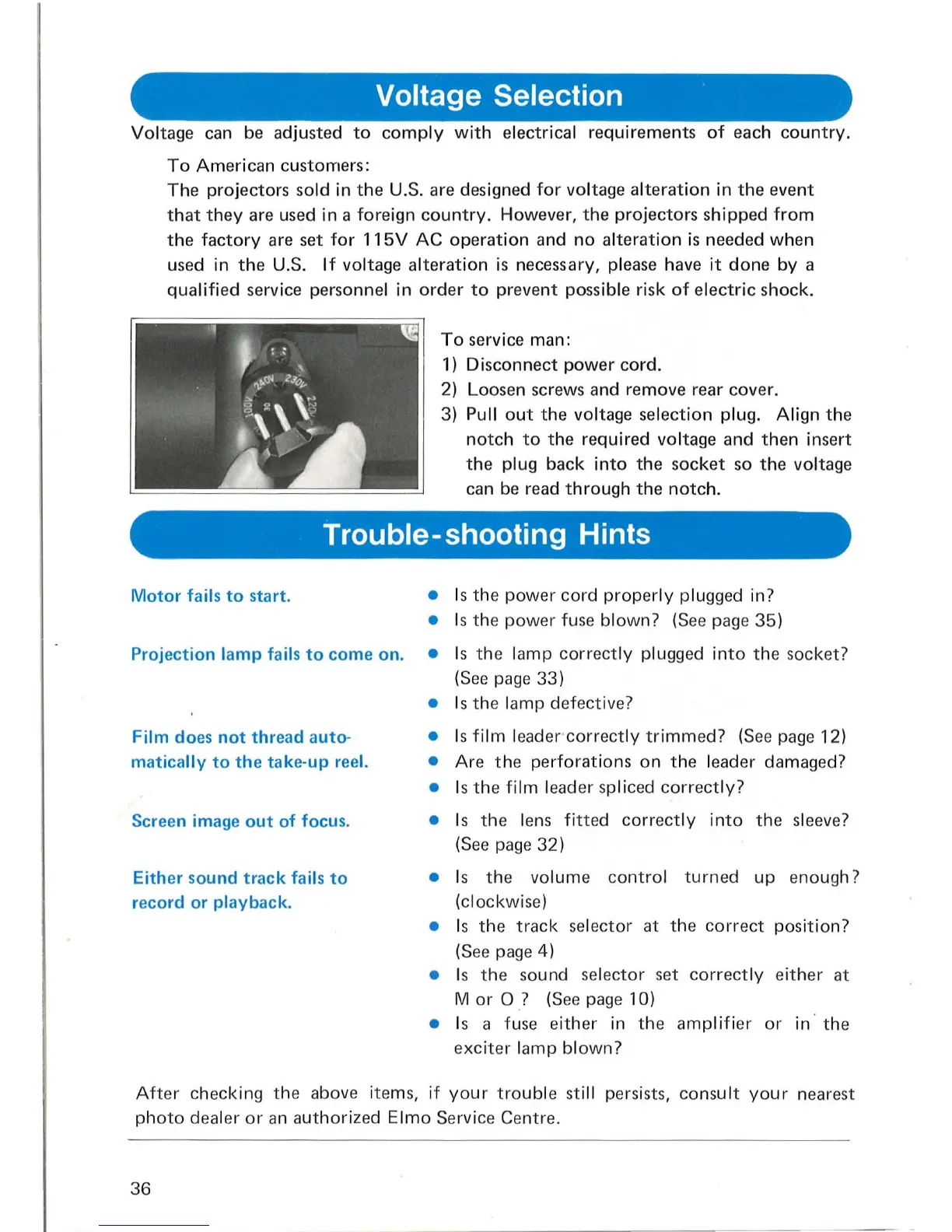

Elmo ST-600D - Voltage Selection; Trouble-Shooting Hints

Voltage Selection
Voltage can be adjusted to comply with electrical requirements of each country.
To American customers:
The projectors sold in the U.S. are designed for voltage alteration in the event
that they are used in a foreign country. However, the projectors shipped from
the factory are set for 115V AC operation and no alteration is needed when
used in the U.S. If voltage a lteration is necessary, please have it done by a
qualified service personnel in
order to prevent possible risk of electric shock.
To service man:
1) Disconnect power cord.
2) Loosen screws and remove rear cover.
3)
Pull out the voltage selection plug. Align the
notch to the required voltage and then insert
the plug back into the socket so the voltage
can be read
through the notch .
Trouble-shooting Hints
Motor fails to start. • Is the power cord properly plugged in?
• Is the power fuse blown? (See page 35)
Projection lamp fails to come on. • Is the l amp correctly plugged into the socket?
(S ee page 33)
Film does not thread auto-
matically to the take-up reel.
Screen image out of focus .
Either sound track fails to
record or playback .
• Is the l amp defective?
• Is film leader correctly tr imm ed? (S ee page 12)
• Are the perforations on the l eader damaged?
• Is the film l eader spliced correctly?
• Is the lens fitted correctly into the sleeve?
(S ee page 32)
• Is the volume control turned up enough?
(clockwise)
• Is the track selector at the correct position?
(S ee page 4)
• Is the sound sel ector set correct ly either at
M or O? (S ee page 10)
• Is a fuse either in the amp lifi er or in ' the
exc it er lamp blown?
After checking the above items, if your troub le still persists, consult your nearest
photo dealer or an aut h or ized Elmo Service Centre.
