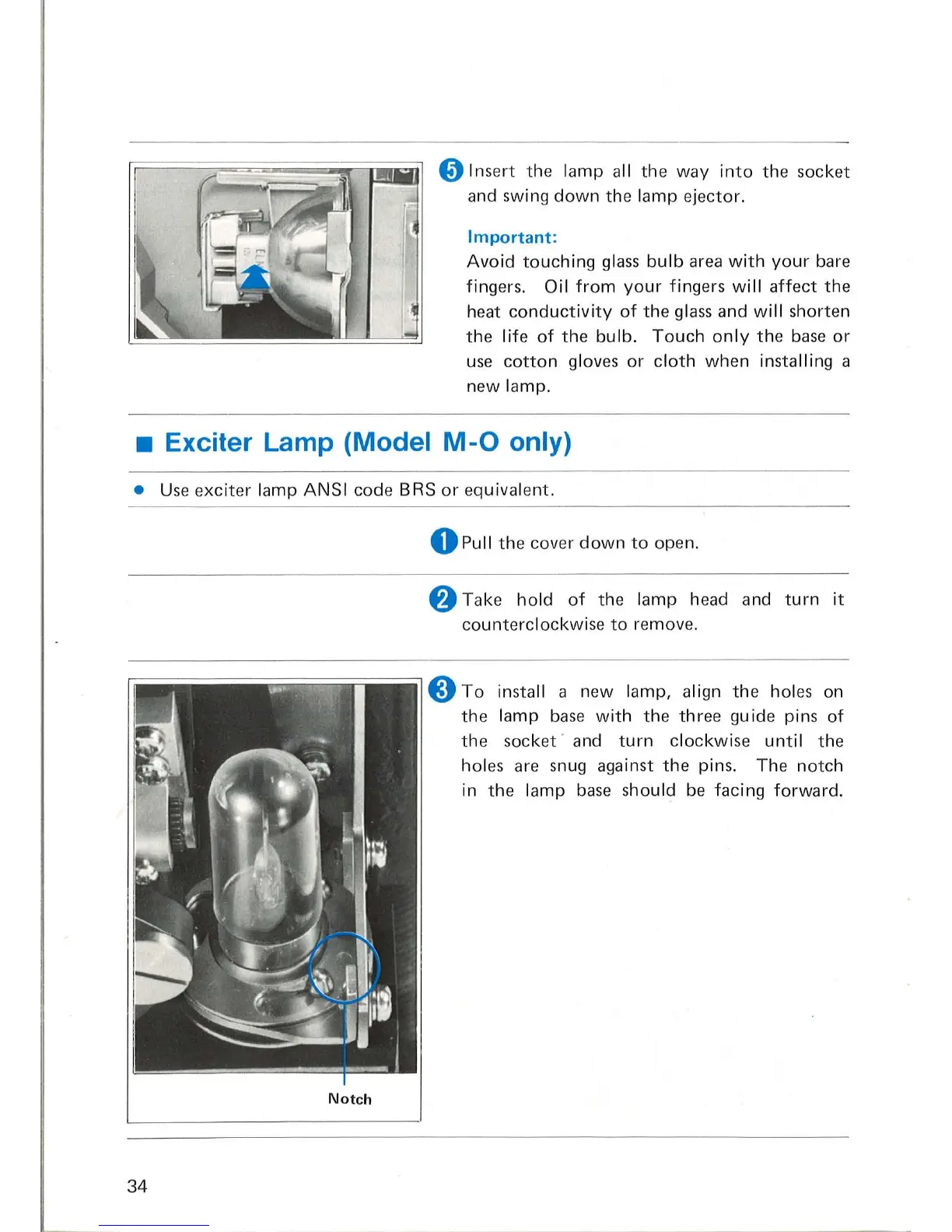

Elmo ST-600D - Exciter Lamp (Model M-O Only)

o Insert the lamp all the way int o the socket
and swing
down the la mp ej ecto r.
Important:
Avoid touching glass bulb ar ea with you r bare
fingers.
Oil from your fingers will affect the
heat
conductivity of the gl ass and will shorten
the I if e of the bu lb. Touch only the base or
use cotto n glov es or cloth when insta llin g a
new
la mp .
• Exciter Lamp (Model M-O only)
• U se exc it er la mp ANSI code BRS or equ ivalent .
O Pul1 the cove r down to open.
8 Take hold of the lamp h ead a nd t urn it
co unt ercl ockw i se to remove.
riIiiiii ______ ;;;.r;;:::;o;;;~ .. =- __ 0 To in sta ll a new lamp, ali gn the holes on
Notch
34
the lamp base with the three guide pins of
the socket ' a nd turn c lockwis e until the
holes are snug aga inst the pins. The not ch
in the
lamp base should be facing forw ard.
