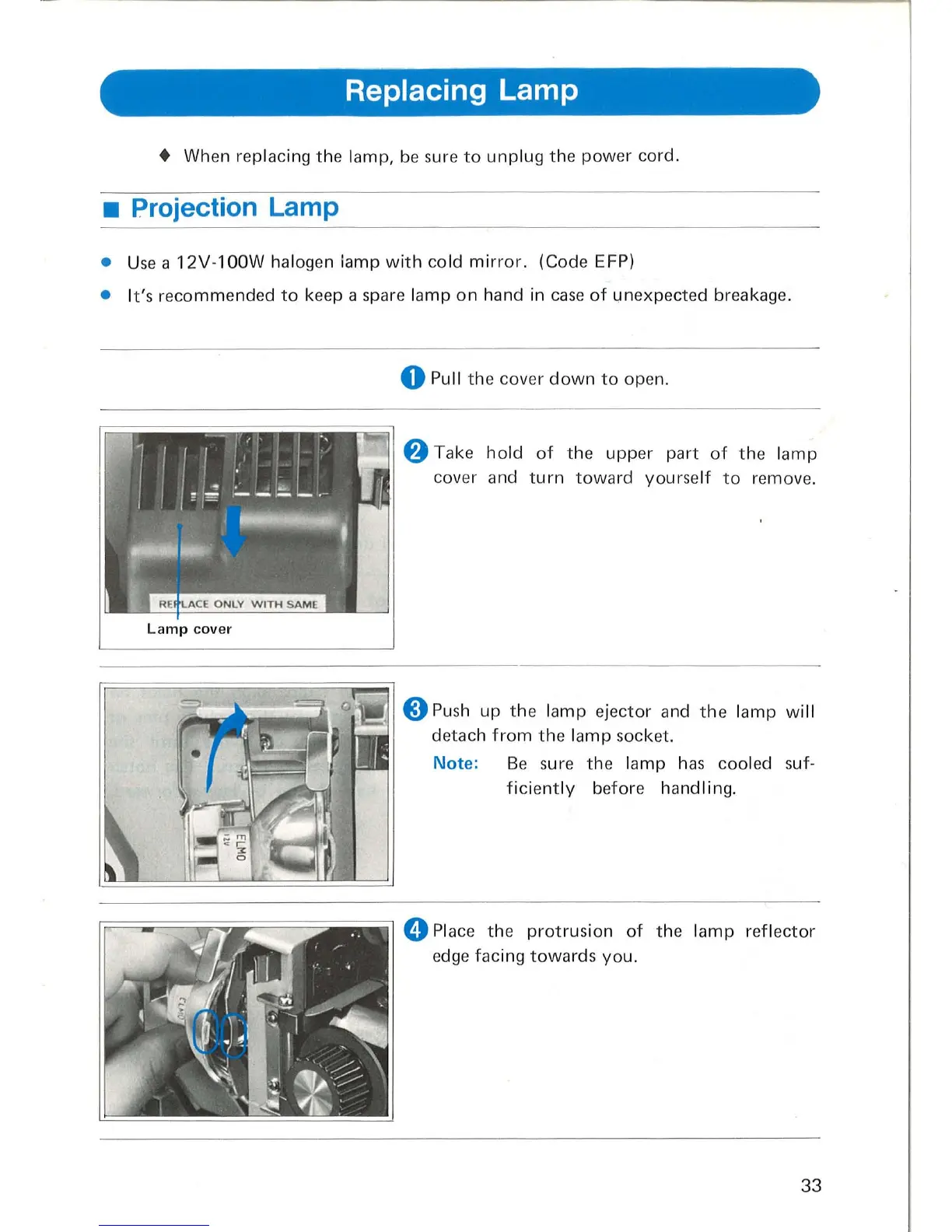

Replacing Lamp
• When r ep l ac ing the la mp, be s ur e to unplu g the power cord .
• Projection Lamp
• Use a 12V - l00W halogen lamp with cold mirror . (Cod e EFP)
•
It's r eco mm e nded to keep a spare la mp on hand in case of unexpect ed br eakage.
Lamp cover
o Pull the cove r down to open .
8 T ake hold of the upper part of the la mp
cover and t urn towa rd yourself to remove.
o Push up the la mp ej ecto r and t he lamp will
d etac h from the lamp soc ket .
Note: Be s ur e the la mp has cooled suf-
ficie ntly be for e handling .
r;:o== -= =::::;O;;;F;;; _ === :::::iiiIii iiiiiiiiii iiiiiiiiiiill 0 Pl ace the protrusion of the la mp refl ecto r
e dg e f ac ing towards you.
33
