ELTRA CS800 User Manual

Operating the machine
10
1.5 Finger adjustment

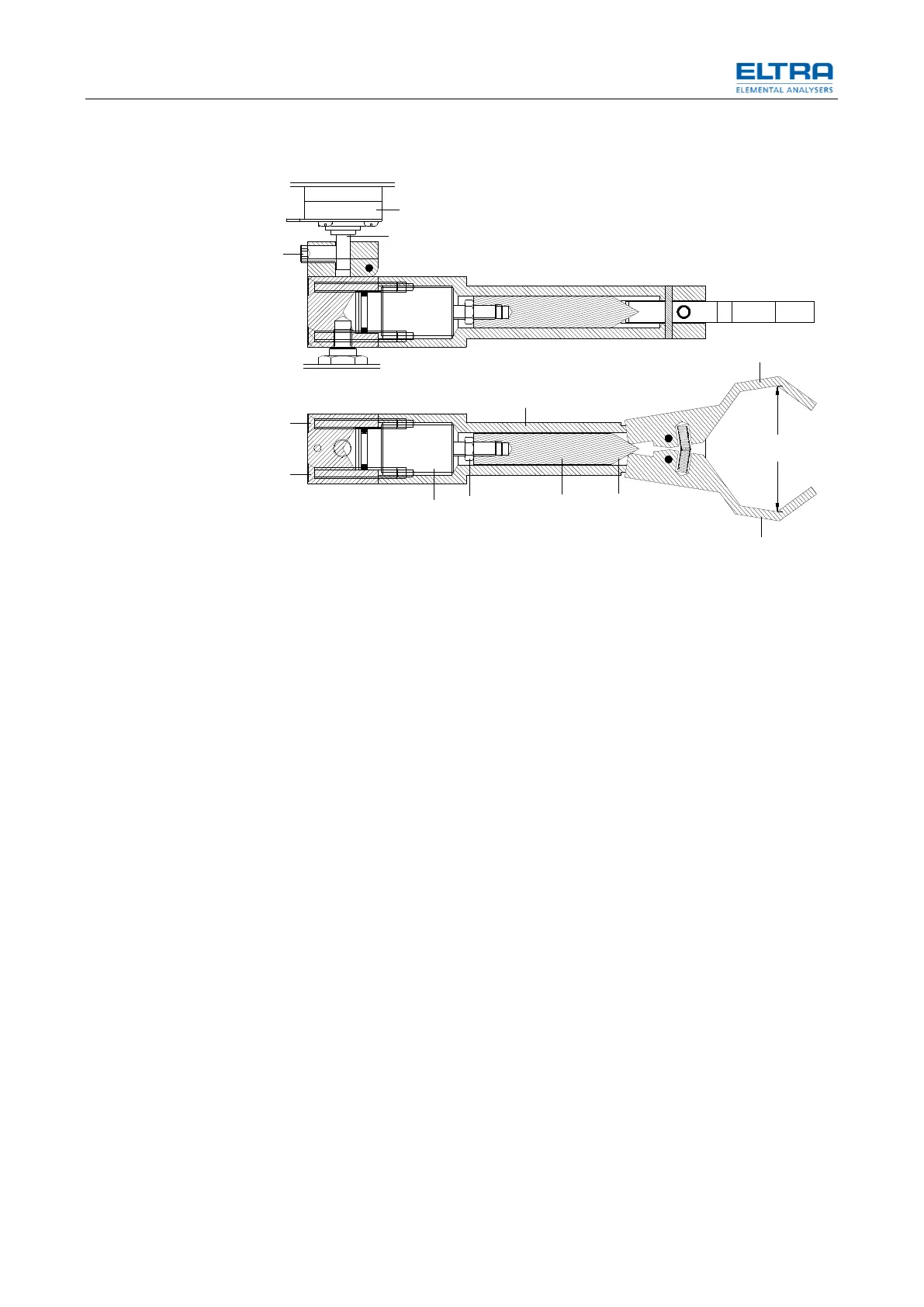

Fig. 9: Finger adjustment
The maximum distance inside the fingers (1) should be about 36 mm.
For adjusting:
• Loose the screw (2).
• Move the assembly (E) down to take it off the shaft (9) of the motor resp. off
the gear box (10).
• Unscrew the four screws (3).
• Remove the piston (4) with the plunger (5).
• Loose the nut (6).
• Screw the plunger (5) to the piston (4) clockwise for making the finger (1)
distance bigger.
• Fix the nut (6) again.
• Unscrew the plunger (5) from the piston (4) (counter clockwise) for reducing
the distance between the fingers (1).
• Fix the nut (6) again.
• Make sure that the plunger (5) is clean.
• Make sure that also the inside surface of the arm (8) is clean from dust,
grease etc.
3
3
5
7
4
8
2
9
10
1
1
E
36
6
