ELTRA CS800 User Manual

Operating the machine
19
5. The arm goes first to the home position and then it turns back to the pick-up
position
6. Fingers down.
1.15 Crucible position on the platform

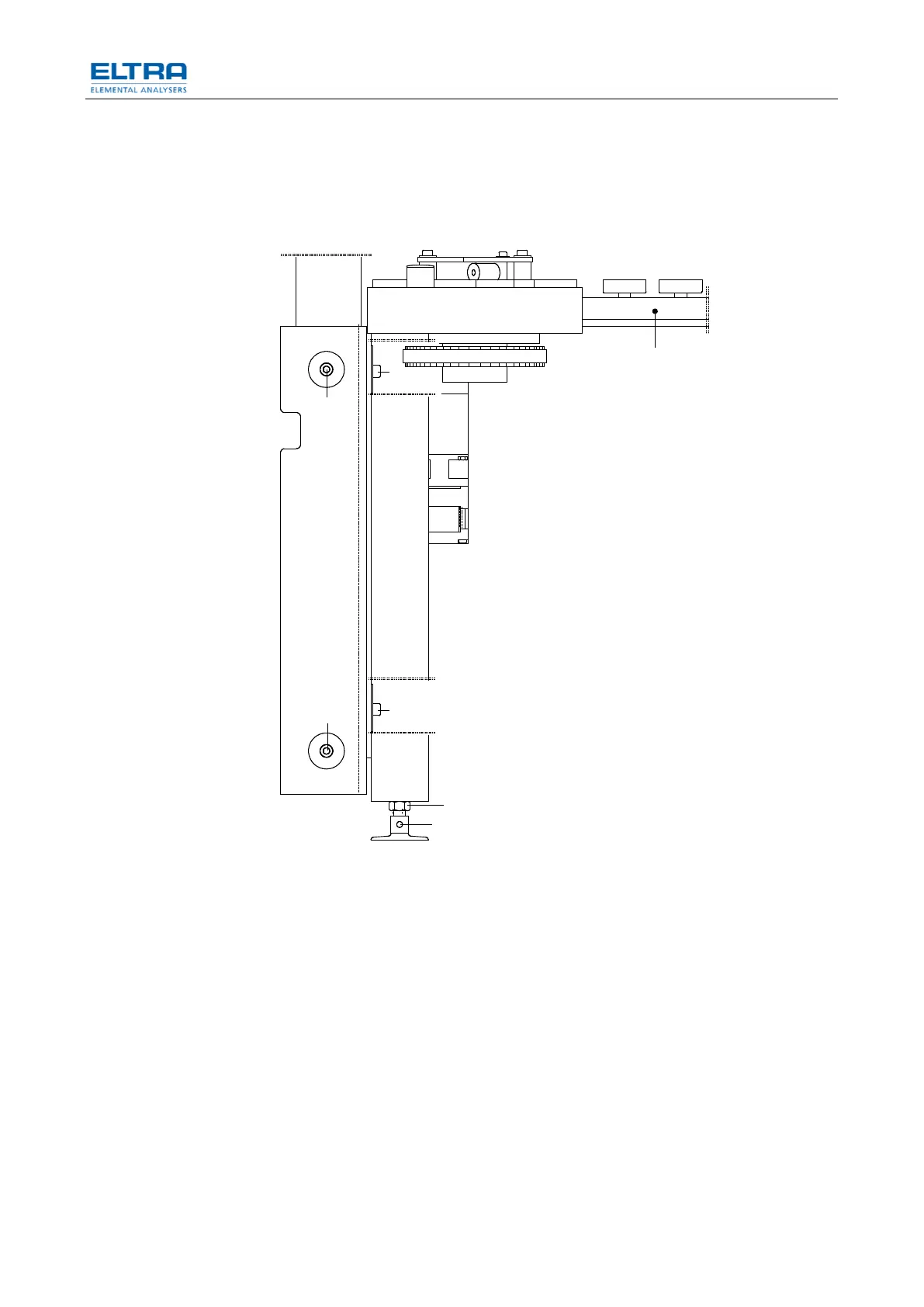

Fig. 17: Loader front view
Now the position of the crucible has to be adjusted to be coaxial to the fingers. For
moving the crucible to the left and to the right, slightly loose the screws (1) and (2)
and shift the whole platform (5) accordingly. For moving the platform back and for,
loose the screws (3) and (4).
1. Fingers close. Again, if the crucible doesn’t move when the fingers close, the
crucible is at the right place.
2. Fingers up.
3. Parking position.
1.16 Height of the platform
1. The fingers turn to the pedestal. Check the distance between the top of the
Pedestal and the bottom of the crucible to be 12.5 mm. If it is only approx.
12.5 mm, don’t try to adjust accurately, rather go to the next step.
2. Fingers down. While pressing, watch carefully the crucible. If the height of
the crucibles platform is correct, the crucible should just touch the pedestal.
If the crucible has a distance to the pedestal, the crucibles platform has to be
1
22
4
3
6
7
5
K
