Operating the machine
6

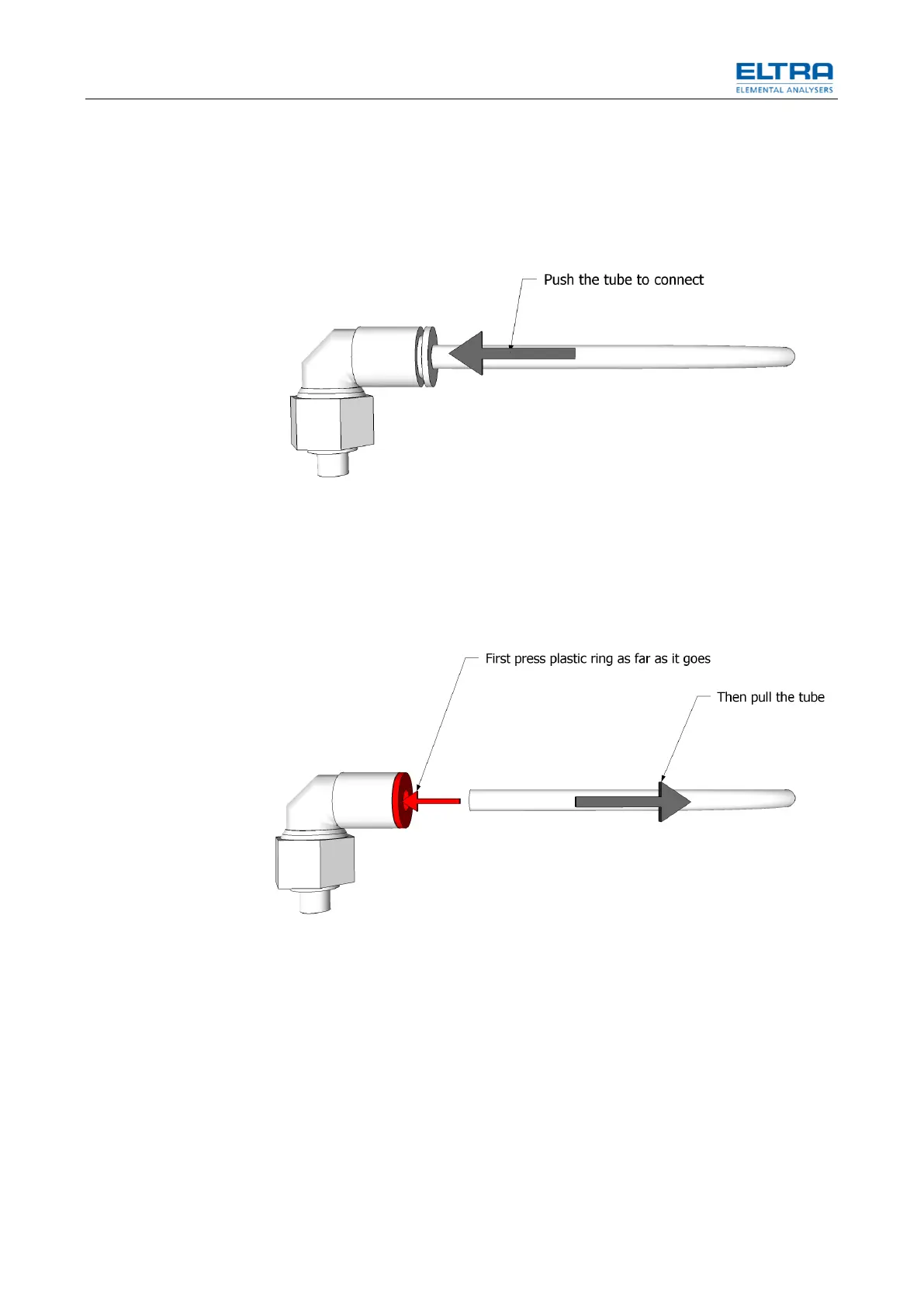

1.1.3 Connecting and disconnecting plastic tubes
To connect the tube, simply push it into the fitting as far as it would go.
Fig. 2: Plastic tube connecting
To disconnect the tube, first press the plastic ring of the fitting up to the metal ring,
keep it properly pressed and pull the tube.
Fig. 3: Plastic tube disconnecting
To reinstall the loader do this:
• The analyzer is switched off (Mains power switch on position 0).
There is no compressed air supply to the analyser.
