1.7 Electrical and pneumatic connections

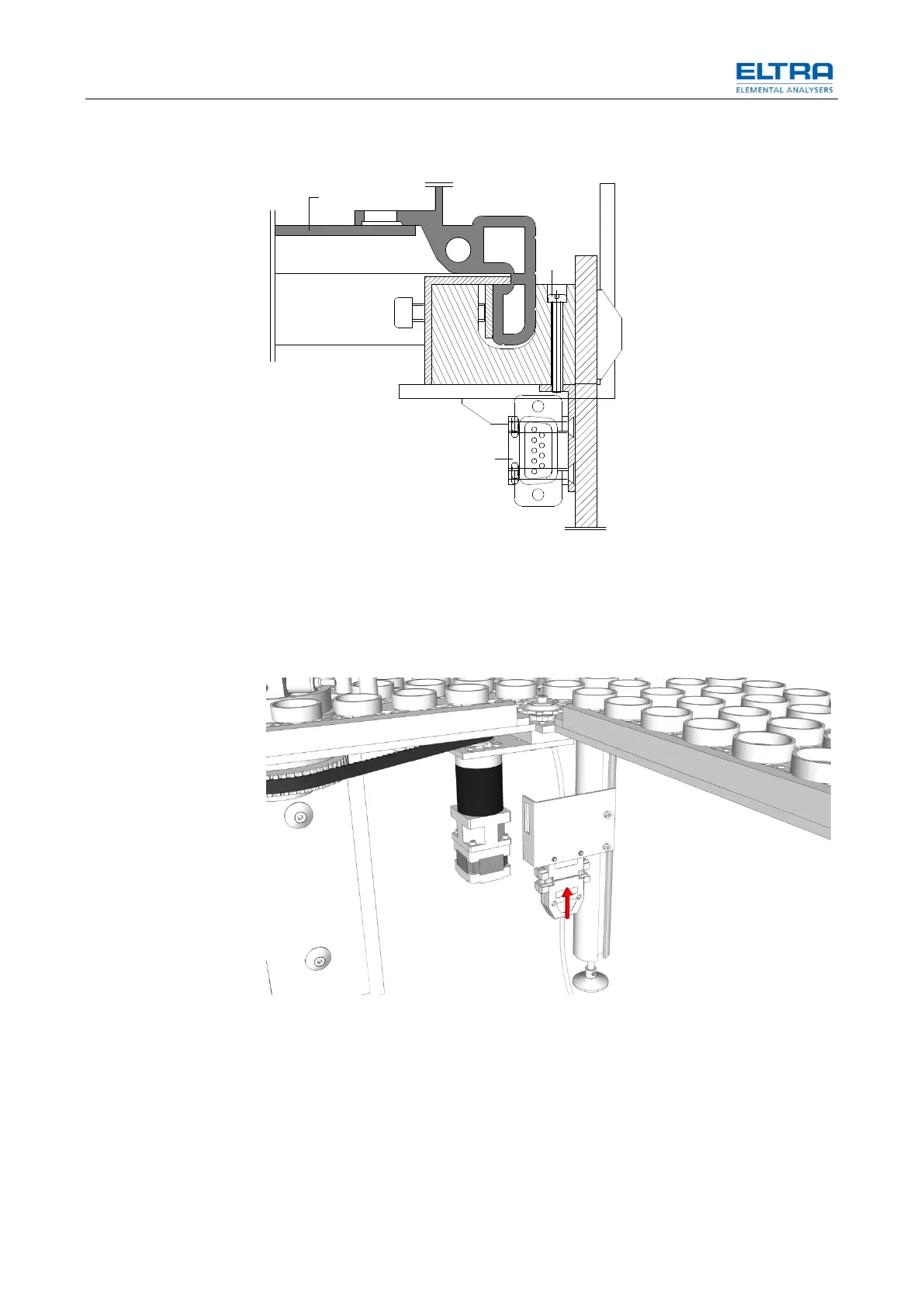

Fig. 11: Electrical connection: Motor arm
• Install the 9-pin socket (1)
• Fix with the screws (2).
• Plug in the 9-pin connector (1) of the finger’s motor into the 9-pin socket; see
figure electrical circuit (1).
Fig. 12: Electrical connection: the 25-pin plug
• Locate the electrical cable with a 25-pin plug, coming out of the analyzer.
Plug it in the 25-pin socket, as on the picture above.
1
5
9
6
Fro nt panel
1
2
G
