Operating the machine
8
1.3 Chain motor belt adjustment

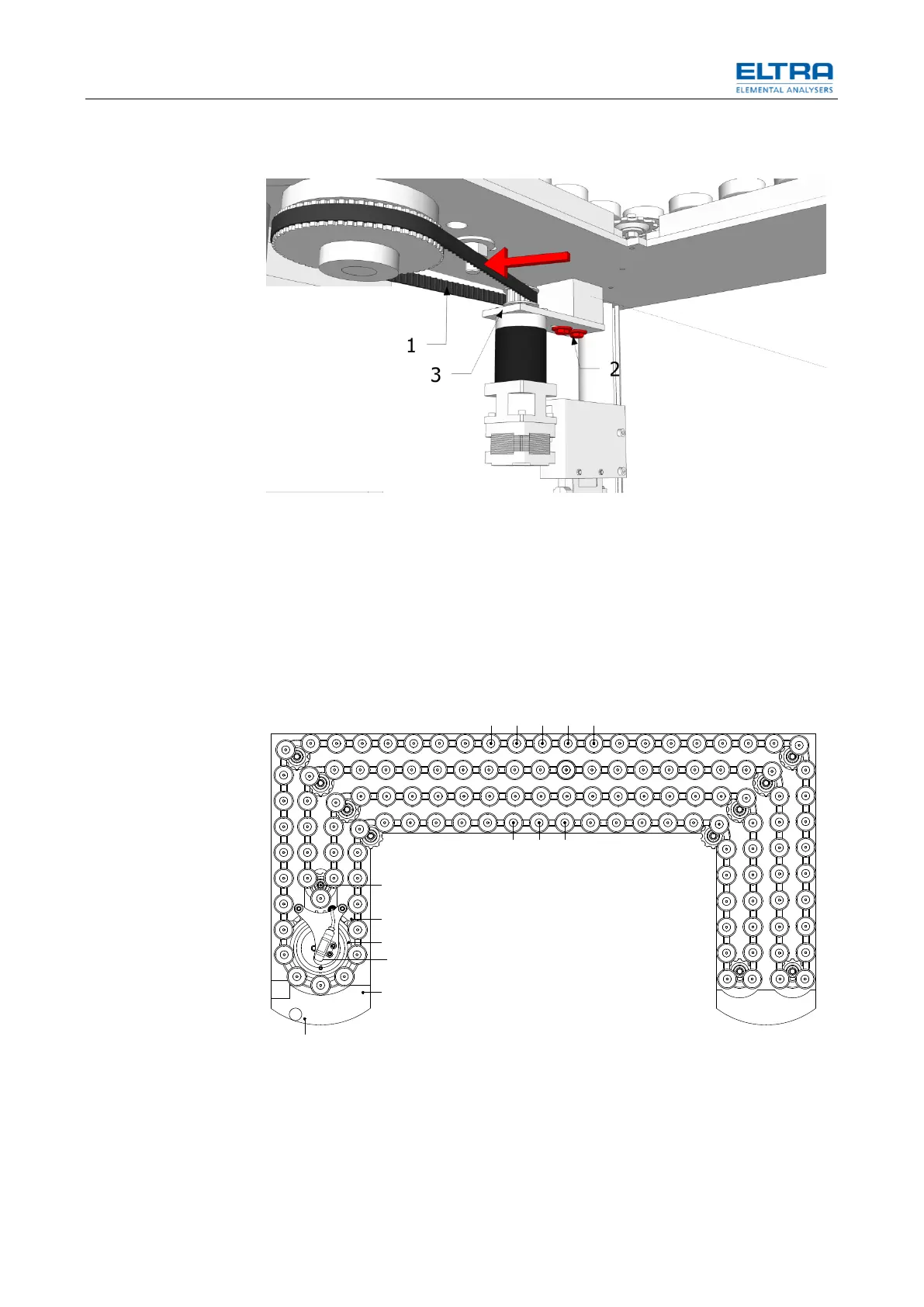

Fig. 5: Belt tension check
The toothed belt of the chain motor is located underneath the left-hand section of
the loader’s platform. The mechanical tension of the toothed belt (1) can be
checked by applying the force to the belt, as shown on the picture by the red arrow.
If an adjustment is necessary, loose the two screws (2) push the plate (3) to the
back in order to create an appropriate tension of the belt (1) and drive the screws.
After fixing the screws, check the tension of the belt (1) again.
In case of replacing the belt, the adjustment is made the same way.
1.4 Chain adjustment
Fig. 6: Chain tension adjustment
1467-Horizontal laser
3
4
1 1 1 1 1
2 2 2
D
5
7
6
14647
