ELTRA CS800 User Manual

Operating the machine
22
1.23 Crucibles disposal

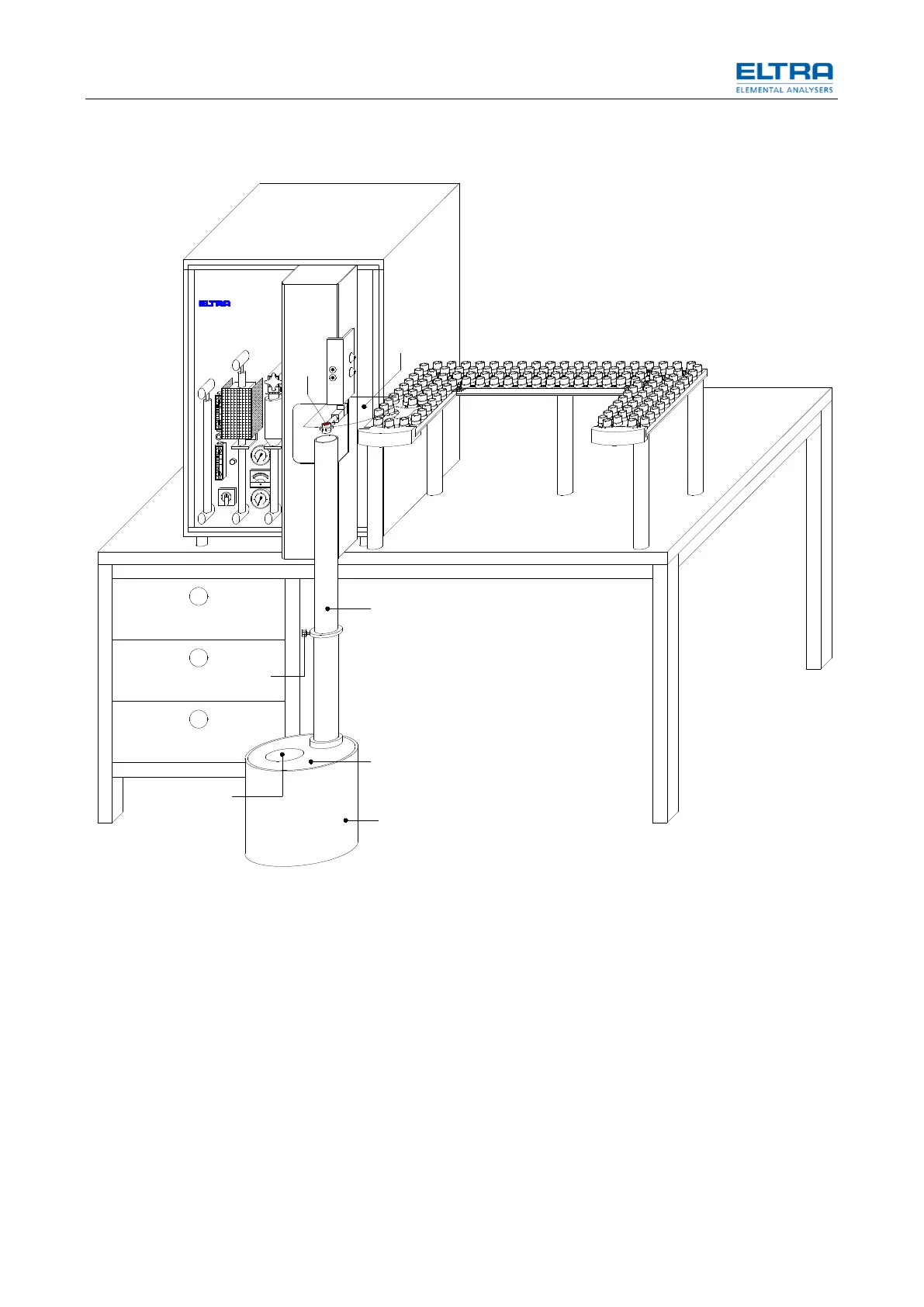

Fig. 18: collecting receptacle
1. Place the collecting receptacle (1) on the floor, as shown.
2. Adjust the height of the tube (2) with the winged nut (3) so that the top of the
tube (2) has a distance of about 5.5 to 6 cm from the plastic plate (4).
3. Position the drum (1) in a way that the middle of the tube ( 2 ) is underneath
the marker (5) that sticks on the plastic plate (4).(disposal position)
4. The tube (2) is eccentric to the lid (6). The drum (1) can be turned to the
most convenient direction and the middle of the tube (2) still remains
underneath the marker (5).
5. The window (7) allows a view of the level of crucibles in the drum.
