Operating the machine
11
1.6 Arm installation

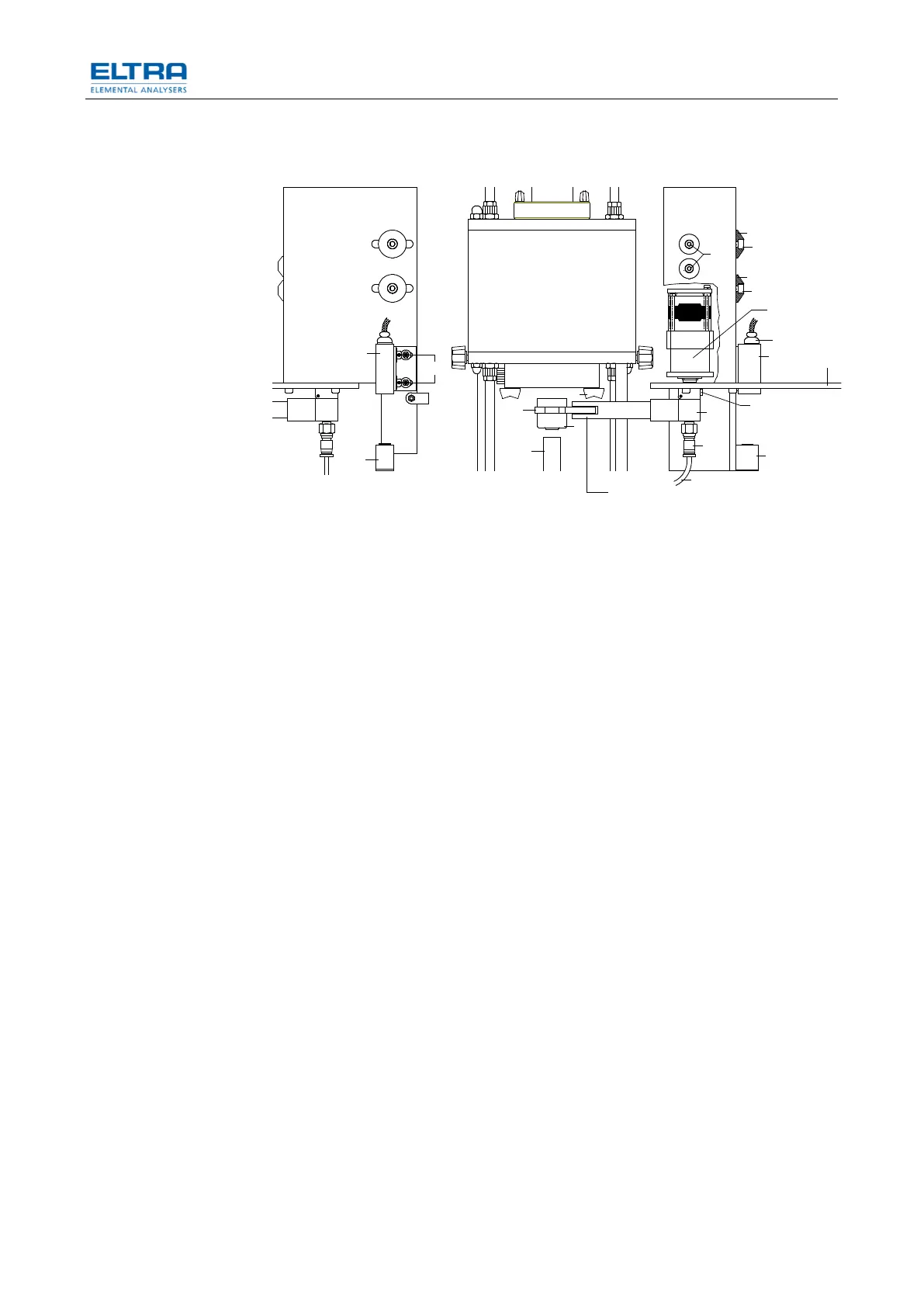

Fig. 10: Arm installation
14648-Vertical laser
14795-Finger assembly for Loader CS800/2000
14796 Finger assembly for Loader Helios
14819-Finger motor
• Pass the low end of the spring (8) (see figure pneumatic connections),
through the hole of the cubic support (13) of the arm (3). The upper end of
the spring is already fixed during manufacturing.
• Install the assembly of the arm (3) and the fingers (6) by driving the screw
(17) to fix this assembly on the shaft of the gear motor (14). Handle with care
considering the thin shaft of the gear and the small screw (17) for fixing.
Make sure that the screw will press the flat side of the gear’s shaft.
• Push upwards the plastic tube (15) into the fitting (16).
6
8
1
1
2
2
11
7
5
3
4
F
18
13
16
15
17
10
12
11
10
14648
14795
14796
148 19
9
14
