Operating the machine
5
1 Operating the machine
1.1 General information
The loader is supplied after testing without being completely dismantled. It is only
detached from the analyser and the arm (3) with the fingers (6) (See figure arm
installation) are removed for safety reasons. Therefore, an adjustment after
installation may not be needed however the adjustments are described below.
They may be necessary for accurate readjustment.
1.1.1 Loader models
There are 3 standard loader models available:
130-crucibles version, 104-crucibles version and 36-crucibles version.
The difference between these models is the form of the loader’s platform, i.e. the
size of the loader. There is no difference with regard to loader arm, arm support
and drive, lasers/sensors, chain drive, pneumatics and electronics. Therefore the
adjustments, described in this manual are valid for all models.
1.1.2 Space requirements

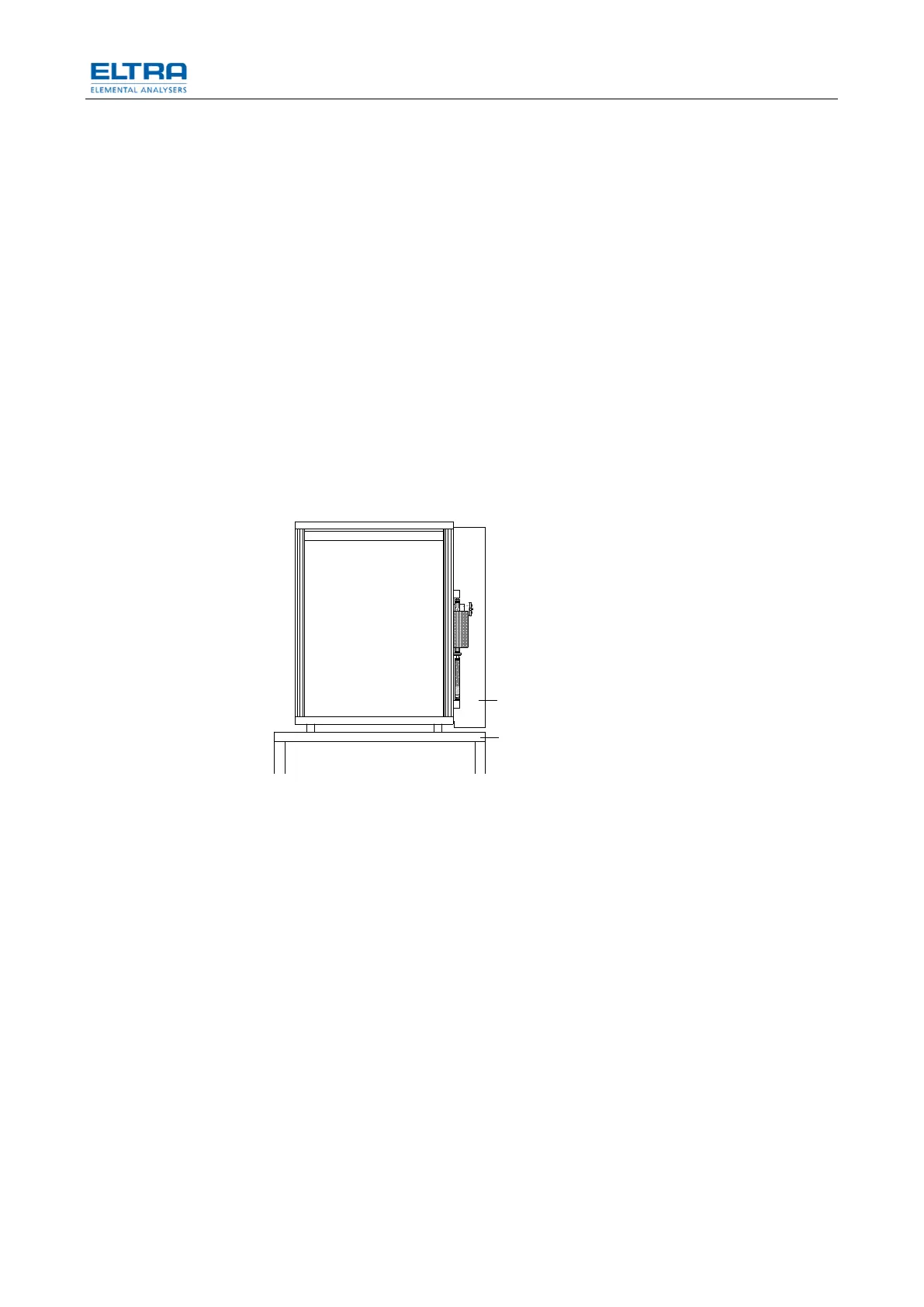

Fig. 1: Loader positioning
Keep sufficient space to the right of the analyzer (minimum 86 cm) to place the
loader.
It is suggested to place the analyser in a position where the front end of the
furnace cover (1) aligns with the front end of the desk (2).
NOTICE
Under no conditions should the analyser and loader be placed in direct sunlight or
be exposed to the wind of air conditioners or to the wind blowing through open
windows and doors.
