Operating the machine
14

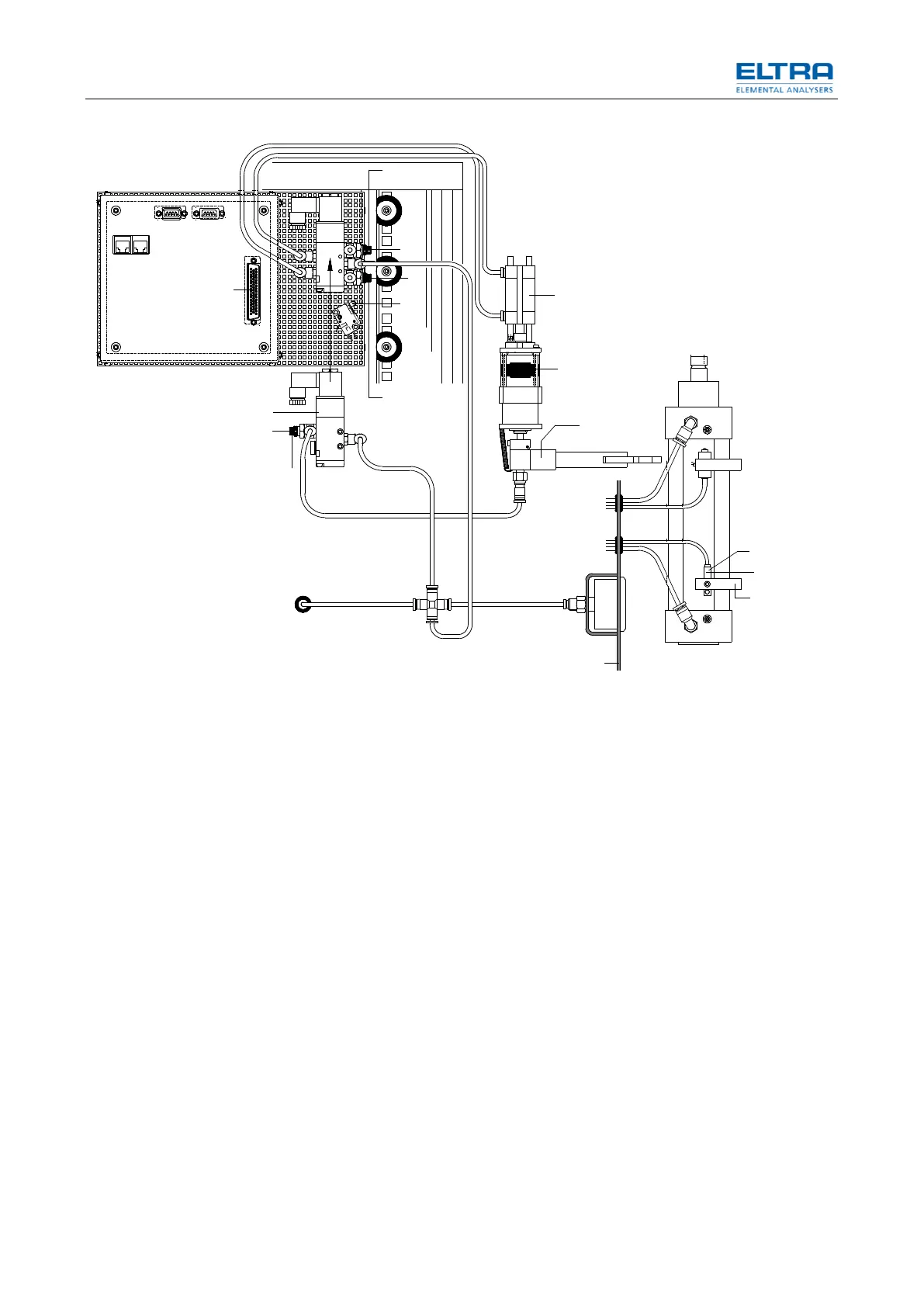

Fig. 14: Pneumatic connections
14016-Sensor holder
14618-Loader board
14795-Finger assembly for Loader CS800/2000
14796-Finger assembly for Loader HELIOS
14819-Finger motor
14820-Finger pneumatic cylinder
60234-Pneumatic valve
60352-Sensor
• Install the magnetic switch (6) at the low end of the pneumatic cylinder as
shown in figure pneumatic connections.
• Connect the 50-pin plug (2) of the loader see figure electrical circuit, to the
50-pin plug (1) on the Loader board.
• Connect the 15-pin plug (5) of the loader; see figure electrical circuit, to the
15-pin plug on the UNI board.
• Connect the compressed air plastic tubes as shown in figure pneumatic
connections.
1
2
4
3
1
5
Front panel
6
Finger
closing
speed
Arm
up speed
Arm
down speed
8
7
6
14795
14796
60234
14819
14820
14618
60352
14016
