2002 by ELTRA GmbH Germany – January 2002 – Service Manual OH 900 / ON 900 / ONH 2000
3.5-1
3.5
3.5
Chopper
see 3. 1

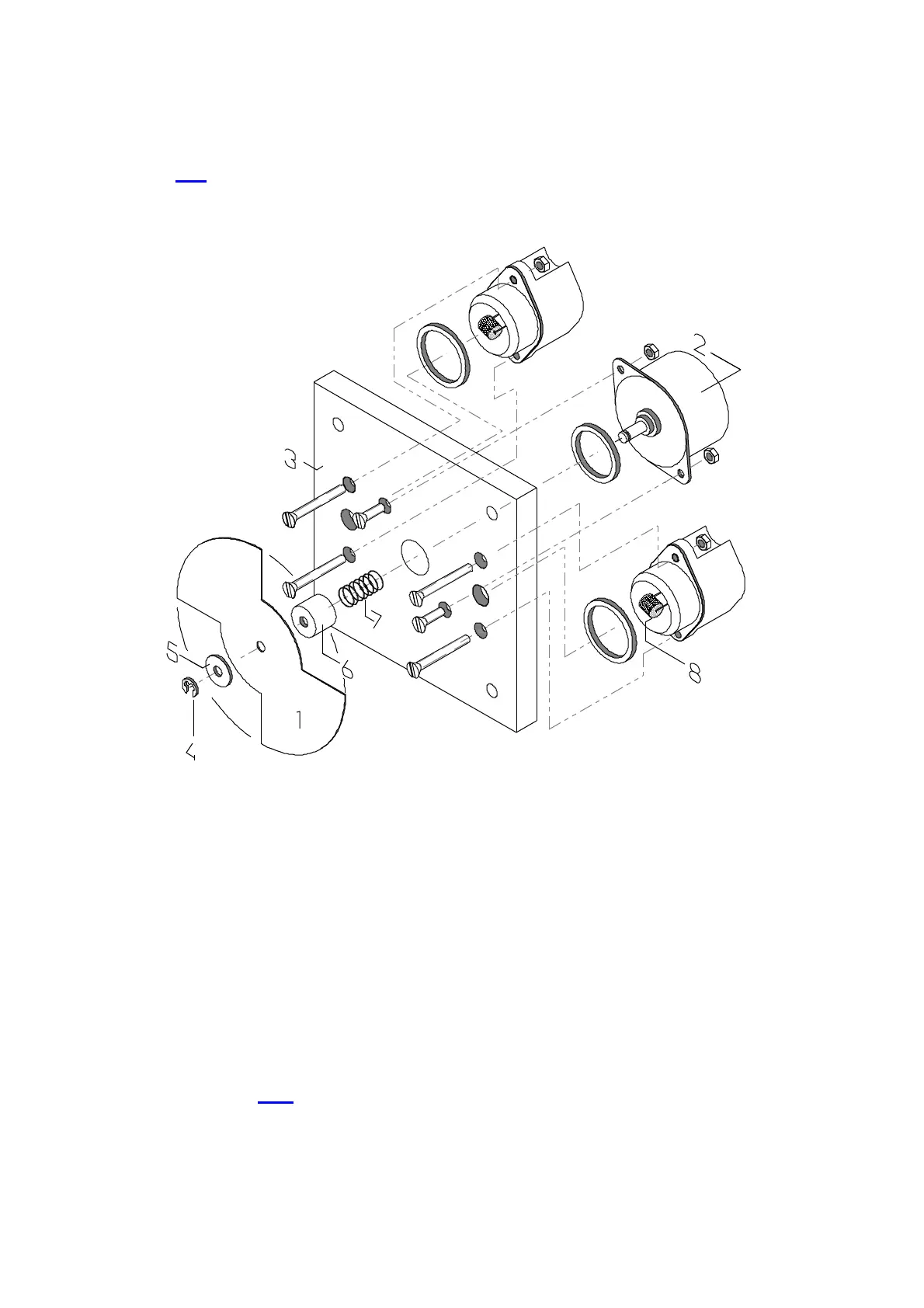

The chopper blade ( 1 ) is fastened to the motor.
In order to dismount the motor from the mounting plate ( 3 ),
the chopper blade must first be removed.
The safety ring ( 4 ) is removed.
One after the other, the washer ( 5 ) ( there could be two ), the chopper blade ( 1 ),
the cylinder ( 6 ), and the spring ( 7 ) are removed
Reassemble in reverse order.
CAUTION !
Before re-assembling check the position of the IR source ( 8 ) and, if necessary, center
its position ( see
3. 2
). The heating wire is not very elastic, therefore do not move it
back and forth, you rather should correctly position it the first time.
4-1-1 -0
