2002 by ELTRA GmbH Germany – January 2002 – Service Manual OH 900 / ON 900 / ONH 2000
3.5-1

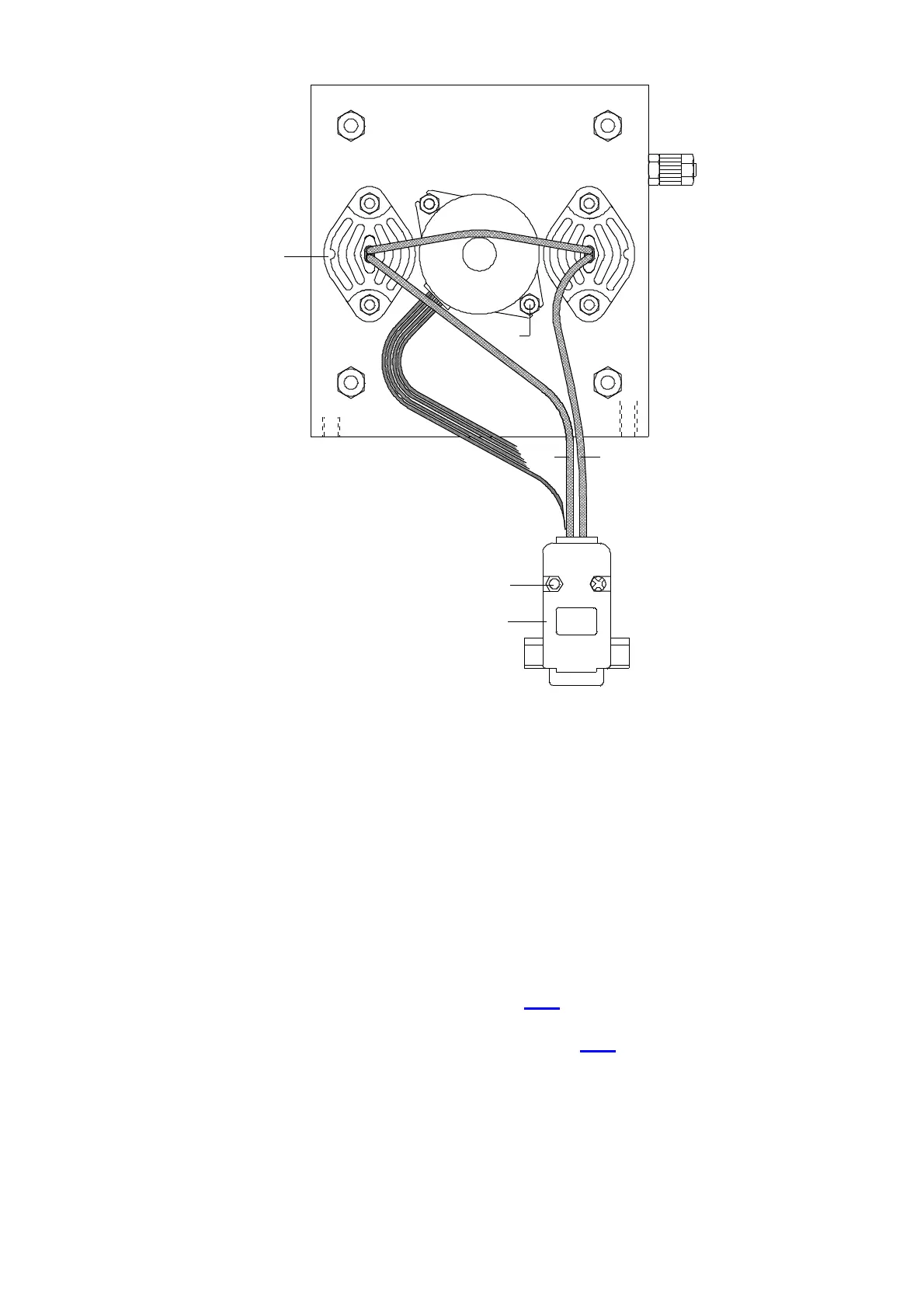

The plug ( 1 ) is disassembled by unscrewing the screws ( 2 ).
The cable ( 3 ) of the IR sources ( 4 ) are then unsoldered from plug ( 1 ).
The bolts ( 5 ) are unscrewed.
The new motor ( 6 ) is bolted on.
The IR source cables ( 3 ) are then soldered to the plug ( 1 ).
CAUTION !
Due to the high current for the IR sources, the solder joints must be very well made.
Inside the plug ( 1 ) two pins are soldered together to form one connecting point.
Two such connecting points are present in the plug ( 1 ). Each of the two cables ( 3 )
are soldered to each connecting point. Polarity is irrelevant.
Afterwards, the chopper blade is refastened, see
3. 5
.
This is reassembled in the reverse order.
After installing, the infrared cell should be adjusted, see
2. 3
4 - 1 -1
6
5
3
3
4
2
1
