94 Chapter 3

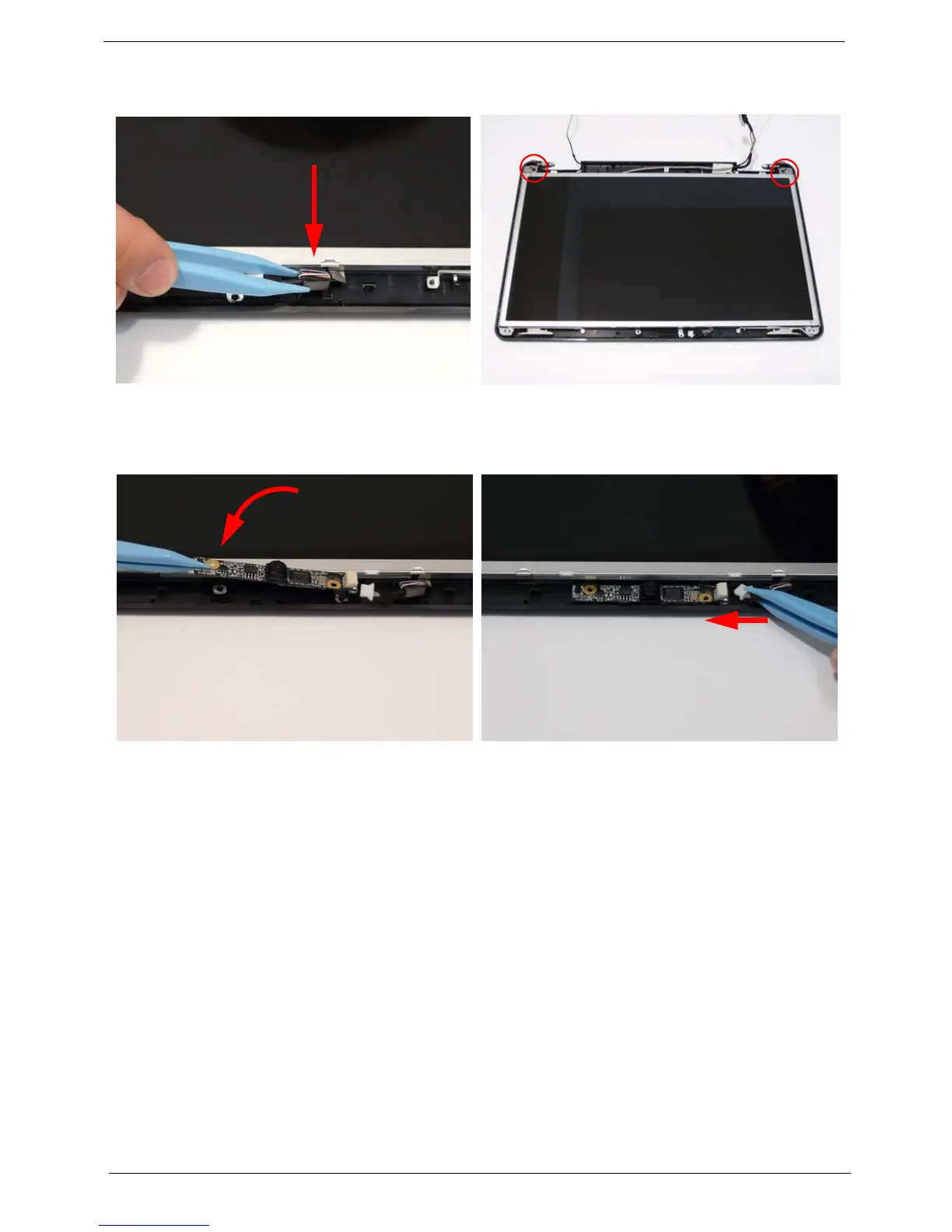

Replacing the Camera Module
7. Replace the Camera cable cluster in the LCD
Module.
8. Secure the LCD module with the two securing
screws.
1. Place the camera in the LCD Module. 2. Connect the cable to the camera module.
