EMC VNX Series Parts Location Guide

10 EMC VNX7500 Parts Location Guide
Standby power supplies (SPSs)
1U SPS
The Block and File (Unified) VNX7500 platform can support up to two 1U standby power
supplies or a dual 1U SPS to provide temporary emergency power to the Block and File
VNX7500 platform. Part numbers for the 1U SPS are only on the rear of the product.

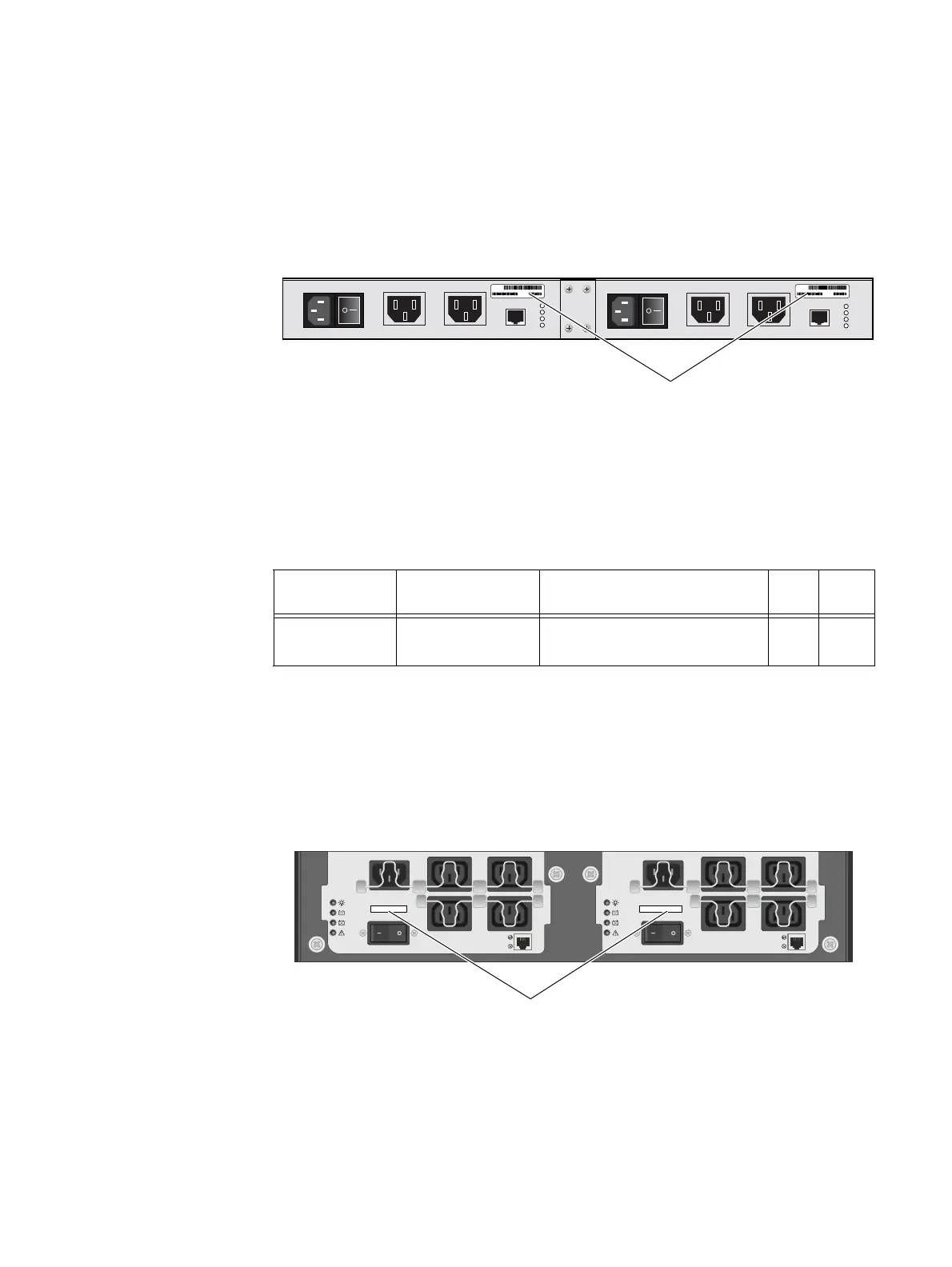

Figure 5 shows the part number location of the 1U SPS.
Figure 5 Example of a dual 1U SPS
Table 1 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
2U SPS
The VNX7500 can support up to two 2U standby power supplies or a dual 2U SPS to
provide temporary emergency power to the VNX7500 platform. Part numbers for the 2U
SPS are only on the rear of the product.
Figure 6 shows the part number location of the 2U SPS.
Figure 6 Example of a dual 2U SPS
900-XXX-0014 0082
A00REV
S/N
900-XXX-0014 0082
A00REV
S/N
Part Number (P/N) label
CNS-001545
Table 1 1U SPS part number
Part number label
location (Figure 5) Part number Description FRU CRU
078-000-084
078-000-085
DC standby power supply (SPS)
1200W

SPS B
SPS A
VNX-000676Part Number (P/N) label
