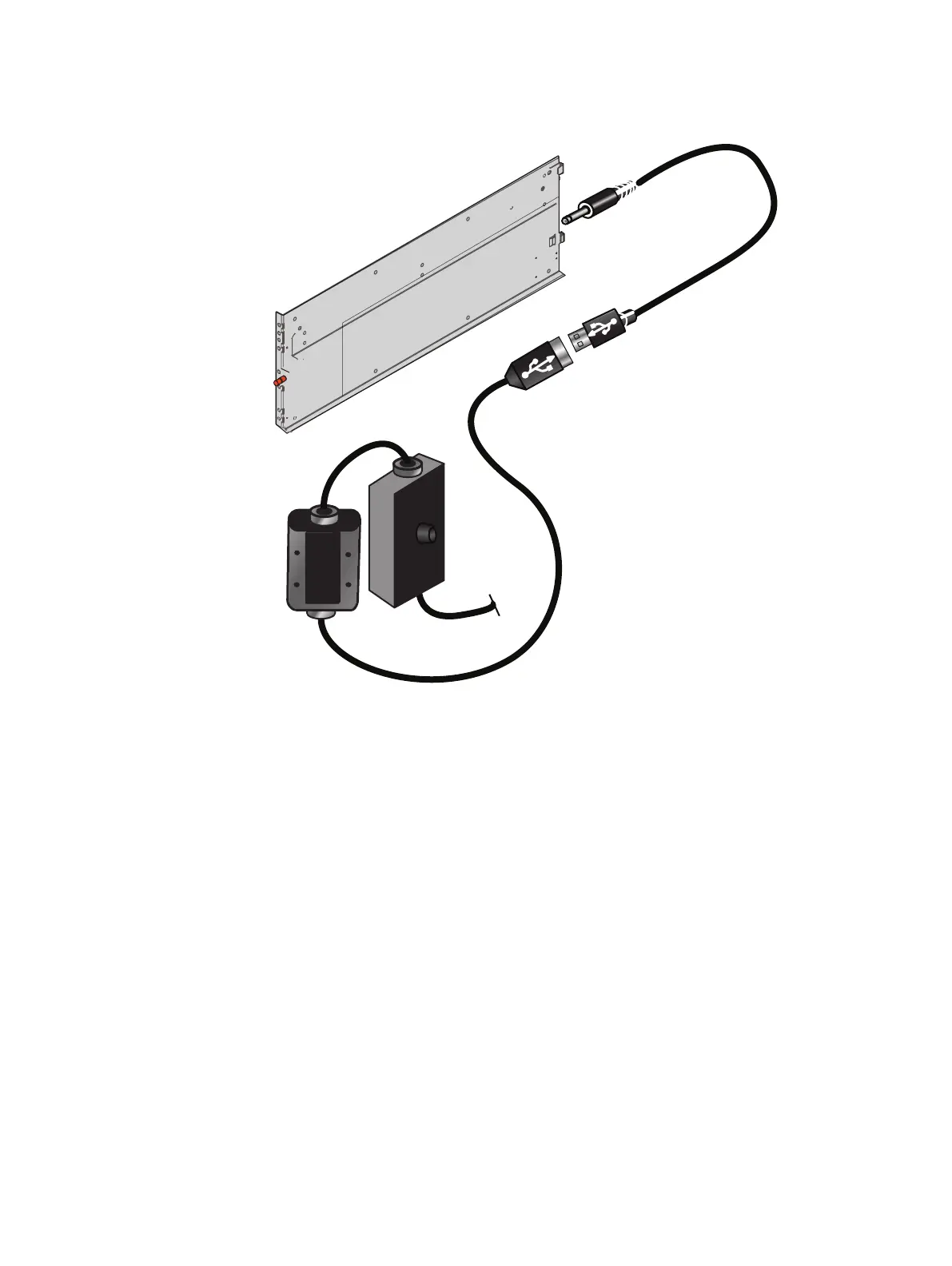

Figure 24 Connecting the power to the rail for the bezel
Procedure
1. Locate the bezel for each installed component.
2. On the front of the rack or cabinet, position and align each bezel to the front-mounting
brackets on the corresponding component.
3. Press the bezel into the bracket until it clicks into place as shown in the example in
Figure 25 on page 54. Bezels have a lock built in to them, so you can opt to lock the
bezels in place with the key provided. To lock the bezel, insert the key and turn it one
quarter turn clockwise.
4. Repeat steps 2 on page 53 and 3 on page 53 for the remaining bezels.
Setup
Attach bezels 53
