Reference Manual
00809-0200-4420, Rev HC
Section 3: Installation
July 2015
Installation
3.2 Mounting
Find a location where the Gateway has optimal wireless performance. Ideally this will be 15-25
ft. (4,6 - 7,6 m) above the ground or 6 ft. (2 m) above obstructions or major infrastructure.
Figure 3-1 shows an example gateway installation.

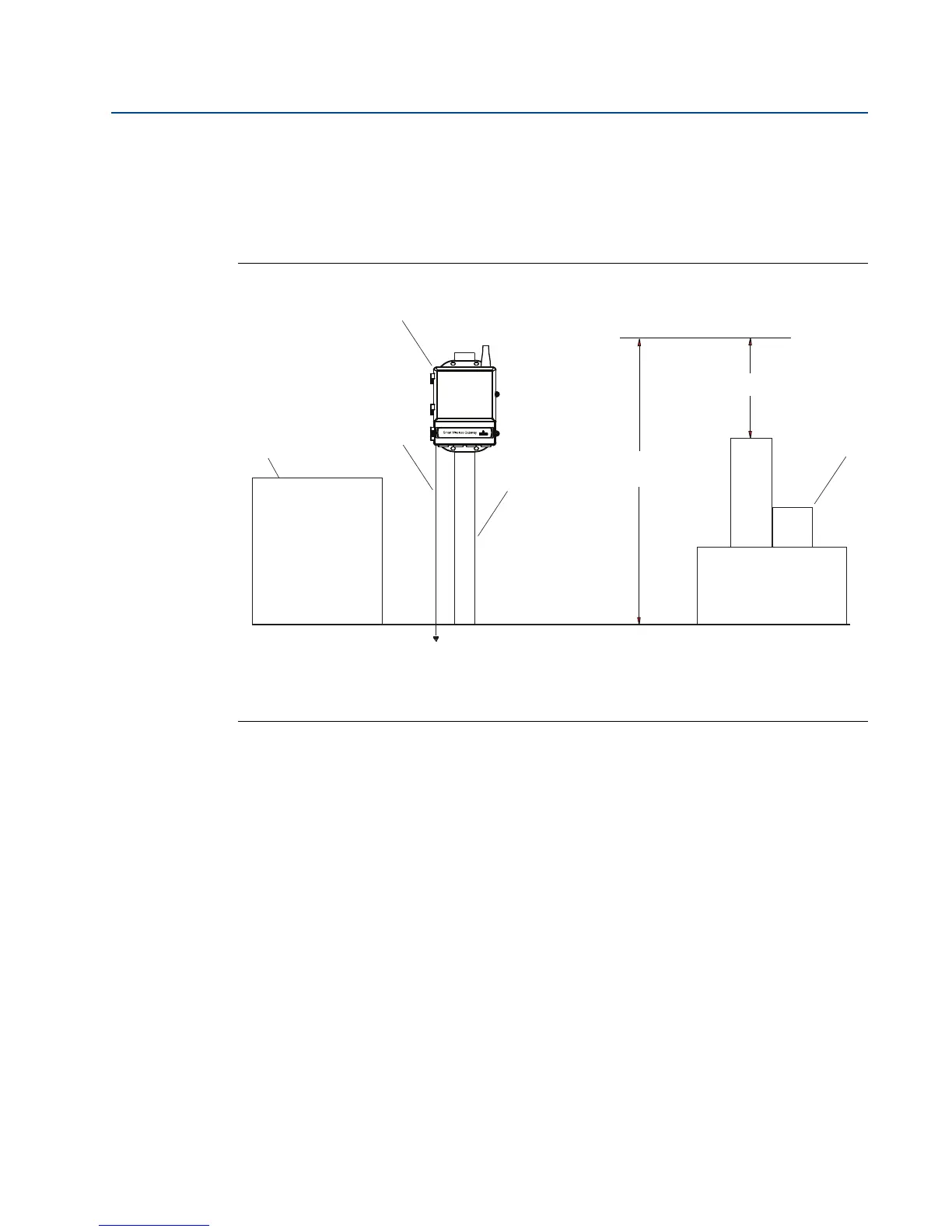

Figure 3-1. Gateway Installation
A. Control Room
B. Ground
C. Gateway
D. Mast or Pipe
E. Infrastructure
C
B
D
E
15-25 ft.
(4,6-7,6 m)
6 ft. (2 m)
A

Emerson 1420 Specifications

General

Model	1420
Protocols Supported	WirelessHART
Power Supply	24 V DC
Operating Temperature	-40°C to +70°C
Mounting	DIN rail
Hazardous Area Approvals	ATEX, IECEx
Enclosure Rating	IP66
Communication Interface	Ethernet, RS-485
