DeltaV Ready
C.5 Setup
Out of the box the Smart Wireless Gateway is pre-configured for use on the DeltaV control
network. In the DeltaV Explore application, the Gateway will automatically appear in the
Decommissioned Nodes folder.
To setup a wireless network will require 3 steps:
1. Commission the Gateway.
2. Assign wireless device tags.
3. Assign Gateway to controller and download.

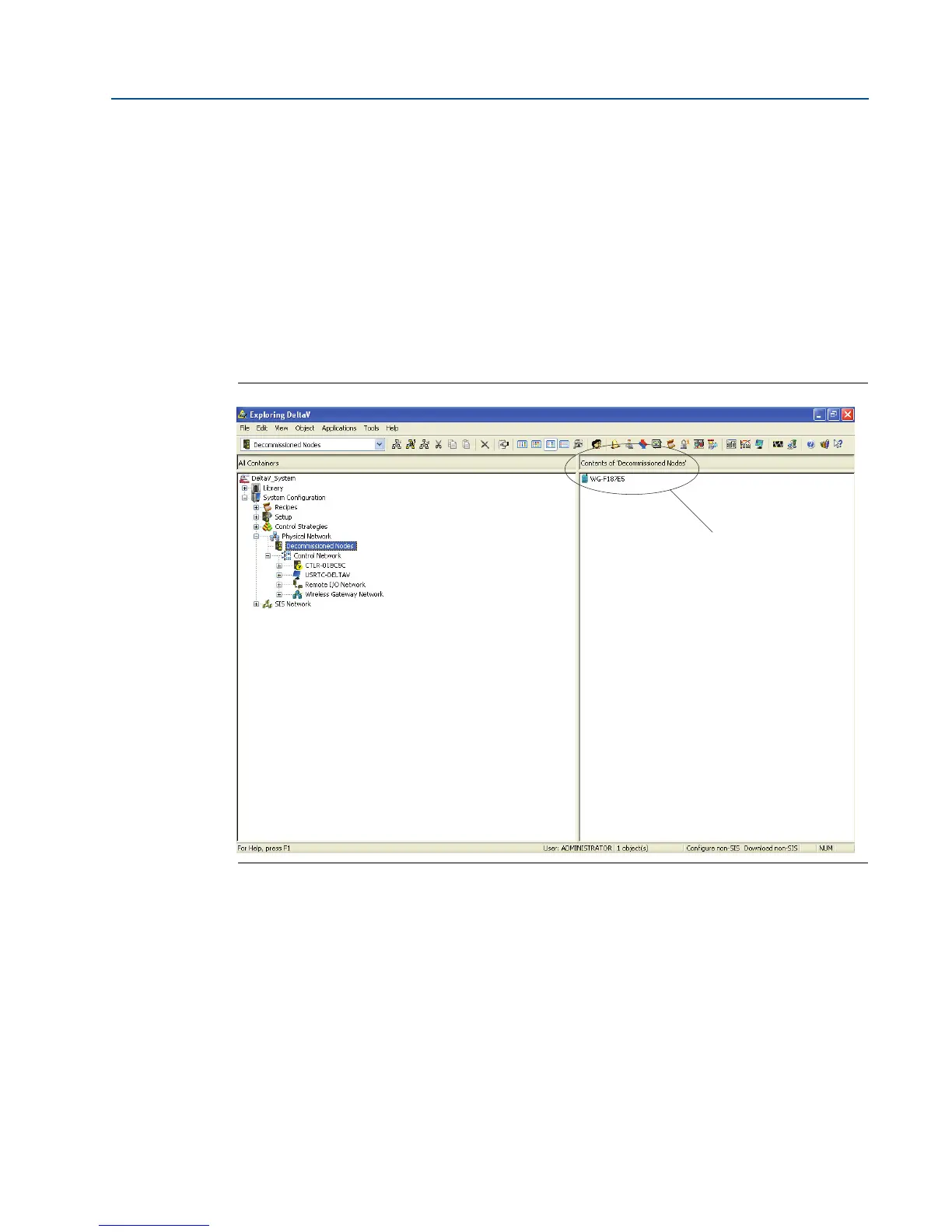

Figure C-2. Decommissioned Nodes Folder within DeltaV Explorer
Commission the Gateway using the following procedure:
1. Select START>PROGRAMS>DELTAV>ENGINEERING> DELTAV EXPLORE to launch the
DeltaV Explorer application.
2. Expand the folder SYSTEM CONFIGURATION >PHYSICAL
NETWORK>DECOMMISSIONED NODES.
3. Right click on the Smart Wireless Gateway and select Commission.
4. Enter a name for the Gateway and select OK.
5. Select YES when prompted to Auto-Sense Wireless Gateway.
New Wireless
Gateway
