3.2.1 Pipe mount
The following hardware and tools are needed to mount the Gateway to a 2-in. pipe:
 Two
5
/16-in. u-bolts (supplied with Gateway)
 2-in. mounting pipe
 ½-in. socket-head wrench
Mount the Gateway using the following procedure:
1. Insert one u-bolt around the pipe, through the top mounting holes of the Gateway
enclosure, and through the washer plate.
2. Use a
1
/2-in. socket-head wrench to fasten the nuts to the u-bolt.
3. Repeat for the second u-bolt and the lower mounting holes.

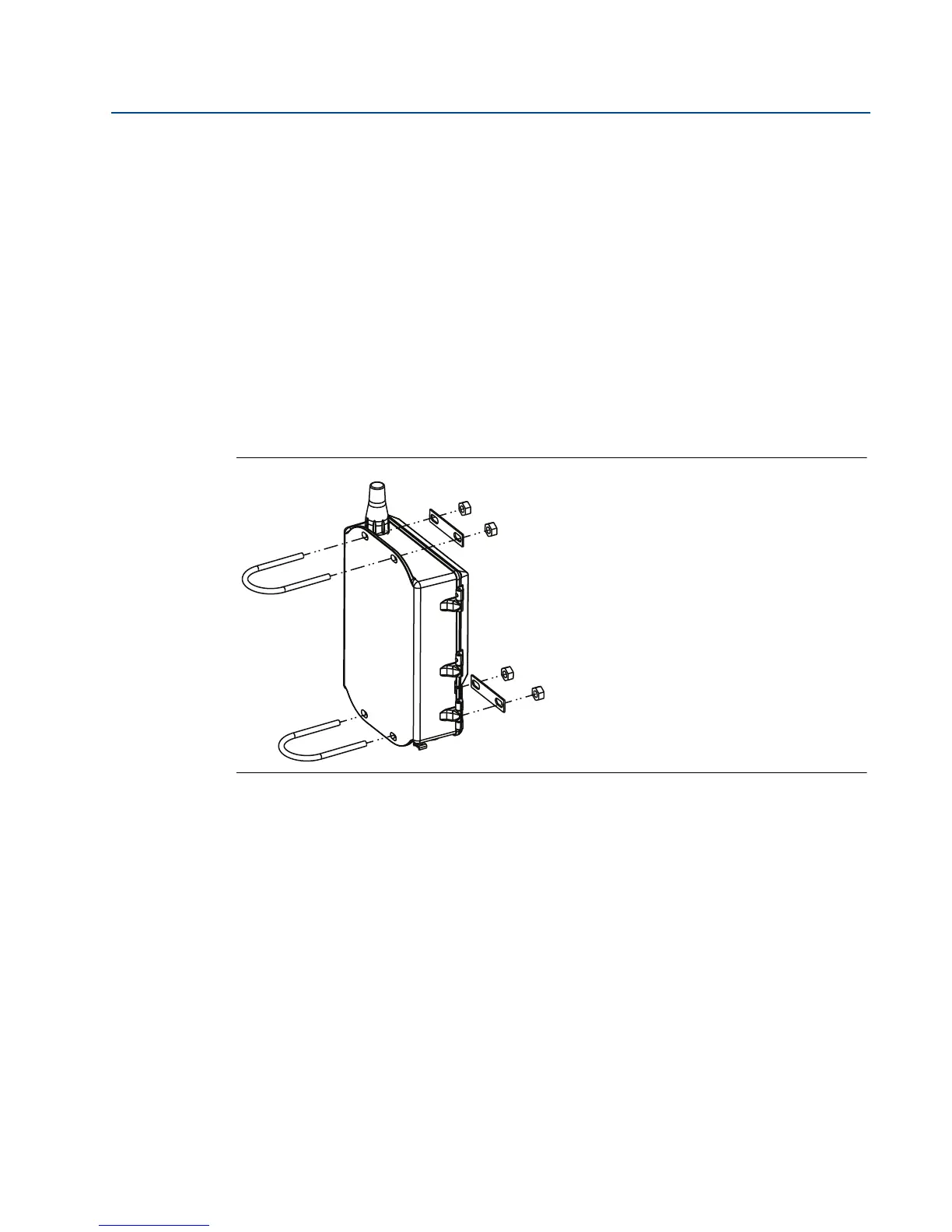

Figure 3-2. Pipe Mount
3.2.2 Bracket mount (alternate)
The following hardware and tools are needed to mount the Gateway to a support bracket:
 Four
15
/16-in. bolts
 Mounting support bracket

3
/8-in. drill

1
/2 -in. socket-head wrench
Mount the Gateway using the following procedure:
1. Drill four
3
/8-in. (9,525 mm) holes spaced 3.06-in. (77 mm) apart horizontally and
11.15-in. (283 mm) apart vertically in the support bracket, corresponding with the
holes on the Gateway enclosure.
2. Using a
1
/2-in. socket-head wrench, attach the Gateway to the support bracket with four
15
/16-in. bolts.
