Section 4: Commissioning
July 2015
Commissioning
Note
If the autorun function is disabled on the PC, or installation does not begin automatically,
double click D:\SETUP.EXE (where D is the CD/DVD drive on the PC) and select OK.
4.4 Security Setup Utility
The Security Setup Utility enables secure communications between the Gateway and host
system, asset management software, data historians, or other applications. This is done by
encrypting the standard data protocols (AMS Wireless Configurator, Modbus TCP, Ethernet/IP
™
,
and OPC) used by the Gateway and making them available through various proxies within the
Security Setup Utility. These proxies can function as a data server for other applications on the
control network. The Security Setup Utility can support multiple Gateways at once and each
proxy can support multiple client application connects. Figure 4-1 shows a typical system
architecture using the Security Setup Utility.

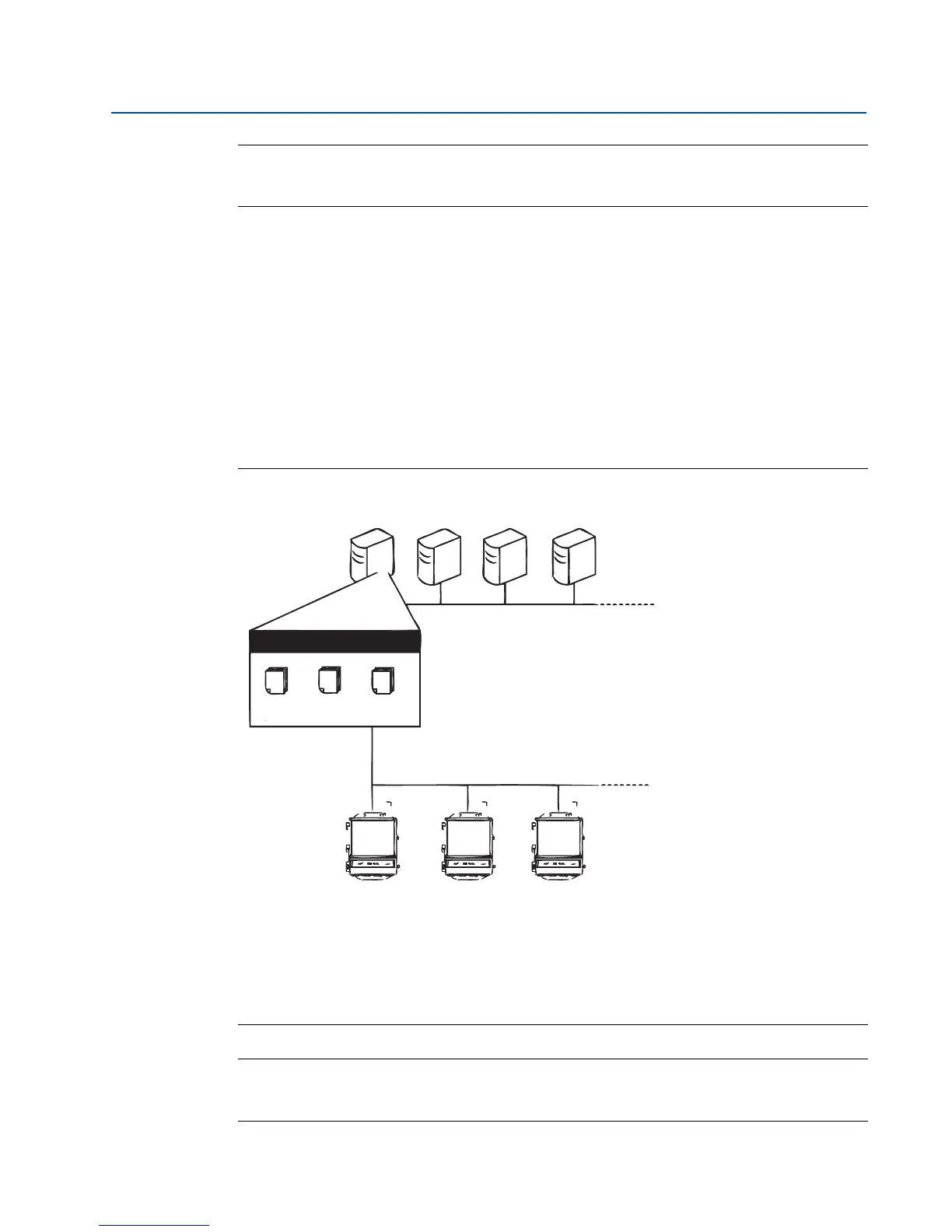

Figure 4-1. Typical Host System Architecture Using Security Setup
Note
OPC communications requires the use of the Security Setup Utility regardless of whether
encryption is required.
A. AMS Proxy
B. Modbus Proxy
C. OPC Proxy
D. Data Server
E. Engineering Station
F. Asset Management
G. Historian
H. Gateway A
I. Gateway B
J. Gateway C
K. Control Network
L. Encrypted Data
Security Setup Utility
A
B
C
HIJ
D
E
FG
K
L
