HART Device List

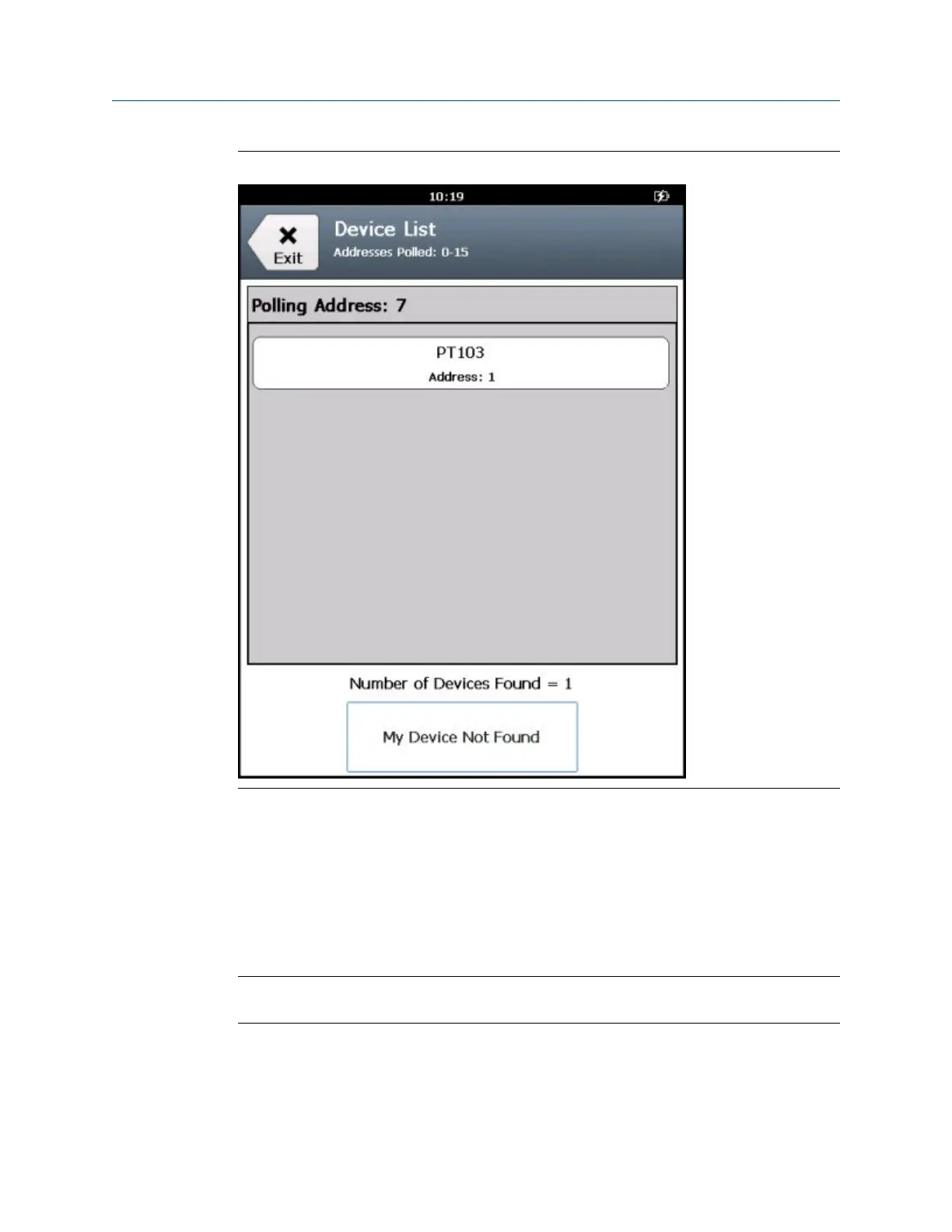

Figure 3-23:
3.11
Internal resistors
The Trex unit has internal resistors that can be used when the Trex unit powers a HART
transmitter, or when the HART transmitter is on a 4-20 mA current loop without a resistor.
The resistors are enabled through the device connection wizard in the Field Communicator
application.
Note
For positioners, the internal resistors in the Trex unit are disabled.
Field Communicator application
74
User Guide
81
83
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 AMS Trex Device Communicator User Guide
9
User Guide Overview
9
Documentation Conventions
9
Technical Support
10
Information to Provide to Technical Support
10
Chapter 2 AMS Trex Device Communicator Overview
11
Precautions for the Trex Unit
12
Hazardous Areas
12
Front View of the Trex Unit
13
Keypad
13
Touchscreen
14
Supported Gestures
15
Enter Text, Numbers, or Special Characters
16
Clean the Touchscreen
16
Back View of the Trex Unit
17
Serial Numbers
17
Communication Modules
18
Ammeter on the Device Communicator Plus Communication Module
20
Install a Communication Module
21
Remove a Communication Module
22
Power Module
22
Precautions for the Power Module and AC Adapter
23
AC Adapter
23
Leds on the Power Module
24
View the Remaining Power Module Charge
25
Charge the Power Module
26
Install the Power Module into the Trex Unit
26
Remove the Power Module from the Trex Unit
27
Maintain the Power Module
27
Accessories
28
Cables and Lead Sets
28
Carrying Case for the Trex Unit
29
Power on or off
30
Reboot
30
Hard Shut down
31
Home Screen
31
Return to the Home Screen
33
Status Bar
33
Shortcut Bar
34
Settings
34
View All Open Applications
35
Close an Application
35
Change the Screen Brightness
35
Wireless Communication
35
View Information about the Trex Hardware and Operating System
38
Enter a Name for the Trex Unit
39
View the Application Version Number
39
Set the Time and Date
39
Calibrate the Touchscreen
40
Set the Language on Trex
40
View the Amount of Available Memory
40
Power Management
41
Enable or Disable Automatically Connecting to HART Devices
43
Enable Diagnostic Logging
43
Applications on the Trex Unit
44
Activation
44
Close an Application
44
USB Communication
45
Synchronizing AMS Trex Data with AMS Device Manager
45
Synchronize AMS Trex Data to AMS Device Manager Using USB
46
Pair an AMS Trex Unit with an AMS Device Manager Station
46
Unpair an AMS Trex Unit
47
Upgrade Studio
48
Connect the Trex Unit to Upgrade Studio Using USB
49
Create a Trex Online User Account
49
Activate the Trex Unit
50
Activate the Trex Unit Without Using an Internet Connection
50
Transferring Log Files to a PC
51
Maintenance and Repair
52
Replace the Stand
52
Calibration
52
Chapter 3 Field Communicator Application
53
Open or Close the Field Communicator Application
54
Device Interoperability
54
Forward Compatibility Rules for Saving and Sending Configurations to AMS Trex
55
Automatically Detect a Device
55
Automatically Connect to a HART Device
56
Connect - Select Screen
56
Device Connection Wizard
58
Status When Detecting a Device
59
Online Menu or Device Dashboard
61
Device Screen Layout
63
Application Bar
65
Menu Screen
66
Icons on the Device Menus
69
Connections to HART Devices
70
HART Communication Terminals
70
Wiring Diagrams for HART Devices and the Field Communicator Application
72
Wiring Diagrams for the Smart Wireless THUM
77
HART Device List
81
Internal Resistors
82
Enable or Disable the Internal Resistors
84
Power and Connect to a HART Device
86
Power and Connect to a Smart Wireless THUM Adapter
88
Connect to an Externally-Powered HART Device
89
Online HART Devices
90
HART Icons
90
Device Setup Options
91
Changing Device Parameters
92
Change a HART Device Parameter
93
Edit a HART Configuration
94
Display the HART Short Tag or Long Tag
94
View Device Alerts
96
Send a Configuration to a Connected HART Device
97
Save a Configuration from a HART Device
97
Offline HART Configurations
97
Create a HART Configuration
98
Edit a HART Configuration
98
Copy a HART Configuration
99
Rename a HART Configuration
99
Delete a HART Configuration
99
Favorites
99
Open a Menu Item from the Favorites List
100
Add a Menu Item to the Favorites List
100
Remove a Menu Item from the Favorites List
101
Polling Options for HART Devices
102
Set the Polling Options for HART Devices
102
Connections to FOUNDATION Fieldbus Devices
103
Precautions for Using the Trex Unit with FOUNDATION Fieldbus Devices
104
FOUNDATION Fieldbus Communication Terminals
104
Wiring Diagrams for FOUNDATION Fieldbus Devices and the Field Communicator Application
106
Link Active Scheduler (LAS)
108
Fieldbus Device List
108
Power and Connect to a FOUNDATION Fieldbus Device
109
Connect to an Externally-Powered FOUNDATION Fieldbus Device
111
Online FOUNDATION Fieldbus Devices
112
Limitations for Commissioned Devices
112
Device Blocks
112
Run a Method
116
View the Device Information
117
Change a FOUNDATION Fieldbus Device Parameter
117
Change the Tag for a FOUNDATION Fieldbus Device
118
Guidelines for Changing the Device Address
119
Change the Device Address for a FOUNDATION Fieldbus Device
119
Polling for FOUNDATION Fieldbus Devices
120
Set a FOUNDATION Fieldbus Device to be a Link Master or Basic Device
120
Simulate a Live Device
121
View the Device Descriptions on the Trex Unit
121
View the Device Description Information
122
View Help for a Device Parameter
123
Graphics
123
Images
123
Charts
124
Strip/Sweep/Scope Chart
124
Horizontal Bar Charts
125
Vertical Bar Charts
126
Gauge Charts
127
Graphs
128
Disconnect a Device
129
Chapter 4 Loop Diagnostics Application
131
Open or Close the Loop Diagnostics Application
132
Loop Diagnostics Screen
132
View the Connection Diagram as a Full-Screen Image
135
Powering Transmitters or Positioners from Loop Diagnostics
135
Voltage and Current Measurements in Loop Diagnostics
137
Wiring Diagrams for the Loop Diagnostics Application
138
Power a 2-Wire Transmitter
144
Power a 2-Wire Transmitter and Measure Analog Output
145
Power a Positioner
147
Stroke a Valve
148
Settings for Controlling Current
149
Change the Values for the Quick Buttons
149
Change the Scale for the up and down Arrow Keys
150
Set the Duration to Change the Current
151
Loop Checks
151
Measure Voltage on an Externally-Powered Loop
153
Measure the Control System Output
153
Simulate a Transmitter on an Externally-Powered Loop for a Loop Check
154
Simulate a Transmitter on an Unpowered Loop for a Loop Check
155
Chapter 5 Fieldbus Diagnostics Application
157
Open or Close the Fieldbus Diagnostics Application
158
Fieldbus Diagnostics Overview Screen
158
GOOD, BAD, and CHECK Measurements in Fieldbus Diagnostics
161
Wiring Diagrams for the Fieldbus Diagnostics Application
163
Power a FOUNDATION Fieldbus Device
165
Connect to an Externally-Powered Fieldbus Segment
166
Measure the DC Voltage, Noise, and the Fieldbus Signal
167
Details Screen
168
View the Live Measurement Values in Fieldbus Diagnostics
169
View Help for a Measurement
169
Noise Spectrum
170
View a Spectrum of the Noise Measurement
173
Settings
174
View or Hide the Minimum, Maximum, and Average Values for a Measurement
175
View or Hide the Device Tags When Online
175
Set the Number of Measurements to Average
175
Set the Range of Values for the GOOD and BAD Status
176
Reset the Fieldbus Diagnostics Settings to the Default Values
176
Saving Measurements to a Log File
176
Log File Overview
177
Enable or Disable Logging
179
Save Measurements to an Existing Log File
180
Transfer a Fieldbus Diagnostics Log File from the Trex Unit to a PC
181
Troubleshooting Fieldbus Diagnostics
182
Appendix A Troubleshooting
187
Troubleshoot HART Communication
187
HART Loops
189
A.1.1 HART Loops
189
Troubleshoot Fieldbus Communication
190
Appendix B Technical Specifications
191
Physical Specifications
191
Communication Module Specifications
192
Processor, Memory, Operating System Specifications
194
Environmental Specifications
194
Intrinsically Safe Electrical Parameters
195
Power Module Specifications
196
AC Adapter Specifications
196
Appendix C Product Certifications
199
Appendix D Wireless/Spectrum Approvals
201
Glossary
203
Index
207
