Emerson AMS Trex User Manual

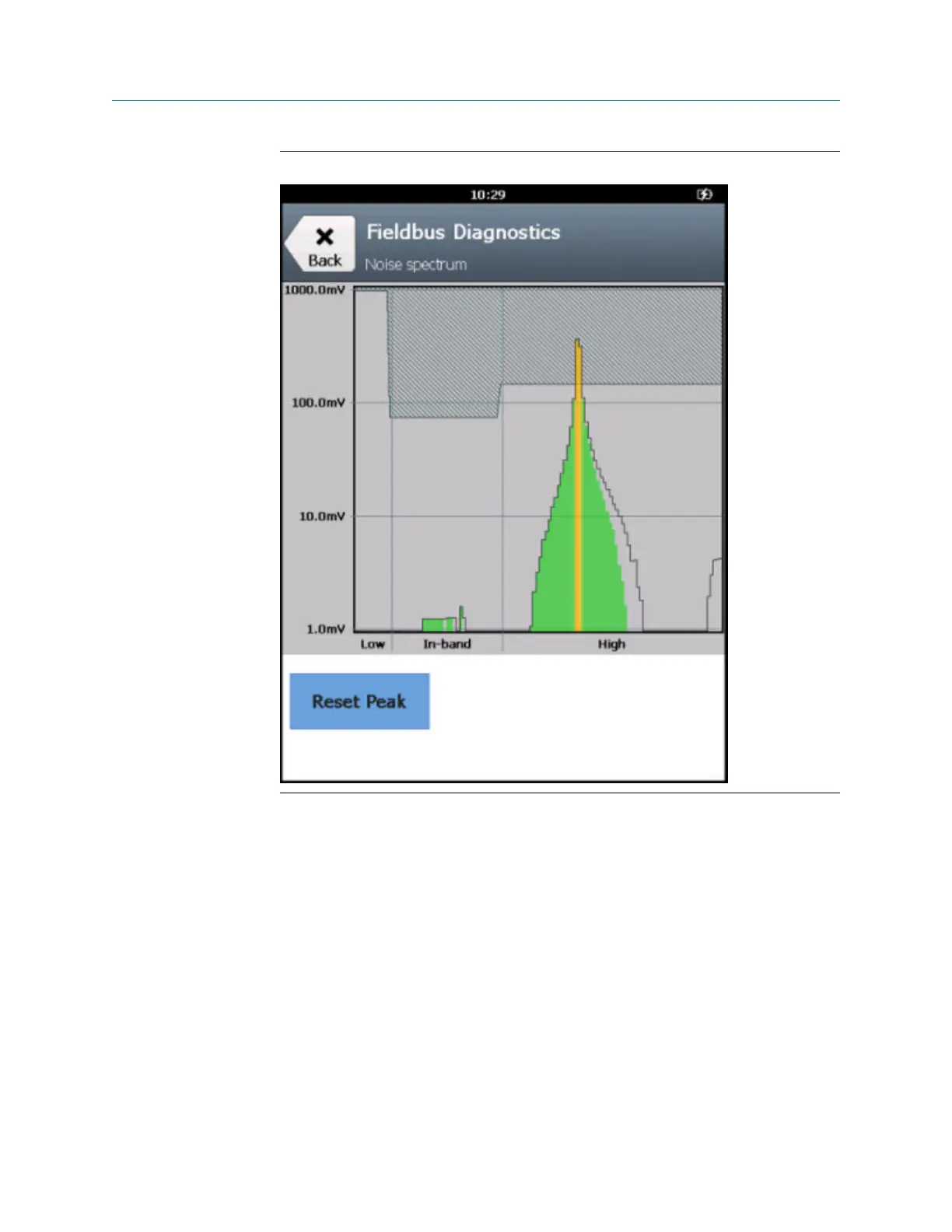

Example of noise spectrumFigure 5-9:
3. If necessary, tap Reset Peak to clear the peak on the spectrum.
5.12 Settings
Within the Fieldbus Diagnostics application, you can change the following settings:
• View or hide the minimum, maximum, and average values for each measurement.
• View or hide the host and device tags.
• Set the number of measurements to average.
• Set the minimum and maximum acceptable values for each type of measurement.
This defines the range of values for the measurements labeled GOOD, BAD, and
CHECK on the Fieldbus Diagnostics Overview screen.
• Reset all settings in the application to the default values.
Fieldbus Diagnostics application
166 User Guide
