Section 8: Connector Base Card

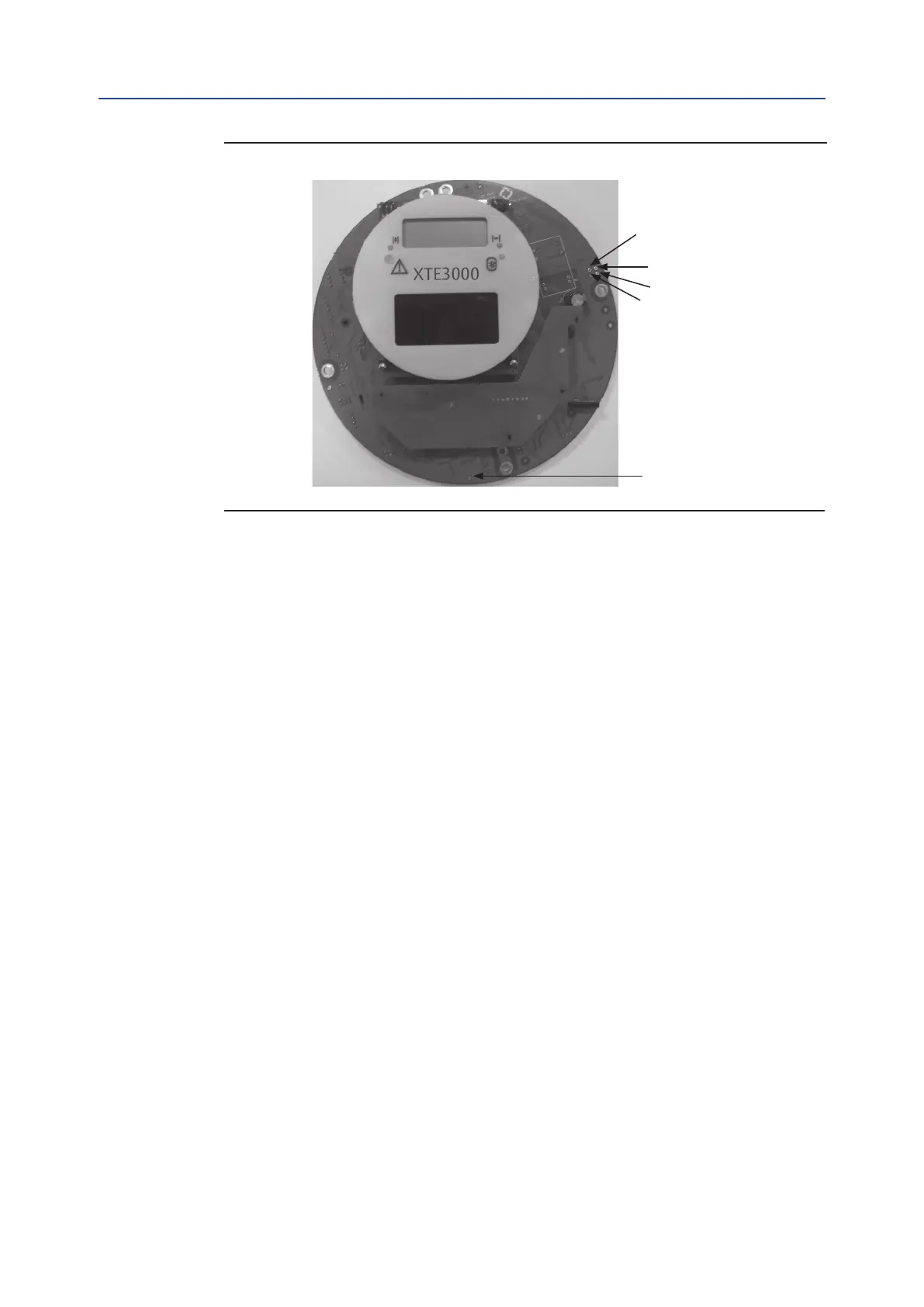

Connector Base Card
Figure 10
TP1
TP3
TP7
TP2
TP4
Test Points:
• TP1: 0 Vm
• TP2: 3.3 Vh8
• TP3: 13 Vm
• TP4: 12 Vm (in case of power supply by DC/DC converter)
• TP7: 5 Vm
