Model 3415/3416/3417 Dual Configuration Gas Ultrasonic Meter co-located meter heads
can be configured to share flow data to improve meter diagnostics. Data sharing can be
setup via Ethernet between the two co-located transmitter heads. Meters will share
measurement data and provide comparison for SOS and Meter flow velocity.

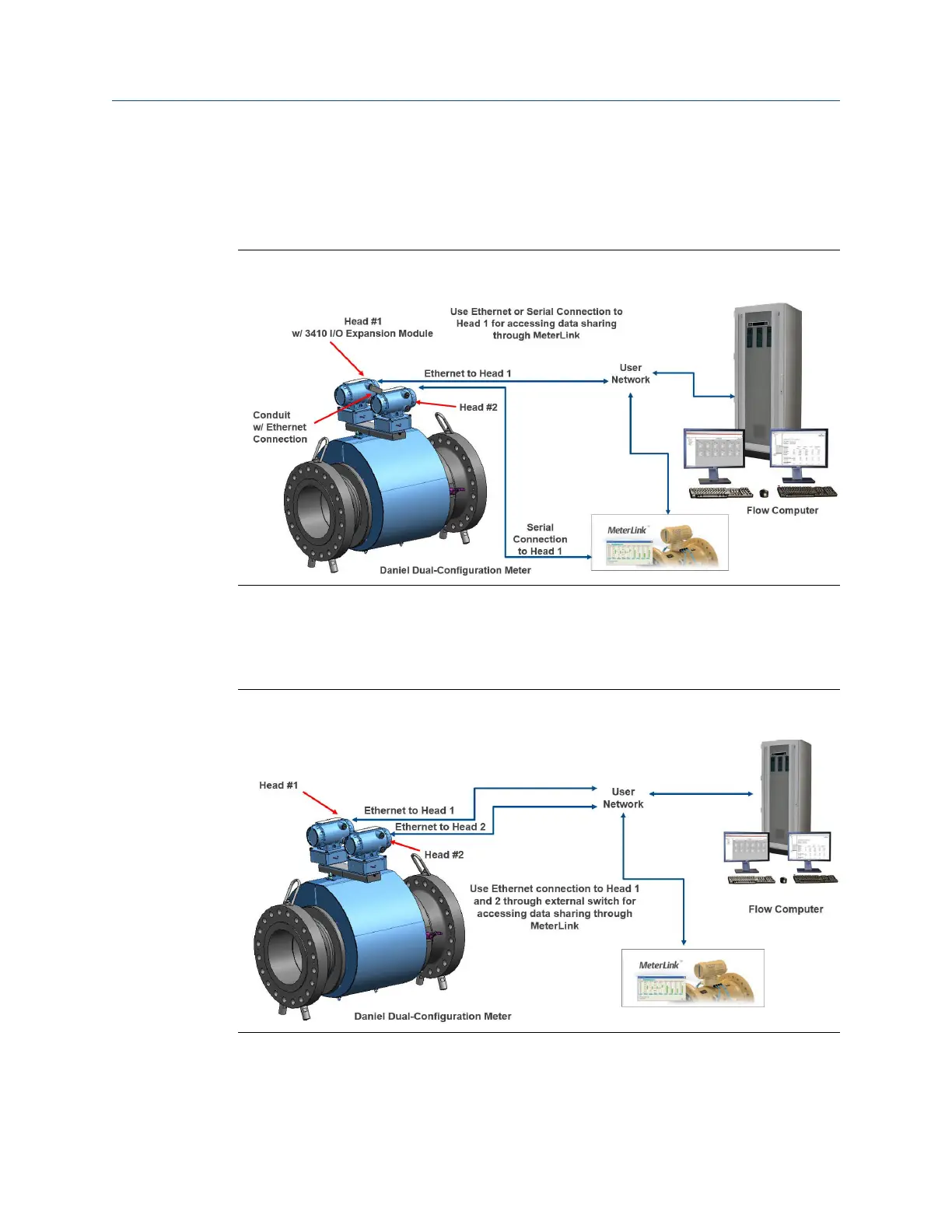

Dual configuration meter data sharing connections with Expansion I/O
Module
Figure 1-4:
Daniel Model 3415/16/17 Dual Configuration Meters can be connected to customer
infrastructure via single Ethernet or Serial connection when Expansion I/O Module is
installed and ethernet connection wired locally between Head 1 and Head 2.
Dual configuration meter data sharing connections without Expansion
I/O Module
Figure 1-5:
Introduction
Installation manual 9
