Daniel Model 3415/16/17 Dual Configuration Meters can be connected to customer
infrastructure through separate Ethernet connections to each head. Expansion I/O Module
is not required for data sharing. Data sharing connection will occur through the external
user network connection.
Note
Model 3415 does not have the vertical bounce path (see Daniel 3415 description)

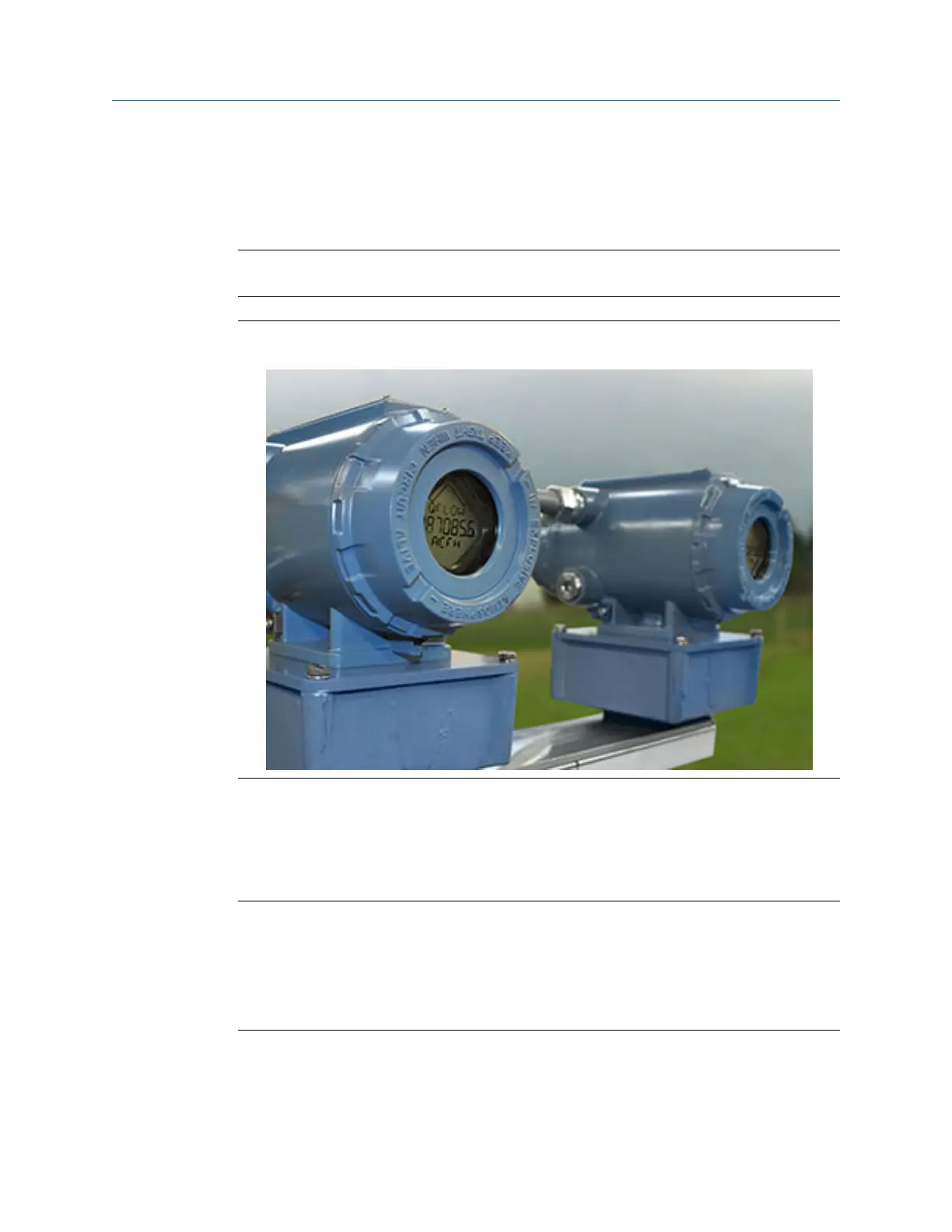

Transmitter electronics enclosure with local display and glass endcapFigure 1-6:
All Daniel ultrasonic flow meter's U.L. safety listing is accomplished through the
combination of an explosion-proof transmitter electronics enclosure that houses the CPU
module, Power Supply board, I.S. Barrier board, Backplane board and optional LCD Display
board.
Note
The optional LCD Display requires firmware v1.04 or later and Uboot version, January 31, 2013.
The Base Electronics Enclosure that houses the Acquisition Module. Intrinsically safe transducers and
cable assemblies are designed for Class 1, Division1, Groups C and D areas without need of further
protection when installed in accordance with the field wiring diagram (refer to Daniel drawing
DMC-005324 see Appendix A).
Introduction
10 Gas Ultrasonic Flow Meter
