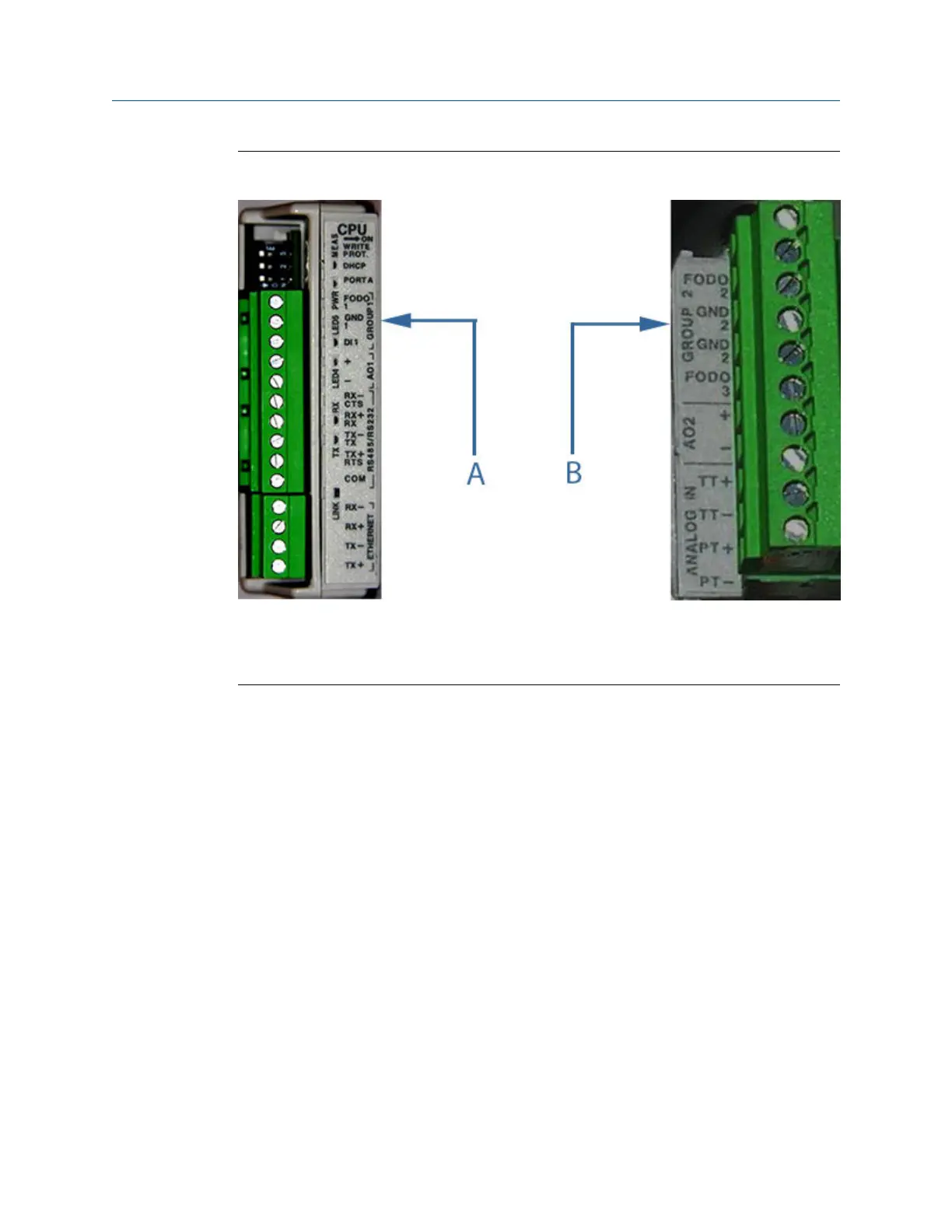

CPU Module - Frequency/Digital outputs common ground - Type 2Figure 3-19:
A. FODO1 and Digital input1 - shared common ground (Group 1)
B. FODO2 and FODO3 - shared common ground (Group 2)
Electrical installation
Installation manual 75
