Emerson Dixell XV300K Series - 12 Operating Parameters Menu - Dry Cooler

1592016130 XV300K EN MASTER r1.1 16.06.2015
XV300K
14/26

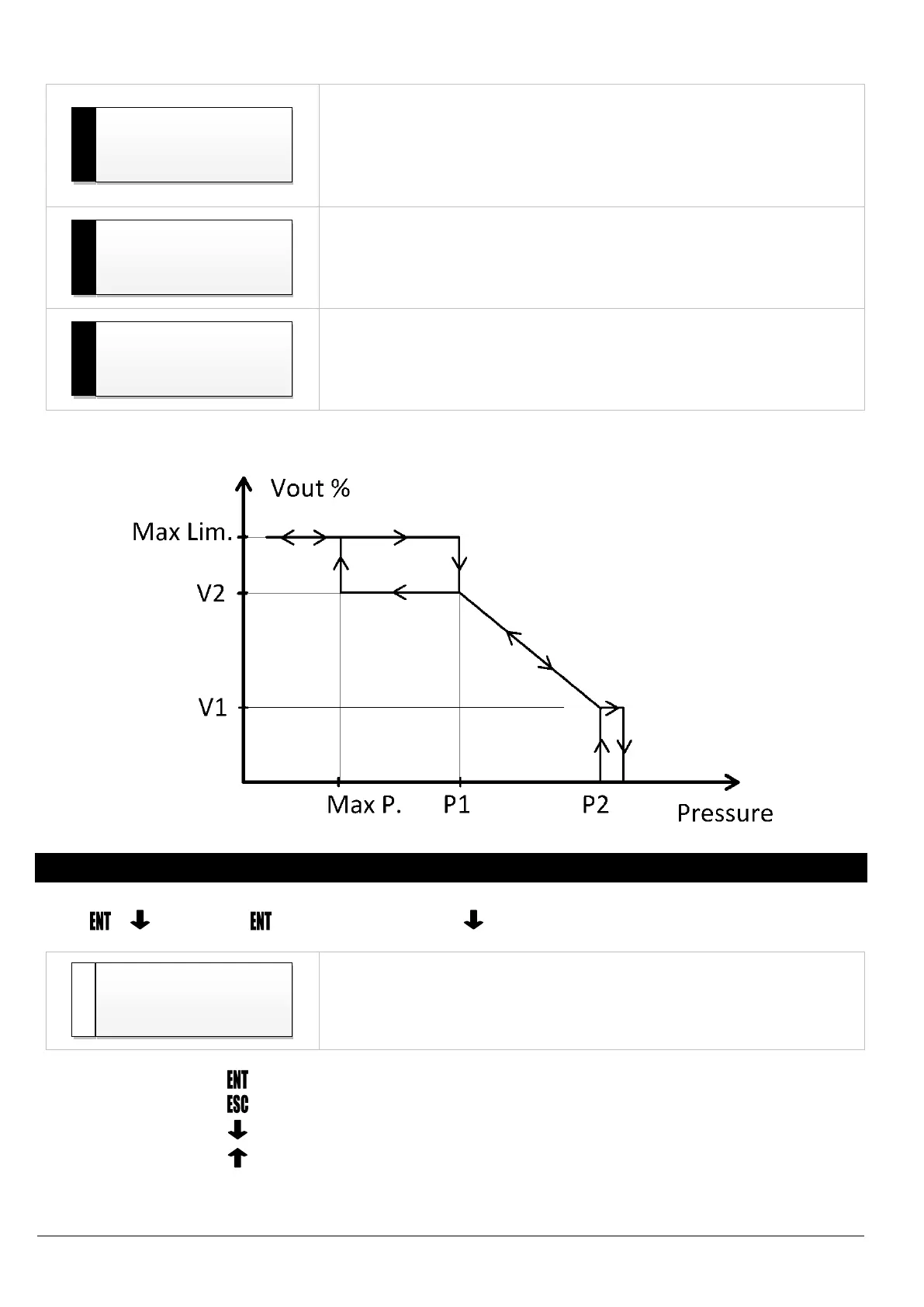

Maximum production pressure, below this the output is at the voltage
MotorMaxLim.
Min. 0 bar
Max. P1
Def. 5 bar
Voltage/speed of the pressure point P2.
Min. MotorMinLim
Max. V2
Def. 20%
Voltage/speed of the pressure point P1.
Min. V1
Max. MotorMaxLim
Def. 90%
12 OPERATING PARAMETERS MENU - DRY COOLER
The operating parameters menus can be accessed from any visualization of the state menu, by pressing together the
keys + (hold the key pressed and press the key ).
The menu windows include the menu name and the corresponding
[identifying code].
The second line of the display is dotted
 Press the key to enter the parameters of the visualized menu;
 Press the key to return to the state menu;
 Press the key to go to the next menu;
 Press the key to return to the previous menu.
DRY COOLER
COOL 1 SET.
-----------------------
[C1S]
CHILLER
90
V2
[IH]
%
CHILLER
20
V1
[IH]
%
CHILLER
5.0
P_MAX
[IH]
bar
