13.2 WORKING PARAMETERS [IC] – SLAVE
Control signal of the Voltage V1/speed point.
Min. 10 %
Max. InMax
Def. 10%
Control signal of the Voltage V2/speed point.
Min. InMin
Max. 100%
Def. 95%
Voltage/speed of signal command IN.MINIM.
Min. MotorMinLim
Max. V2
Def. 20%
Voltage/speed of signal command IN.MAX
Min. V1
Max. MotorMaxLim
Def. 100%

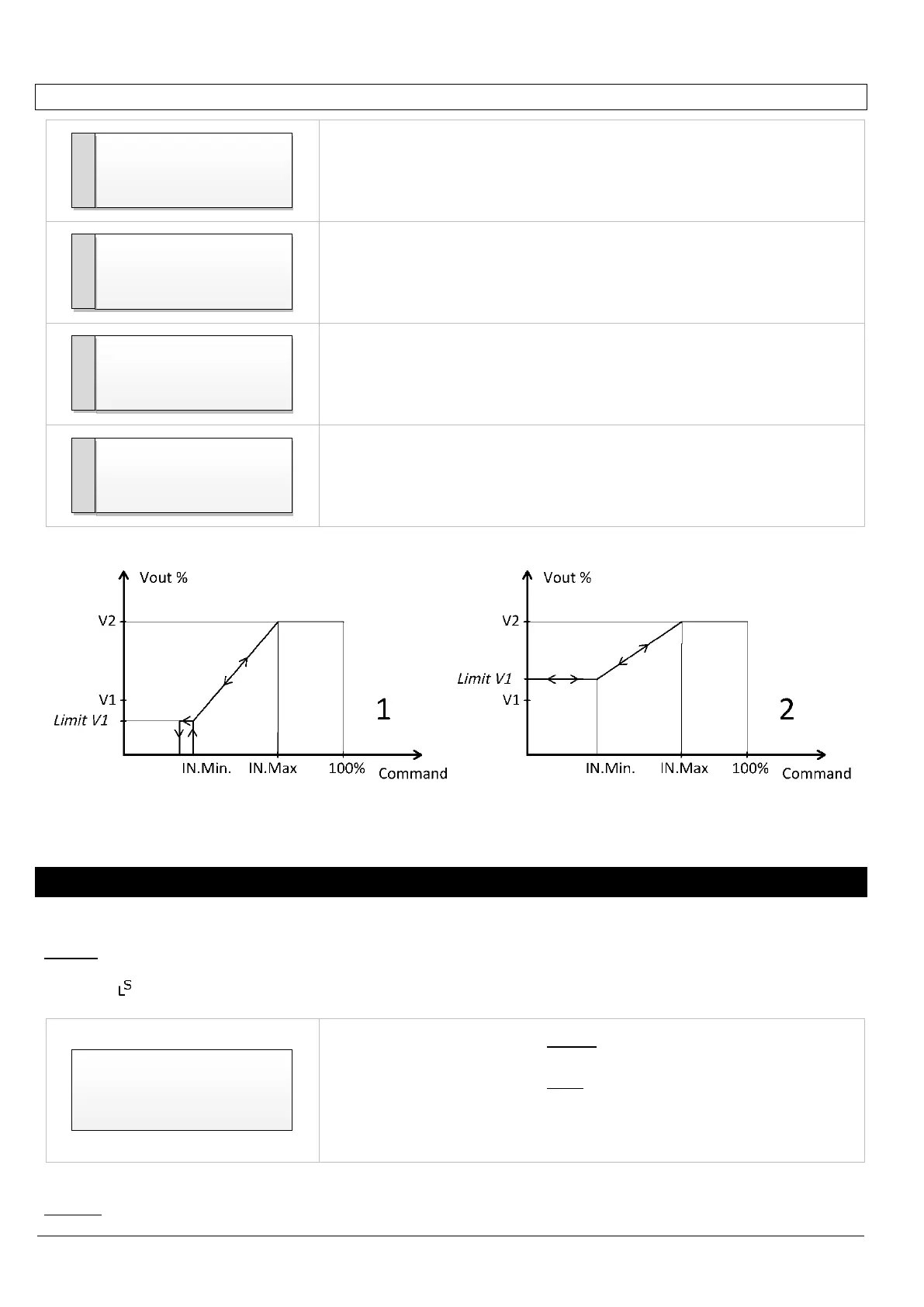

14 SPEED LIMITS
This function is usally used to set a reduced maximum speed in certain operating cycles or a fixed speed detached
from the probe signals.
Caution : With the I2 digital input closed (the clock can be used optionally) this function automatically enables the
speed limit values (V1 and V2 Limit) on all the Master operating cycles (CHILLER and DRY COOLER) and the dispaly
visualizes .
Voltage that replaces V1, in the Master cycle used, when the I2 max
production contact is closed.
Voltage that replaces V1, in the Slave cycle, when V1 LIMIT>V1.
Min. MotorMinLim
Max. V2 Limit
Def. 18%
Caution:
18
V1 LIMIT
[LV]
%
100
V2
[IC]
%
SLAVE
20
V1
[IC]
%
SLAVE
95
MAX INPUT
[IC]
%
SLAVE
10
MIN. INPUT
[IC]
%
SLAVE
