EN Series Drives Manual
WARNING
Do not connect AC power directly into the auxiliary logic
connector. You must wire this connection correctly with
"transformer isolated" 127 to 373 VDC power. Failure to do so can
cause death, serious injury or equipment damage. Also, use
caution when removing the plastic punch-out tab. AC power must
be disconnected for at least 30 seconds before removing the tab.

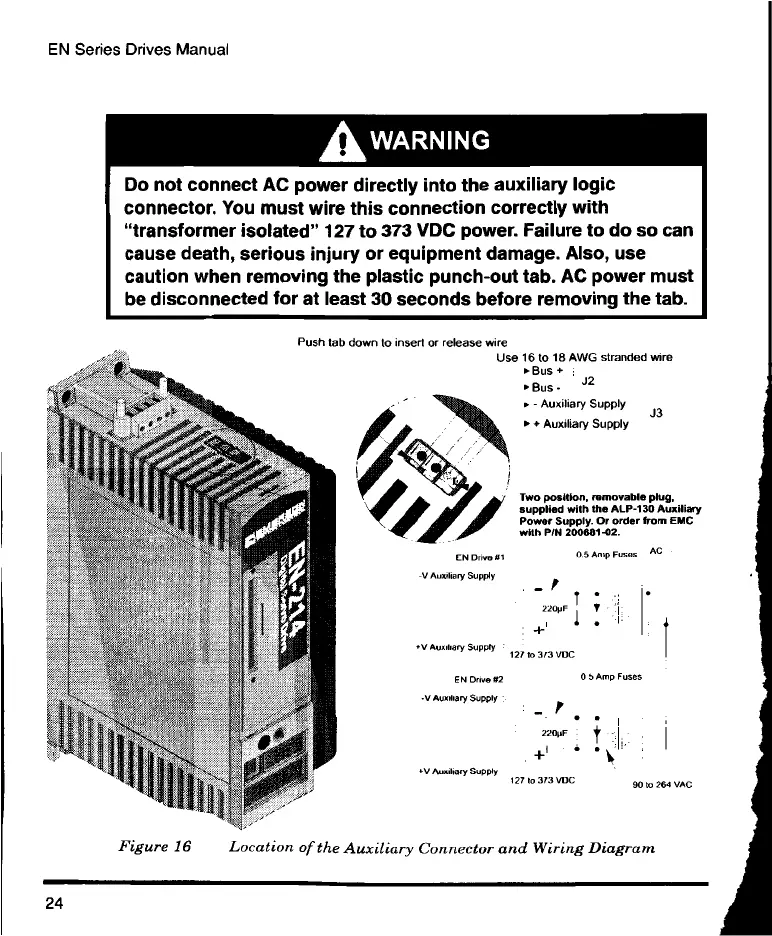

Figure 16
Push tab down to insert or release wire
Use 16 to 18 AWG stranded wire
• Bus :
EN Drive 111
-V Ameliary Supply
CV Aumbary SUM*
EN Drive N2
-V Aleatory Supply
CV Auxiliary Supply
• Bus - J2
• - Auxiliary Supply
J3
• . Auxiliary Supply
Two position, removable plug,
supplied with the ALP-130 Auxiliary
Power Supply. Or order from EMC
with PIN 200681-02.
0.5 Amp Fuses AC
220pF
+
127 to 313 VDC
Amp Fuses
p
2200F
+1 •
127 to 373 VDC
•
90 to 264 VAC
Location of the Auxiliary Connector and Wiring Diagram
24
To Next Page
