Installation
System Power
Voltage
EN Drive Only 15 watts
127 to 373 VDC
(Transformer Isolated, Rectified and
filtered, 90 to 264 VAC)
EN Drive with FM Module 23 watts
....
120 VAC (F1) 230 VAC (F1)
KTK 4/10 KTK
2/10
KTK 5/10 KTK 3/10
KIK
6/10

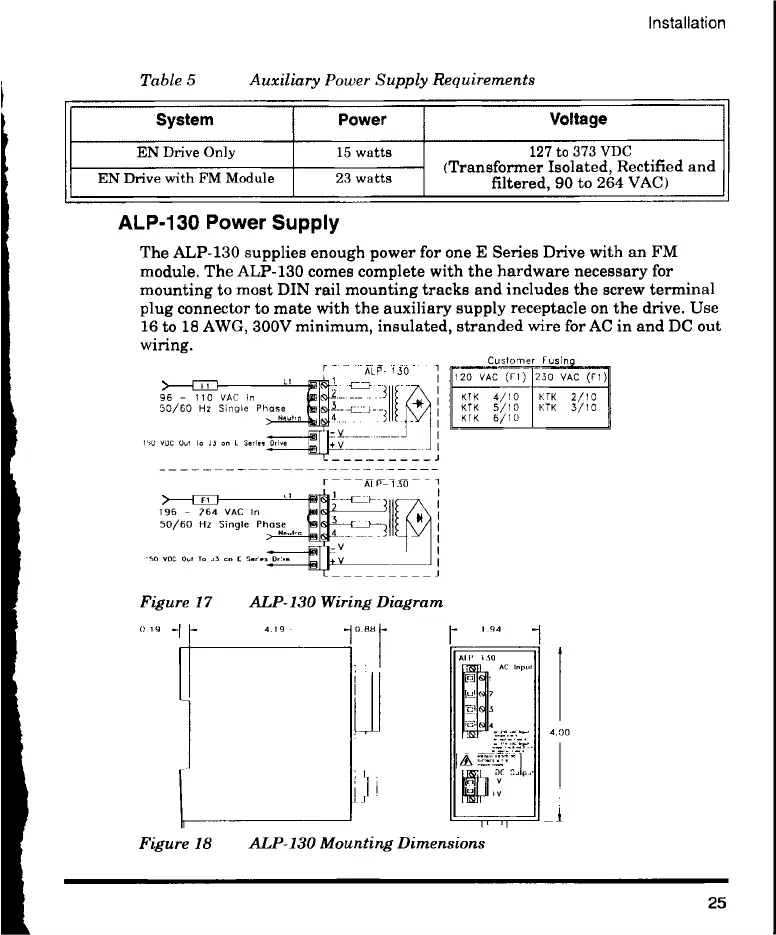

Table 5
Auxiliary Power Supply Requirements
ALP-130 Power Supply
The ALP-130 supplies enough power for one E Series Drive with an FM
module. The ALP-130 comes complete with the hardware necessary for
mounting to most DIN rail mounting tracks and includes the screw terminal
plug connector to mate with the auxiliary supply receptacle on the drive. Use
16 to 18 AWG, 300V minimum, insulated, stranded wire for AC in and DC out
wiring.
1
96 - 110 VAC H
50/60 Hz Single Phase
150 VDC Out lo JD on L
196 - 264 VAC In
50/60 Hz Single Phase
vDC OL.I in L3 nn L Sores ID
Figure 17
0.19 ...,
AI P-130
ALP-130 Wir ng Diagram
Custorne Fusin
0..r 94
4.19 -
Figure 18 ALP-130 Mounting Dimensions
