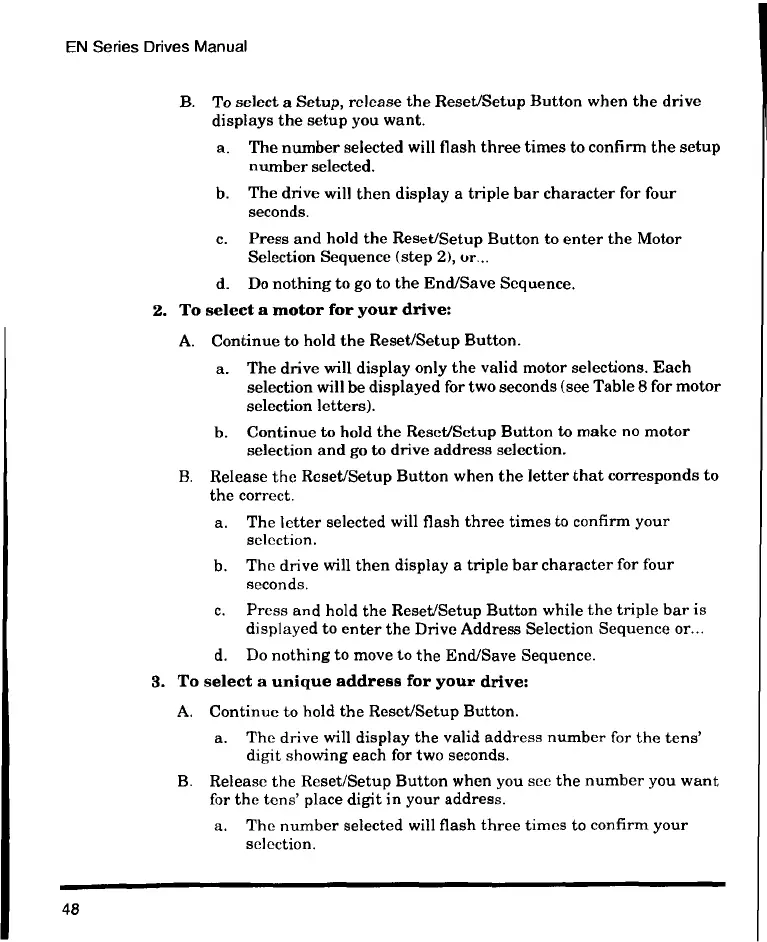

EN Series Drives Manual
B. To select a Setup, release the Reset/Setup Button when the drive
displays the setup you want.
a. The number selected will flash three times to confirm the setup
number selected.
b. The drive will then display a triple bar character for four
seconds.
c. Press and hold the Reset/Setup Button to enter the Motor
Selection Sequence (step 2), or...
d. Do nothing to go to the End/Save Sequence.
2. To select a motor for your drive:
A. Continue to hold the Reset/Setup Button.
a. The drive will display only the valid motor selections. Each
selection will be displayed for two seconds (see Table 8 for motor
selection letters).
b. Continue to hold the Reset/Setup Button to make no motor
selection and go to drive address selection.
B. Release the Reset/Setup Button when the letter that corresponds to
the correct.
a. The letter selected will flash three times to confirm your
selection.
b. The drive will then display a triple bar character for four
seconds.
c. Press and hold the Reset/Setup Button while the triple bar is
displayed to enter the Drive Address Selection Sequence or...
d. Do nothing to move to the End/Save Sequence.
3. To select a unique address for your drive:
A. Continue to hold the Reset/Setup Button.
a. The drive will display the valid address number for the tens'
digit showing each for two seconds.
B. Release the Reset/Setup Button when you see the number you want
for the tens' place digit in your address.
a. The number selected will flash three times to confirm your
selection.
48
