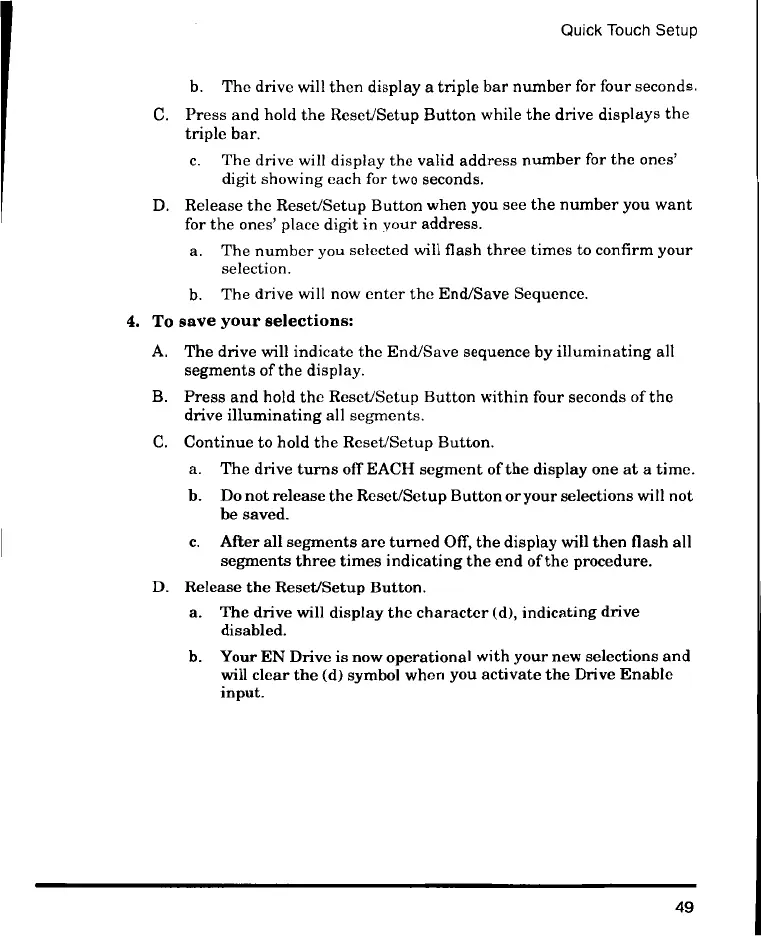

Quick Touch Setup
b. The drive will then display a triple bar number for four seconds.
C. Press and hold the Reset/Setup Button while the drive displays the
triple bar.
c. The drive will display the valid address number for the ones'
digit showing each for two seconds.
D. Release the Reset/Setup Button when you see the number you want
for the ones' place digit in your address.
a. The number you selected will flash three times to confirm your
selection.
b. The drive will now enter the End/Save Sequence.
4. To save your selections:
A. The drive will indicate the End/Save sequence by illuminating all
segments of the display.
B. Press and hold the Reset/Setup Button within four seconds of the
drive illuminating all segments.
C. Continue to hold the Reset/Setup Button.
a. The drive turns off EACH segment of the display one at a time.
b. Do not release the Reset/Setup Button or your selections will not
be saved.
c. After all segments are turned Off, the display will then flash all
segments three times indicating the end of the procedure.
D. Release the Reset/Setup Button.
a. The drive will display the character (d), indicating drive
disabled.
b. Your EN Drive is now operational with your new selections and
will clear the (d) symbol when you activate the Drive Enable
input.
49
