Emerson E Series User Manual

EN Series Drives Manual
Drive
Weight
lb (kg)
EN-204
6.4 (2.9)
EN-208
7,7 (3.5)
EN-214
8.9 (4.0)
Motor
Weight
lb (kg)
MGE-205 3.0(1.36)
MGE-208
4.0 (1.8)
MGE-316
8,3 (3.8)
MGE/M-340 14.6 (6.6)
MGE/M-455
18.5 (8.4)
MGE1M-490
27.0(12.3)
MGE/M-4120 38,0 (17.3)
Motor
Model
Max Radial
Load (lb.)
Max. Axial
Load (lb.)
MGE-205 20
15
MGE-208 20
15
MGE-316 40
25
MGM..340 40
25
MGE/M 455 100
50
MGE/M 490 100
50
MGE/M -4120 100
50

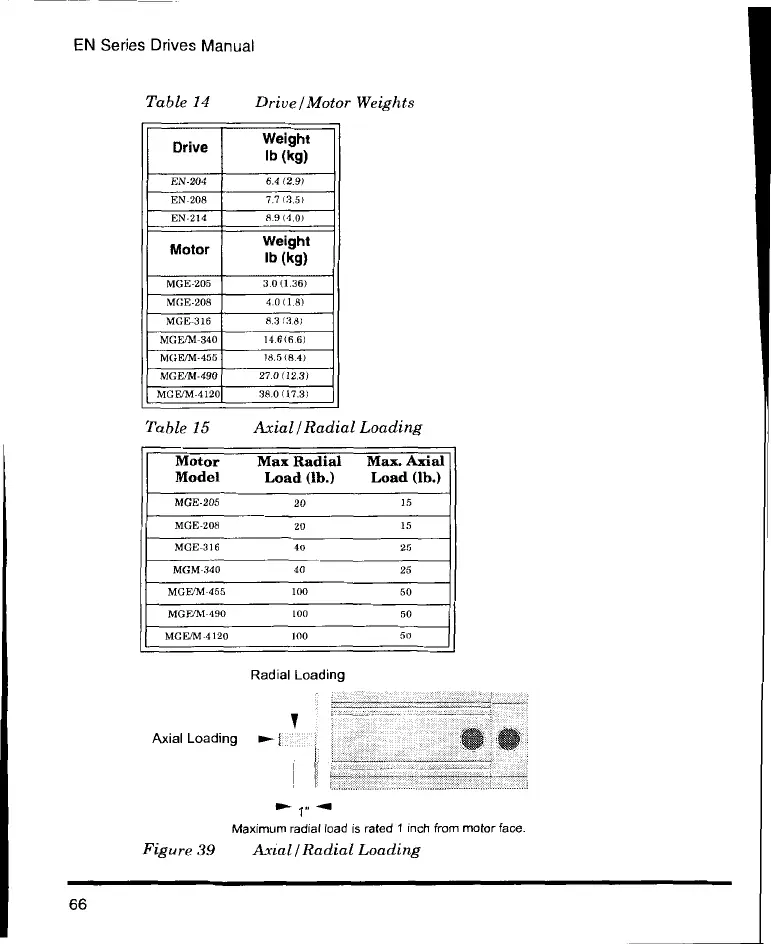

Table 14 Drive Motor Weights
Table 15
Axial Radial Loading
Radial Loading
Axial Loading
Maximum radial load is rated 1 inch from motor face.
Figure 39 Axial Radial Loading
